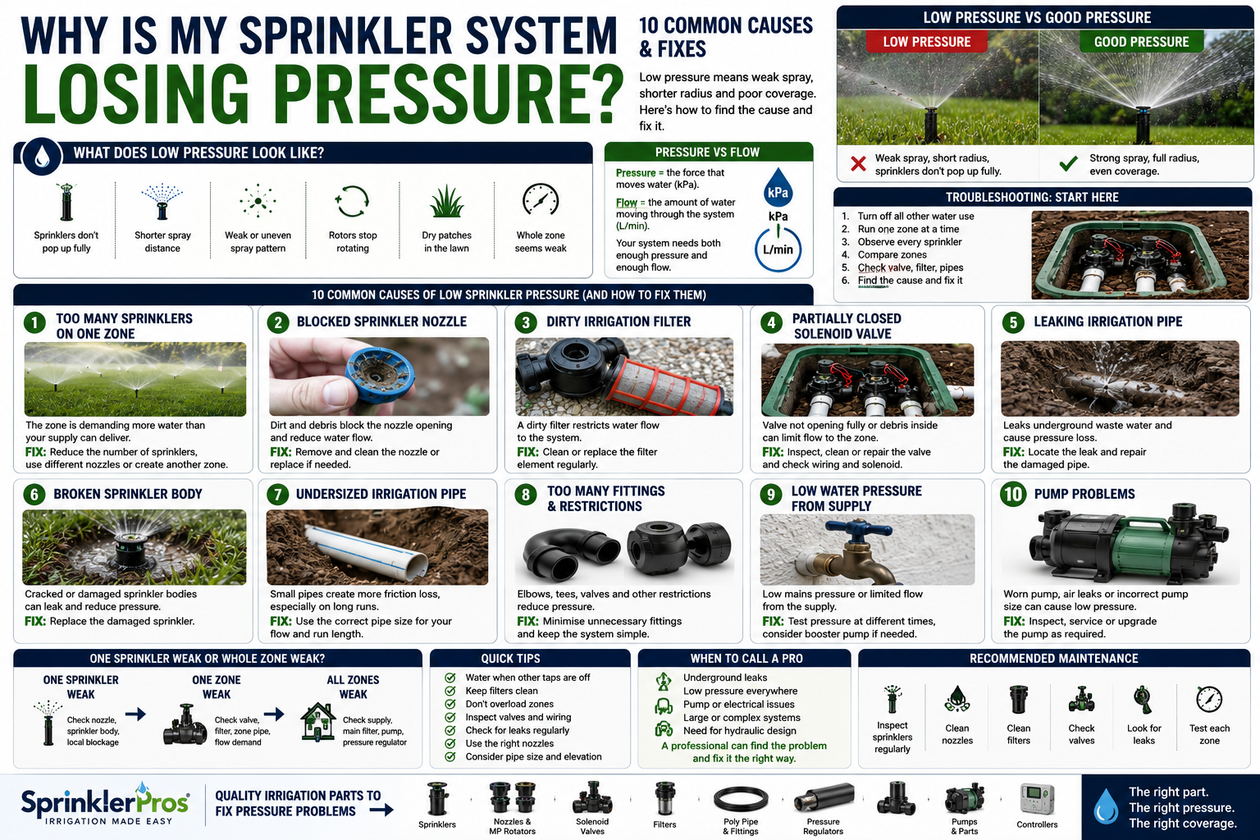

Why Is My Sprinkler System Losing Pressure? 10 Common Causes & Fixes

Is your sprinkler system suddenly spraying weaker than normal?

Are your pop-up sprinklers barely rising?

Has the water coverage become smaller?

Or are some sprinklers working properly while others have almost no pressure?

Low pressure is one of the most common irrigation problems homeowners experience.

But the cause isn’t always the sprinkler itself.

Low pressure can come from:

  • Too many sprinklers on one zone
  • Blocked sprinkler nozzles
  • Dirty filters
  • A faulty solenoid valve
  • Undersized pipe
  • Long pipe runs
  • Leaking pipes
  • Low mains pressure
  • Pump problems
  • Incorrect system design

The good news is that many sprinkler pressure problems can be diagnosed without replacing the entire irrigation system.

In this guide, we’ll explain why sprinkler systems lose pressure, how to identify the cause and what you can do to fix it.

What Does Low Sprinkler Pressure Look Like?

A sprinkler system with insufficient pressure may show several symptoms.

You might notice:

Pop-up sprinklers don’t rise properly

The sprinkler body may only partially pop up.

Sprinklers spray a shorter distance

A sprinkler that normally reaches 5 metres may only reach 2–3 metres.

Weak spray pattern

The water may look uneven or weak.

Some sprinklers work better than others

One sprinkler may look normal while another is barely operating.

Rotary sprinklers stop rotating

Rotors and rotary nozzles can struggle when operating pressure is insufficient.

Dry patches appear

Reduced radius can create gaps in coverage.

The entire zone becomes weak

If every sprinkler in the zone is affected, the problem may be upstream.

How Sprinkler Pressure Works

A sprinkler system needs sufficient pressure to operate correctly.

The basic path is:

Water source

↓

Main pipe

↓

Valve

↓

Zone pipe

↓

Sprinkler

↓

Nozzle

Every part of this system can contribute to pressure loss.

For example:

Water source → 400 kPa

By the time water reaches the sprinkler, pressure may be lower because of:

  • Pipe friction
  • Fittings
  • Valves
  • Filters
  • Elevation
  • Flow demand

This is why pressure at the water source isn’t necessarily the same as pressure at the sprinkler.

Pressure vs Flow: What’s the Difference?

This is important.

Pressure and flow are not the same thing.

Pressure

Pressure describes the force available to move the water through the irrigation system.

It is commonly measured in:

kPa

Flow

Flow describes how much water is moving through the system.

It is commonly measured in:

L/min

An irrigation system needs both sufficient pressure and sufficient flow.

You can have:

Good pressure but insufficient flow

or:

Good available flow but inadequate operating pressure

Understanding both helps diagnose irrigation problems.

How Much Pressure Does a Sprinkler Need?

There is no single pressure that works for every sprinkler.

Different products have different operating requirements.

Traditional spray sprinklers, rotary nozzles and rotors can all have different performance characteristics.

Always check the manufacturer’s performance specifications for the specific sprinkler and nozzle.

A sprinkler that requires higher operating pressure may not perform correctly on a low-pressure system.

10 Common Causes of Low Sprinkler Pressure

Let’s look at the most common causes.

1. Too Many Sprinklers on One Zone

This is one of the most common causes of low pressure.

Imagine your water supply can provide:

30 L/min

But your irrigation zone contains sprinklers requiring:

40 L/min

The system is asking for more water than the supply can provide.

The result can be:

  • Reduced pressure
  • Shorter sprinkler radius
  • Weak spray
  • Poor coverage

Example

Suppose you have:

6 sprinklers

and each uses:

6 L/min

Total demand:

6 × 6 = 36 L/min

If your available flow is only:

25 L/min

the zone is overloaded.

How to Fix It

You may need to:

  • Reduce the number of sprinklers in the zone
  • Create another irrigation zone
  • Use different nozzles
  • Reduce individual sprinkler flow where appropriate
  • Increase available supply capacity
  • Redesign the zone

Don’t simply increase the controller’s watering time.

More runtime won’t fix an overloaded zone.

2. Blocked Sprinkler Nozzle

A blocked nozzle can make an individual sprinkler appear to have low pressure.

Debris can enter irrigation systems during:

  • Installation
  • Pipe repairs
  • Maintenance
  • Construction
  • Normal operation

Small particles can block the nozzle opening.

Symptoms

You may notice:

  • Weak spray
  • Uneven spray pattern
  • Reduced radius
  • Water coming out in an unusual direction

How to Fix a Blocked Nozzle

Turn off the irrigation system.

Remove the nozzle according to the manufacturer’s instructions.

Inspect it for:

  • Dirt
  • Sand
  • Plastic debris
  • Organic material

Clean or replace the nozzle as appropriate.

Then reinstall it and test the sprinkler.

If only one sprinkler is weak while the rest of the zone is normal, a blocked nozzle is one of the first things worth checking.

3. Dirty Irrigation Filter

Filters can become restricted as they collect debris.

A dirty filter can reduce water flow to downstream irrigation equipment.

This is particularly important in systems using:

  • Drip irrigation
  • Fine nozzles
  • Recycled water
  • Tank water
  • Bore water
  • Other water sources containing particles

Symptoms

You might notice:

  • Multiple sprinklers becoming weak
  • Reduced flow
  • Poor dripline performance
  • Pressure dropping downstream of the filter

How to Fix a Dirty Filter

Turn off the water supply.

Remove and inspect the filter according to the manufacturer’s instructions.

Clean or replace the filter element if required.

Then reinstall it and test the system.

A filter should also be maintained according to the manufacturer’s recommended maintenance schedule.

4. Partially Closed Solenoid Valve

Your irrigation valve controls the flow of water into a zone.

If the valve isn’t opening correctly, the zone may receive insufficient flow.

Possible causes include:

  • Valve problem
  • Solenoid problem
  • Debris
  • Flow-control adjustment
  • Damaged diaphragm
  • Electrical problem

Symptoms

The entire zone may have weak pressure.

If every sprinkler in that zone is weak but other zones work normally, inspect the zone valve.

How to Check the Valve

First check whether the controller is activating the correct zone.

Then check:

  • Valve operation
  • Wiring
  • Solenoid
  • Manual bleed mechanism
  • Flow-control setting
  • Valve body

Some valves have flow-control features that can restrict flow if incorrectly adjusted.

Always follow the valve manufacturer’s instructions.

5. Leaking Irrigation Pipe

A damaged underground pipe can cause a significant loss of water.

Possible causes include:

  • Tree roots
  • Digging
  • Ground movement
  • Age
  • Poor installation
  • Accidental damage
  • Failed fittings

Signs of a Possible Underground Leak

Look for:

  • Wet areas
  • Unusually green grass
  • Muddy soil
  • Water pooling
  • Soggy areas
  • Unexpected water bills
  • Low pressure across a zone

If one part of your lawn remains unusually wet while the sprinkler system is running, investigate further.

How to Find an Underground Irrigation Leak

Start by identifying which zone is affected.

Run the zone briefly.

Look for:

  • Water appearing where it shouldn’t
  • Wet soil
  • Water bubbling from the ground
  • Unusual water flow

If the leak isn’t visible, professional leak detection may be required.

Avoid digging randomly across the lawn.

6. Leaking Sprinkler or Broken Sprinkler Body

Sometimes the problem isn’t underground pipe.

A damaged sprinkler body can leak water.

You may see:

  • Water pooling around the sprinkler
  • Water bubbling from the ground
  • Weak spray
  • Water continuing to flow after the zone turns off

A damaged pop-up sprinkler body may need to be replaced.

What Causes Sprinkler Bodies to Break?

Common causes include:

  • Lawn mowers
  • Vehicles
  • Foot traffic
  • Ground movement
  • Age
  • Physical impact

If a sprinkler is located too high above the lawn, it is also more vulnerable to damage.

7. Undersized Irrigation Pipe

Pipe size matters.

Imagine a large irrigation zone requiring substantial flow.

If the pipe is too small, water has to move through a restricted pathway.

This can create greater friction losses.

The result may be:

Higher pressure near the source

but:

Lower pressure at the sprinklers.

Why Long Pipe Runs Make This Worse

A short pipe run and a long pipe run don’t behave identically.

For example:

System A

10 m pipe run

System B

80 m pipe run

The longer pipe run can experience greater friction losses.

This means the sprinklers at the end of the system may receive less pressure.

Pipe sizing should therefore be considered when designing the entire irrigation system.

8. Too Many Fittings and Restrictions

Every component in the water path can contribute to pressure loss.

These can include:

  • Elbows
  • Tees
  • Reducers
  • Filters
  • Valves
  • Backflow devices
  • Pressure regulators
  • Other restrictions

This doesn’t mean you should avoid fittings.

It means they should be considered when designing the hydraulic system.

A complicated pipe layout can create more pressure loss than a simple, appropriately sized system.

9. Low Water Pressure From the Supply

Sometimes your irrigation system isn’t the problem.

The property’s water supply may simply have insufficient pressure or flow for the irrigation system.

This can happen because of:

  • Local supply conditions
  • Pressure-reducing devices
  • Household demand
  • Plumbing restrictions
  • Shared water use
  • Tank or pump limitations

Test at Different Times

If your sprinkler system is weak only at certain times, compare the available water pressure when:

No household water is being used

versus:

Multiple taps or appliances are operating.

If irrigation performance changes significantly, the issue may be related to available supply rather than the sprinklers themselves.

10. Pump Problems

Some irrigation systems use pumps.

A pump may supply water from:

  • Rainwater tanks
  • Storage tanks
  • Bore systems
  • Dams
  • Other water sources

If the pump isn’t operating correctly, sprinkler pressure can drop.

Possible causes include:

  • Pump wear
  • Electrical problems
  • Blocked intake
  • Incorrect pump selection
  • Air entering the system
  • Low water level
  • Pump-control problems

Pump systems require additional troubleshooting compared with a standard mains-fed irrigation system.

One Sprinkler Weak vs Entire Zone Weak

This is one of the easiest ways to narrow down the problem.

Only One Sprinkler Is Weak

Check:

  • Nozzle
  • Sprinkler body
  • Local pipe connection
  • Blockage
  • Local damage

Several Sprinklers Are Weak

Check:

  • Zone pipe
  • Valve
  • Filter
  • Flow demand
  • Pressure

Entire Zone Is Weak

Check:

  • Solenoid valve
  • Zone flow
  • Supply pressure
  • Pipe size
  • Valve operation

Every Zone Is Weak

Check:

  • Main water supply
  • Pump
  • Main filter
  • Pressure regulator
  • Main pipe
  • Water pressure

This simple process can save you a lot of time.

How to Test Your Sprinkler System

Before replacing components, test the system systematically.

Step 1 — Turn off all other water use

Turn off:

  • Taps
  • Washing machine
  • Other irrigation zones
  • Other significant water users

Step 2 — Run one irrigation zone

Don’t test multiple zones simultaneously.

Step 3 — Observe every sprinkler

Check:

  • Pop-up height
  • Spray pattern
  • Radius
  • Rotation
  • Leaks

Step 4 — Compare sprinklers

Is one weaker than the others?

Step 5 — Compare zones

Does another zone operate normally?

Step 6 — Check the valve

If the entire zone is weak, inspect the valve.

Step 7 — Check filters

Look for restrictions.

Step 8 — Check for leaks

Inspect visible pipework and the surrounding ground.

How to Measure Water Pressure

A pressure gauge can be connected to an appropriate water outlet or test point.

Record the pressure when:

System is off

This gives you static pressure.

Then measure while:

Irrigation is operating

This gives you an indication of operating pressure under flow.

The difference can be useful when diagnosing pressure problems.

For accurate system design, pressure should ideally be assessed at relevant points in the irrigation system rather than relying only on a measurement at the property’s main water connection.

Static Pressure vs Dynamic Pressure

Static pressure

Pressure when water isn’t flowing.

Dynamic pressure

Pressure while water is flowing.

This distinction matters.

You might measure:

400 kPa static pressure

and assume:

“My sprinkler system has 400 kPa.”

But once the system starts flowing, pressure may be significantly lower.

That’s why irrigation performance should be evaluated under operating conditions.

Why Your Sprinklers Work Better With Only One Head Running

If one sprinkler looks great but the entire zone becomes weak when several sprinklers operate, your system may have insufficient flow capacity.

For example:

One sprinkler

Excellent coverage.

Four sprinklers

Weak coverage.

This strongly suggests that total zone demand may be exceeding the available supply.

The solution could involve:

  • Fewer sprinklers per zone
  • Lower-flow nozzles
  • Larger pipe
  • Additional zone
  • Different sprinkler technology

Can Changing the Nozzle Fix Low Pressure?

Sometimes.

A lower-flow nozzle can reduce the water demand of an individual sprinkler.

For example, if your existing nozzle requires too much flow for the available supply, a lower-flow option may improve system performance.

But be careful.

You must still maintain appropriate:

  • Radius
  • Arc
  • Distribution
  • Precipitation rate
  • Coverage

Don’t simply install the smallest nozzle available.

Can MP Rotators Help With Low-Flow Systems?

Rotary nozzles such as Hunter MP Rotators can have different flow and application characteristics compared with conventional spray nozzles.

They may be useful in appropriate low-flow or water-conscious applications.

However, changing to MP Rotators isn’t a universal solution to low pressure.

The entire zone still needs to be designed around:

  • Required radius
  • Operating pressure
  • Flow
  • Spacing
  • Precipitation rate

Why Changing to a Smaller Nozzle Isn’t Always the Answer

Imagine you have poor coverage because sprinklers are too far apart.

Installing a smaller nozzle may reduce flow but also reduce radius.

You could end up with:

Lower pressure demand

but:

Even worse coverage.

Always identify the cause before changing equipment.

How Sprinkler Spacing Affects Pressure

Sprinkler spacing doesn’t directly create pressure loss in the same way pipe does, but it determines how many sprinklers you need to operate simultaneously.

Poor layout can force you to use:

Too many sprinklers per zone

which increases total flow demand.

Good layout can help you design zones around the available water supply.

What About Elevation?

Elevation can significantly affect irrigation pressure.

If sprinklers are installed uphill from the water source, the system needs to overcome the elevation difference.

As elevation increases:

Available pressure decreases.

This is particularly important for:

  • Sloping properties
  • Large gardens
  • Multi-level landscapes
  • Pump systems

If your sprinklers are significantly higher than the valve or water source, elevation should be included in the hydraulic design.

Why Hillside Irrigation Can Be Difficult

A sloped property may have:

Low point

↓

Valve

↓

Uphill sprinklers

The sprinklers at the top can receive lower pressure.

Meanwhile, sprinklers lower down may experience greater pressure.

This can create uneven irrigation.

A proper hydraulic design may require:

  • Pressure regulation
  • Different zones
  • Appropriate sprinkler selection
  • Check valves
  • Flow control

Check Valves and Low-Head Drainage

Some irrigation systems can experience water draining from lower sprinkler heads after a zone shuts down.

This is called low-head drainage.

A check valve can help prevent water from draining through lower sprinklers in appropriate applications.

This isn’t exactly the same as low pressure, but it is an important irrigation-system issue that can sometimes be mistaken for a pressure problem.

Why Your Sprinkler May Spray Mist Instead of Water Streams

If a spray nozzle produces excessive misting, the system may have:

  • Excessive pressure
  • Incorrect nozzle
  • Poor nozzle condition
  • Wind
  • Incorrect sprinkler selection

Don’t assume that more pressure is always better.

Sprinklers are designed to operate within specified pressure ranges.

What Happens When Pressure Is Too High?

High pressure can be just as problematic as low pressure.

It can cause:

  • Misting
  • Poor distribution
  • Overspray
  • Excessive flow
  • Water waste

If pressure is consistently too high, pressure regulation may be appropriate.

Low Pressure vs High Pressure

Low pressure

Symptoms:

  • Weak spray
  • Reduced radius
  • Poor rotation
  • Sprinklers don’t pop up fully

High pressure

Symptoms:

  • Fine mist
  • Excessive spray
  • Poor distribution
  • Water drifting in wind

Both conditions can reduce irrigation efficiency.

How to Fix a Low-Pressure Sprinkler System

The correct fix depends on the cause.

If the nozzle is blocked:

Clean or replace it.

If the valve is restricted:

Inspect and service the valve.

If the filter is dirty:

Clean or replace it.

If there are too many sprinklers:

Redesign the zone.

If the pipe is too small:

Consider a properly sized pipe configuration.

If the supply is inadequate:

Consider system redesign or an appropriate water-supply solution.

If the pump is faulty:

Service or replace the pump as appropriate.

If pressure is too high:

Consider suitable pressure regulation.

Don’t Immediately Replace Your Sprinkler System

Low pressure doesn’t necessarily mean the entire system needs to be replaced.

Start with diagnosis.

Ask:

Is one sprinkler affected?

or:

Is the whole zone affected?

Then:

Does another zone work normally?

Then:

Is the water supply normal?

This process can often identify the problem without replacing unnecessary components.

A Simple Troubleshooting Flowchart

Use this process:

Are all sprinklers weak?

↓

YES

Check:

  • Water supply
  • Main filter
  • Pump
  • Main pressure
  • Controller

NO

↓

Is the entire zone weak?

YES

Check:

  • Solenoid valve
  • Zone pipe
  • Zone flow
  • Valve settings
  • Pressure

NO

↓

Is one sprinkler weak?

YES

Check:

  • Nozzle
  • Sprinkler body
  • Local blockage
  • Local pipe connection

This simple process can help narrow down the problem quickly.

When Should You Call an Irrigation Professional?

Consider professional assistance if:

  • Underground leaks can’t be located
  • Water pressure is extremely low
  • You have a large irrigation system
  • A pump is involved
  • Electrical problems are present
  • The system requires major redesign
  • Multiple zones are failing
  • You need hydraulic calculations
  • Underground services are involved

A professional can test the system and identify the underlying problem rather than simply replacing components.

Preventing Sprinkler Pressure Problems

The best solution is prevention.

Design zones correctly

Don’t overload a valve.

Choose appropriate pipe sizes

Consider flow and pipe length.

Select suitable sprinklers

Match sprinklers to pressure and coverage.

Use appropriate nozzles

Match flow, radius and arc.

Maintain filters

Prevent restrictions.

Inspect valves

Check for leaks and damage.

Monitor pressure

Especially after system modifications.

Check sprinklers regularly

Replace damaged components.

How Often Should You Check Your Irrigation System?

A quick inspection during the irrigation season can catch problems early.

Look for:

  • Broken sprinkler heads
  • Weak spray
  • Leaks
  • Dry patches
  • Water pooling
  • Blocked nozzles
  • Misaligned sprinklers
  • Damaged pipe

Don’t wait until the lawn turns brown before investigating.

Sprinkler Pressure Maintenance Checklist

Use this checklist:

☐ Check water supply

☐ Check operating pressure

☐ Check sprinkler nozzles

☐ Clean filters

☐ Inspect solenoid valves

☐ Check pipework

☐ Look for leaks

☐ Check sprinkler spacing

☐ Check zone flow

☐ Inspect pumps if applicable

☐ Check pressure regulators

☐ Check controller programming

☐ Test each irrigation zone

Frequently Asked Questions

Why is my sprinkler system low pressure?

Common causes include too many sprinklers on one zone, blocked nozzles, dirty filters, valve problems, undersized pipe, leaks or insufficient water supply.

Why are my pop-up sprinklers not popping up?

Low pressure, a blocked sprinkler, damaged sprinkler body or insufficient water flow can prevent a pop-up from rising properly.

Why does one sprinkler have low pressure?

If only one sprinkler is affected, check the nozzle, sprinkler body and local pipe connection for blockages or damage.

Why are all sprinklers in one zone weak?

A problem affecting an entire zone may indicate a valve issue, excessive zone flow, pipe restriction, filter problem or insufficient supply.

Why do my sprinklers work individually but not together?

Your irrigation zone may be demanding more water than your supply can provide.

Can a blocked nozzle cause low pressure?

A blocked nozzle can significantly reduce the performance of an individual sprinkler and may appear to be a pressure problem.

Can a dirty filter reduce sprinkler pressure?

Yes. A restricted filter can reduce downstream flow and pressure.

Can a solenoid valve cause low pressure?

Yes. A valve that isn’t opening correctly or is restricted can reduce flow to the irrigation zone.

Can small irrigation pipe cause low pressure?

Yes. Pipe friction increases as water flows through the system, and long or undersized pipe runs can contribute to pressure loss.

Does a longer pipe reduce sprinkler pressure?

It can. Longer pipe runs generally create greater friction losses, particularly at higher flow rates.

Can too many sprinklers cause low pressure?

Yes. If the combined flow demand of the sprinklers exceeds the available supply, operating pressure and sprinkler performance can drop.

Can I fix low pressure by changing the nozzle?

Sometimes. A lower-flow nozzle may reduce zone demand, but you must ensure the new nozzle still provides appropriate coverage.

Do MP Rotators solve low pressure?

Not automatically. They have different flow and application characteristics from traditional spray nozzles, but the entire irrigation zone still needs to be designed correctly.

How do I increase sprinkler pressure?

First determine why pressure is low. The solution may involve reducing zone demand, fixing restrictions, repairing leaks, correcting pipe sizing or addressing the water supply. Don’t simply increase pressure without identifying the cause.

Final Verdict: Find the Cause Before Replacing the Sprinkler

Low sprinkler pressure can be frustrating, but the sprinkler itself isn’t always the problem.

Start by determining whether the issue affects:

One sprinkler

or:

An entire zone

or:

The entire irrigation system.

Then investigate:

Nozzle

↓

Sprinkler

↓

Valve

↓

Filter

↓

Pipe

↓

Water supply

↓

Pump

This approach makes troubleshooting much easier.

Remember:

Good sprinkler performance requires the right combination of pressure, flow, pipework, valves, nozzles and sprinkler spacing.

If one part of the system isn’t working correctly, the entire zone can suffer.

Find Irrigation Parts at SprinklerPros

If your sprinkler system is experiencing pressure problems, you may need to inspect or replace components such as:

  • Pop-up sprinklers
  • Sprinkler nozzles
  • Hunter MP Rotators
  • Rotors
  • Solenoid valves
  • Irrigation filters
  • Poly pipe
  • Irrigation fittings
  • Pressure regulators
  • Irrigation controllers
  • Pumps and pump components

Before replacing anything, identify the source of the pressure problem.

Replacing a sprinkler won’t fix an undersized pipe.

Replacing a nozzle won’t fix a faulty valve.

Replacing a valve won’t fix an inadequate water supply.

Diagnose the system first, then choose the right component.

A properly designed irrigation system should deliver the right amount of water at the right pressure to every zone.
