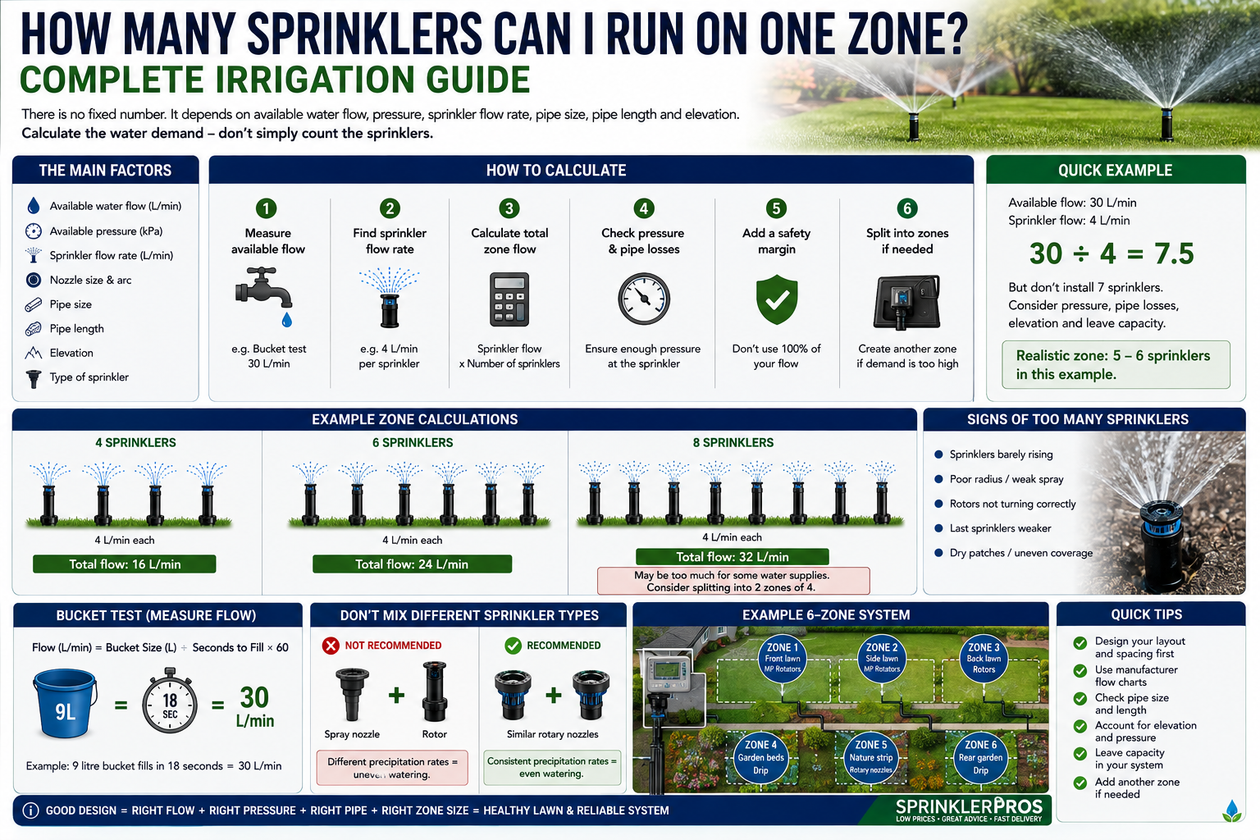

How Many Sprinklers Can I Run on One Zone? Complete Irrigation Guide

One of the most common questions when designing a home irrigation system is:

How many sprinklers can I run on one zone?

Is it:

4 sprinklers?

6 sprinklers?

10 sprinklers?

There is no fixed number.

The number of sprinklers you can run on one irrigation zone depends mainly on:

Available water flow
Available pressure
Sprinkler flow rate
Nozzle size
Pipe size
Pipe length
Elevation
Type of sprinkler

A zone with six low-flow rotary nozzles may work perfectly.

Another zone with six high-flow rotors may require far more water than the property can supply.

The correct way to design an irrigation zone is therefore:

Calculate the water demand — don’t simply count the sprinklers.

This guide explains how to do it.

Quick Answer: How Many Sprinklers Per Zone?

You need two numbers:

1. Available water flow

and

2. Flow required by each sprinkler

For a simple example, imagine your irrigation supply can reliably provide:

30 L/min

and each sprinkler requires:

4 L/min

The basic calculation is:

30 ÷ 4 = 7.5

However, that does NOT automatically mean you should install seven sprinklers.

You still need to account for:

Required operating pressure
Pipe friction loss
Valves
Fittings
Elevation
Design margin

Your available flow should not be treated as the only limit.

What Is an Irrigation Zone?

An irrigation zone is a group of sprinklers or irrigation devices that operate at the same time.

A typical residential system might have:

Zone 1 — Front lawn

Zone 2 — Back lawn

Zone 3 — Side lawn

Zone 4 — Garden beds

The irrigation controller activates one solenoid valve at a time.

When Zone 1 starts:

Controller

↓

Zone 1 solenoid valve opens

↓

Water flows to Zone 1

↓

All sprinklers connected to Zone 1 operate

When the programmed runtime finishes, the controller closes that valve and moves to the next zone.

Why Do Irrigation Systems Have Multiple Zones?

Why not connect every sprinkler to one valve?

Because most residential water supplies cannot provide enough flow to operate an entire property’s irrigation system simultaneously.

Imagine your property has:

20 sprinklers

and each uses:

4 L/min

If they all operate together:

20 × 4 = 80 L/min

Your water supply may not be capable of delivering 80 L/min while maintaining sufficient pressure.

Instead, you could divide them into four zones:

Zone 1 = 5 sprinklers

Zone 2 = 5 sprinklers

Zone 3 = 5 sprinklers

Zone 4 = 5 sprinklers

If each sprinkler uses 4 L/min:

5 × 4 = 20 L/min per zone

The controller then runs the zones separately.

This is one of the main purposes of irrigation zoning.

Flow vs Pressure: Know the Difference

Before calculating your zones, understand the difference between:

Flow

and

Pressure

They are related, but they are not the same thing.

Water Flow

Flow tells you how much water is available over time.

It is commonly measured in:

Litres per minute — L/min

For example:

25 L/min

Water Pressure

Pressure describes the force available to move water through the irrigation system and operate the sprinklers.

In Australia, pressure is commonly measured in:

kilopascals — kPa

For example:

350 kPa

A good sprinkler system needs adequate:

FLOW + PRESSURE

Having one does not guarantee you have enough of the other.

How Do I Measure My Available Water Flow?

For a simple residential check, you can perform a bucket test at a suitable water source.

You need:

A bucket of known volume
Stopwatch
Water source

For example, suppose you use a:

9-litre bucket

and it takes:

18 seconds

to fill.

You can calculate approximate flow using:

Bucket volume ÷ fill time × 60

So:

9 ÷ 18 × 60

30 L/min

Your measured flow is approximately:

30 litres per minute

Bucket Test Formula

Use:

Flow (L/min) = Bucket Size (L) ÷ Seconds to Fill × 60

Another example:

Bucket:

10 litres

Fill time:

24 seconds

Calculation:

10 ÷ 24 × 60

25 L/min

This gives you a useful starting measurement.

However, irrigation design also requires adequate pressure under operating conditions.

Why Pressure Matters

Suppose your water supply can produce plenty of flow from an open tap.

That does not automatically mean your sprinklers will operate correctly.

Sprinklers are designed to perform within particular pressure ranges.

If pressure at the sprinkler is too low, you may experience:

Reduced radius
Poor spray pattern
Weak rotation
Uneven distribution
Pop-ups not rising fully

This is why you cannot design an irrigation zone using the bucket test alone.

Static Pressure vs Dynamic Pressure

This is important.

Static Pressure

Static pressure is measured when water is not flowing through the irrigation system.

For example:

500 kPa static pressure

Dynamic Pressure

Dynamic pressure is the pressure available while water is flowing.

This is often more useful when evaluating actual irrigation performance.

When several sprinklers operate simultaneously, pressure can drop.

The system needs enough pressure remaining while the zone is operating.

Find the Flow Rate of Each Sprinkler

Once you understand your water supply, determine how much water each sprinkler needs.

Manufacturers provide performance charts showing:

Pressure
Radius
Flow
Nozzle
Arc

For example, a sprinkler might require:

3 L/min

while another configuration of the same product might require:

6 L/min

This is why saying:

“I have Hunter sprinklers”

isn’t enough information.

You need to know:

Which sprinkler?

Which nozzle?

Which arc?

At what pressure?

Example: Four Sprinklers

Imagine your design has four sprinklers.

Each sprinkler uses:

4 L/min

Total flow:

4 × 4

16 L/min

Your zone therefore requires approximately:

16 L/min

before considering the wider hydraulic design.

Example: Six Sprinklers

Suppose you have:

6 sprinklers

using:

4 L/min each

Total:

6 × 4

24 L/min

If your water supply can comfortably provide the required flow while maintaining the necessary pressure, the zone may work.

If your supply cannot, you may need to split it.

Example: Eight Sprinklers

Imagine:

8 sprinklers

using:

4 L/min each

Total:

32 L/min

If your irrigation supply cannot support 32 L/min at the required operating pressure, putting all eight sprinklers on one zone is a bad idea.

Instead, you might create:

Zone 1 = 4 sprinklers

Zone 2 = 4 sprinklers

Each zone would then require:

16 L/min

assuming the same 4 L/min per sprinkler.

Don’t Use 100% of Your Measured Flow

It is generally wise not to design a system right at the absolute limit of a simple flow measurement.

Real-world conditions can change.

For example:

Other taps may be used
Household appliances may draw water
Supply pressure may fluctuate
Pipe restrictions may exist
Filters can create losses
Valves create losses

Leave appropriate capacity rather than designing a system with no margin.

How Many Hunter MP Rotators Per Zone?

There is no fixed number.

Hunter MP Rotator flow varies according to:

MP model
Arc
Pressure
Radius

For example:

MP1000

and

MP3000

do not necessarily have the same flow requirements.

A 90-degree MP Rotator also does not necessarily use the same flow as a 360-degree version.

So instead of asking:

“How many MP Rotators can I run?”

calculate:

MP1 flow + MP2 flow + MP3 flow + MP4 flow…

Then compare the total with your available system capacity.

Example MP Rotator Zone

Imagine your selected MP Rotators require:

Sprinkler 1 = 2 L/min

Sprinkler 2 = 2 L/min

Sprinkler 3 = 4 L/min

Sprinkler 4 = 4 L/min

Sprinkler 5 = 3 L/min

Total:

15 L/min

Your zone needs to support approximately:

15 L/min

at the required operating pressure.

The exact values should always come from the manufacturer’s performance data for the actual nozzle configuration.

How Many Rain Bird R-VAN Sprinklers Per Zone?

The same principle applies to Rain Bird R-VAN.

Flow varies depending on:

R-VAN model
Arc
Radius
Operating pressure

Do not assume every R-VAN uses the same amount of water.

Calculate each nozzle and add the flows together.

How Many Rotors Can I Run on One Zone?

Rotors can require substantially different flows depending on their nozzle configuration.

Products such as:

Hunter PGP

Rain Bird 5000 Series

can be configured with different nozzles.

A larger nozzle generally changes the flow requirement.

So if you’re installing rotors:

Select the rotor.
Select the nozzle.
Determine operating pressure.
Find the manufacturer’s flow data.
Add all rotor flows.
Compare the total with your available water supply.

Rotary Nozzles vs Rotors

This distinction matters.

Hunter MP Rotator

is not the same type of sprinkler as a:

Hunter PGP rotor

Likewise:

Rain Bird R-VAN

is different from a:

Rain Bird 5000 Series rotor

These products can have very different:

Flow requirements
Radius
Pressure requirements
Precipitation rates

Never assume that six sprinklers of one type require the same water as six sprinklers of another type.

Pipe Size Also Limits Your Irrigation Zone

Even if your water source can provide sufficient flow, your pipe needs to carry that water efficiently.

Imagine your supply can provide:

35 L/min

But you try to push a large amount of that water through:

a long run of undersized pipe

The pipe can create excessive friction loss.

That can reduce the pressure available at the sprinklers.

This is why zone design must consider both:

Water supply

and

Pipe size

Why 25mm Poly Pipe Is Common for Sprinkler Zones

25mm poly is commonly useful in residential sprinkler installations because its larger diameter can help reduce friction loss compared with smaller pipe at the same flow.

However:

25mm does not automatically mean your zone can run a certain number of sprinklers.

You still need to calculate:

Flow
Pressure
Distance
Sprinkler requirements

Pipe size is only one part of the design.

Can I Run Sprinklers on 19mm Pipe?

Yes, depending on:

Total flow
Pipe length
Pressure
Sprinkler requirements

19mm can work well for some smaller residential zones.

But as flow and distance increase, moving to a larger pipe may reduce friction losses.

Read our guide:

What Size Irrigation Pipe Do I Need? 13mm vs 19mm vs 25mm Poly Pipe

for a detailed explanation.

Pipe Length Matters

Imagine two irrigation systems.

System A

20 L/min through:

10 metres of pipe

System B

20 L/min through:

80 metres of the same pipe

System B will accumulate more friction loss because the water travels much farther.

Therefore:

Flow alone cannot determine how many sprinklers your zone can support.

You also need to know how far the water travels.

Elevation Matters Too

Suppose your sprinklers are significantly uphill from the water source.

The system needs to overcome the elevation difference.

That reduces the pressure available at the sprinklers.

So an irrigation zone that works perfectly on flat ground may perform differently on a steep property.

You need to account for:

Source pressure

minus

Pipe friction

minus

Valve and fitting losses

minus

Elevation effects

Pressure remaining at the sprinkler

Don’t Mix Sprinklers With Very Different Precipitation Rates

Another important zoning rule:

Sprinklers on the same zone should ideally have compatible precipitation characteristics.

For example, avoid casually mixing:

Traditional spray nozzles

with:

Rotary nozzles

on the same zone.

Why?

Because they may apply water at very different rates.

One part of the lawn could receive too much water while another receives too little.

Can I Mix MP Rotators and R-VAN on One Zone?

Even though both are rotary nozzles, don’t assume they should automatically be mixed.

Different product families can have different:

Precipitation rates
Flow characteristics
Pressure requirements

It is usually easier to achieve consistent irrigation when compatible products with suitable precipitation characteristics are grouped together.

Can I Mix Rotors and Spray Heads?

Generally, avoid mixing irrigation devices with significantly different precipitation rates on the same zone.

For example:

Large rotor

traditional spray nozzle

may result in very different water application rates.

Even if both products operate hydraulically, the lawn may not receive water evenly.

Group Similar Areas Together

Good irrigation zoning isn’t only about water flow.

It is also about the landscape.

For example:

Zone 1

Sunny front lawn

Zone 2

Shaded back lawn

Zone 3

Garden beds

Zone 4

Drip irrigation

This allows each area to have a watering schedule suited to its needs.

Don’t Put Lawn and Garden Beds on the Same Zone

Where possible, separate them.

A lawn may require a completely different watering schedule from:

Shrubs
Garden beds
Native plants
Drip irrigation

Keeping them separate gives you much better control.

How Many Zones Do I Need?

The number of zones depends on:

Property size
Available flow
Pressure
Sprinkler demand
Different landscape areas
Sun exposure
Irrigation type

A small property might need:

2–4 zones

while a larger property may require:

6, 8, 10 or more zones.

There is no ideal number.

Example: Designing a 6-Zone System

Imagine a property has:

Zone 1

Front lawn — MP Rotators

Zone 2

Side lawn — MP Rotators

Zone 3

Back lawn — rotors

Zone 4

Garden beds — drip

Zone 5

Nature strip — rotary nozzles

Zone 6

Rear garden — drip

This is often much better than trying to combine everything into two enormous zones.

Each area can receive the correct:

Runtime
Watering frequency
Irrigation type

Your Controller Needs Enough Stations

If you design:

6 irrigation zones

you need a controller capable of operating at least:

6 stations

If you may expand later, consider additional capacity.

For example:

Current system:

6 zones

Potential future system:

8 zones

Buying an expandable or appropriately sized controller can save replacing the controller later.

What Is an Irrigation Station?

A station is essentially a controller output used to operate an irrigation zone.

Typically:

Station 1 → Valve 1 → Zone 1

Station 2 → Valve 2 → Zone 2

Station 3 → Valve 3 → Zone 3

and so on.

Therefore, if you have:

8 independently controlled zones

you normally need controller capacity for those eight stations.

How Many Sprinklers Can a 4-Station Controller Run?

A 4-station controller doesn’t mean:

4 sprinklers

It means the controller can independently control:

up to four irrigation stations/zones

under a conventional setup.

Each zone may contain several sprinklers, depending on its hydraulic design.

For example:

Station 1 → 5 sprinklers

Station 2 → 6 sprinklers

Station 3 → 4 sprinklers

Station 4 → drip irrigation

The controller determines how many zones you can control.

The water supply determines how much irrigation can operate within each zone.

How Many Sprinklers Can a 6-Station Controller Run?

Again, there is no fixed sprinkler count.

A 6-station controller controls six zones.

If each zone had five sprinklers:

6 × 5 = 30 sprinklers

But another system might have:

3 sprinklers per zone

or:

8 low-flow sprinklers per zone

The controller’s station count does not determine sprinkler capacity.

Signs You Have Too Many Sprinklers on One Zone

Common symptoms include:

Sprinklers barely rising
Poor sprinkler radius
Weak spray
Rotors not turning correctly
MP Rotators performing poorly
Last sprinklers weaker than first sprinklers
Dry patches
Uneven lawn coverage

If the sprinklers work better when some heads are manually blocked or removed, excessive zone demand may be part of the problem.

How Do You Fix Too Many Sprinklers on One Zone?

There are several possible solutions.

Option 1 — Split the zone

Often the best solution.

For example:

8 sprinklers

becomes:

Zone A = 4

Zone B = 4

Option 2 — Review the nozzles

Different nozzles have different flow rates.

A better nozzle selection may reduce zone demand while still providing suitable coverage.

Option 3 — Review pipe sizing

If friction loss is excessive, larger pipe may improve the hydraulic design.

Option 4 — Check pressure

Make sure the source can provide the required operating pressure.

Option 5 — Check for restrictions

Inspect:

Filters
Valves
Pipes
Fittings
Backflow devices

for restrictions or faults.

Don’t Reduce Sprinkler Flow Just to Add More Heads

This is an important design mistake.

Suppose the lawn requires sprinklers to reach:

5 metres

Don’t reduce every sprinkler’s radius to:

3 metres

just so you can fit more sprinklers onto one zone.

Sprinklers need proper spacing.

Poor spacing creates:

Dry patches
Uneven coverage
Overwatering
Poor distribution

Design the sprinkler layout first.

Then create enough zones to support it.

Head-to-Head Sprinkler Coverage

For good lawn irrigation, sprinklers are commonly designed around:

head-to-head coverage

This means one sprinkler’s water reaches approximately the next sprinkler.

For example:

If the sprinkler radius is:

5 metres

sprinklers may be positioned approximately:

5 metres apart

depending on the product, pattern and site conditions.

Don’t stretch sprinkler spacing just to reduce the number of sprinklers.

Example: 30 L/min Water Supply

Let’s make this practical.

Available flow:

30 L/min

Proposed sprinklers:

5 L/min each

Basic theoretical calculation:

30 ÷ 5 = 6 sprinklers

But designing at the absolute limit leaves little room for:

Pressure changes
Pipe friction
Other water use
Valve losses

Depending on the complete hydraulic design, fewer sprinklers may be appropriate.

Example: 25 L/min Water Supply

Available:

25 L/min

Sprinklers:

4 L/min each

Five sprinklers require:

20 L/min

Six require:

24 L/min

Although six appears mathematically possible based on flow alone, the system still needs enough pressure after all losses.

This is why:

25 ÷ 4

is only the beginning of the calculation.

Example: Large Lawn With 12 Sprinklers

Suppose your lawn requires:

12 sprinklers

Each uses:

4 L/min

Total if all operate together:

48 L/min

Your water supply cannot reliably support that demand.

Instead, divide them into:

Zone 1

6 sprinklers = 24 L/min

Zone 2

6 sprinklers = 24 L/min

Now the controller operates each group separately.

The lawn still receives full coverage without requiring 48 L/min simultaneously.

Example: 20 Sprinkler Property

Imagine your entire property needs:

20 sprinklers

That does NOT mean you need enough water to run all 20 simultaneously.

You could design:

Zone 1 = 5 sprinklers

Zone 2 = 5 sprinklers

Zone 3 = 5 sprinklers

Zone 4 = 5 sprinklers

If each group stays within the available hydraulic capacity, the controller can run them sequentially.

This is exactly what irrigation controllers and solenoid valves are designed to do.

How to Calculate Sprinklers Per Zone Step by Step

Step 1 — Measure available flow

Determine your approximate water supply in L/min.

Step 2 — Measure pressure

Check the pressure available to the irrigation system.

Step 3 — Design sprinkler positions

Use proper sprinkler spacing.

Step 4 — Select the sprinkler or nozzle

For example:

Hunter MP Rotator
Rain Bird R-VAN
Hunter PGP
Rain Bird 5000
Spray nozzle

Step 5 — Find each sprinkler’s flow

Use the manufacturer’s performance data.

Step 6 — Add the flows

Calculate the total demand for the proposed zone.

Step 7 — Check pipe size

Make sure the pipe can carry the required flow without excessive friction loss.

Step 8 — Consider distance and elevation

Long runs and uphill installations can reduce available pressure.

Step 9 — Leave suitable capacity

Avoid designing right at the absolute limit.

Step 10 — Split the zone if necessary

If demand is too high, create another zone.

Simple Formula

For a very basic first estimate:

Available Design Flow ÷ Sprinkler Flow = Approximate Maximum Sprinkler Count

For example:

24 L/min ÷ 4 L/min

6 sprinklers

But remember:

This is only an initial flow calculation.

You still need to confirm:

Pressure

Pipe loss

Elevation

Valve losses

Sprinkler requirements

Common Irrigation Zone Mistakes

Mistake 1 — Counting sprinklers instead of calculating flow

Five sprinklers can require more water than eight different sprinklers.

Mistake 2 — Using the full bucket-test result

Leave appropriate design capacity.

Mistake 3 — Ignoring pressure

Flow alone does not tell you whether sprinklers will operate correctly.

Mistake 4 — Using undersized pipe

Excessive friction loss can ruin an otherwise good design.

Mistake 5 — Mixing different sprinkler types

Different precipitation rates can create uneven watering.

Mistake 6 — Putting lawn and drip irrigation together

These areas often need different watering schedules.

Mistake 7 — Stretching sprinkler spacing

Proper coverage matters more than reducing sprinkler count.

Mistake 8 — Buying the controller before designing the zones

Design the irrigation system first, then choose the controller station capacity.

Frequently Asked Questions

How many sprinklers can I run on one zone?

There is no fixed number. Calculate the combined flow of the sprinklers and compare it with the water supply while maintaining sufficient operating pressure.

Can I run 6 sprinklers on one zone?

Possibly. If the combined flow, pressure, pipe sizing and system design support six sprinklers, they can operate together.

Can I run 10 sprinklers on one zone?

Potentially, particularly if they are low-flow sprinklers. But ten higher-flow sprinklers may exceed the water supply. Calculate total flow rather than relying on sprinkler count.

How many MP Rotators can I put on one zone?

It depends on the model, arc, pressure and flow of each MP Rotator. Add their individual flow rates and compare the total with your available system capacity.

How many Rain Bird R-VAN nozzles can I run?

The same calculation applies. Determine the flow of each R-VAN configuration and calculate the total zone demand.

How many rotors can I run per zone?

Rotor flow varies considerably by model and nozzle. Use the manufacturer’s performance chart to calculate the combined demand.

Does bigger pipe allow more sprinklers?

Larger pipe can reduce friction loss and may help a system carry higher flow efficiently, but it cannot increase the amount of water available from the source.

How do I know if I have too many sprinklers on a zone?

Weak sprinklers, reduced radius, poor rotation, incomplete pop-up and uneven coverage can indicate excessive zone demand or another hydraulic problem.

Should every irrigation zone have the same number of sprinklers?

No. Zones should be designed around flow, pressure and landscape requirements.

Can lawn sprinklers and drip irrigation be on the same zone?

It is generally better to separate irrigation types with significantly different watering requirements.

Can I add another sprinkler to my existing zone?

Possibly. First calculate the existing zone flow, the new sprinkler’s flow and whether adequate pressure and hydraulic capacity remain.

How many zones does my irrigation system need?

That depends on available water, sprinkler demand, property layout and different watering requirements.

How Many Sprinklers Per Zone? Final Answer

There is no magic number.

Don’t design an irrigation system by saying:

“I’ll put six sprinklers on every zone.”

Instead calculate:

Available water flow

↓

Sprinkler flow

↓

Total zone demand

↓

Operating pressure

↓

Pipe friction loss

↓

Elevation

↓

Available pressure at the sprinkler

Then determine how many sprinklers can operate properly.

If one zone requires more water than the system can supply:

Don’t compromise sprinkler coverage.

Add another zone.

A properly designed irrigation system with more zones will usually perform far better than a poorly designed system trying to operate too many sprinklers at once.

Shop Sprinkler System Components at SprinklerPros

Once you’ve calculated how many sprinklers each zone can support, you can start selecting the equipment needed for your system.

Depending on your irrigation design, you may need:

Hunter MP Rotators
Rain Bird R-VAN nozzles
Pop-up sprinkler bodies
Gear-drive rotors
Solenoid valves
Irrigation controllers
19mm poly pipe
25mm poly pipe
Poly fittings
Valve boxes
Irrigation cable
Filters
Pressure regulators
Drip irrigation components

Remember:

Design the sprinkler layout first.

Calculate the flow second.

Create the zones third.

Choose the controller and valves after that.

That approach gives you a much better chance of building an irrigation system with strong pressure, even coverage and reliable performance.
