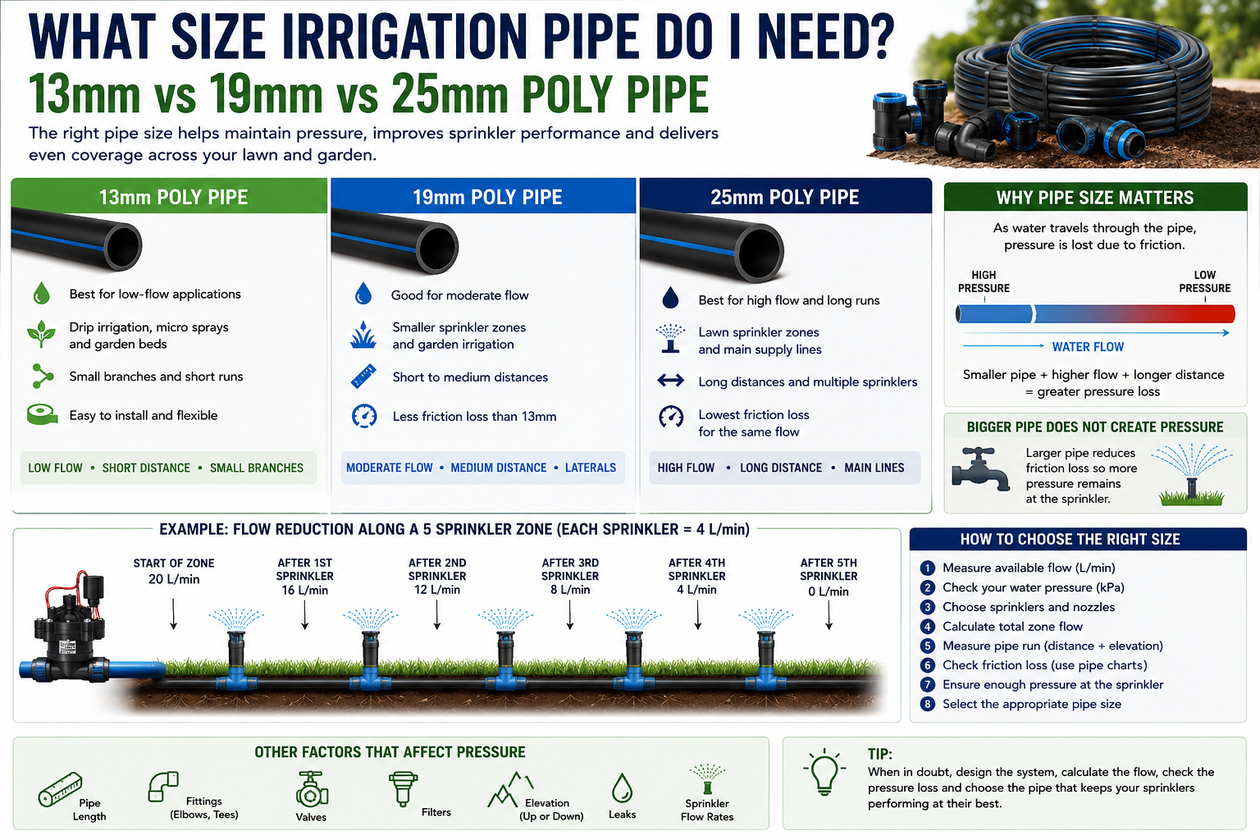

What Size Irrigation Pipe Do I Need? 13mm vs 19mm vs 25mm Poly Pipe
What Size Irrigation Pipe Do I Need? 13mm vs 19mm vs 25mm Poly Pipe
Choosing the right irrigation pipe size is one of the most important parts of designing a reliable sprinkler system.
If the pipe is too small, you can end up with:
* Weak sprinklers
* Low pressure
* Short sprinkler radius
* Poor MP Rotator performance
* Rotors not reaching properly
* Uneven watering
* Dry patches
* The last sprinkler in the zone performing badly
For residential irrigation in Australia, the most common sizes you will usually come across are:
13mm poly pipe
19mm poly pipe
25mm poly pipe
You may also see larger sizes such as 32mm poly pipe for higher-flow or longer-distance systems.
So which irrigation pipe size should you choose?
The answer depends on:
Flow + Distance + Pressure + Elevation + Irrigation Equipment
A small garden drip system may work perfectly with 13mm pipe.
A larger lawn sprinkler zone running several sprinklers over a long distance may be better suited to 25mm or larger pipe.
In this guide, we will explain the difference between 13mm, 19mm and 25mm poly pipe and how to choose the correct size for your irrigation system.
⸻
Quick Answer: 13mm vs 19mm vs 25mm Irrigation Pipe
As a simple starting point:
Pipe Size Common Use
13mm Drip irrigation, micro irrigation, small branches and low-flow applications
19mm Smaller sprinkler zones, garden irrigation and moderate-flow applications
25mm Lawn sprinkler zones, main supply runs, longer distances and higher-flow applications
This is only a general guide.
The correct irrigation pipe size should be chosen based on:
* Total flow in litres per minute
* Pipe length
* Available water pressure
* Sprinkler operating pressure
* Pipe friction loss
* Elevation
* Valve and fitting losses
⸻
Why Does Irrigation Pipe Size Matter?
When water travels through a pipe, pressure is lost because of friction.
This is called:
Friction loss
The amount of pressure lost depends on:
* Pipe diameter
* Internal pipe diameter
* Water flow
* Pipe length
* Number of fittings
* Valves
* Filters
* Other restrictions
A useful rule to remember is:
Higher flow + smaller pipe + longer distance = greater pressure loss.
This is why one pipe size can work perfectly in one garden but perform badly in another.
⸻
What Happens If Irrigation Pipe Is Too Small?
Imagine your water supply has good pressure.
You connect several sprinklers to a long length of small poly pipe.
At the beginning of the system, the pressure looks fine.
But as water travels through the pipe, friction causes pressure loss.
By the time the water reaches the sprinklers, there may not be enough pressure left.
You may notice:
* Pop-up sprinklers not rising properly
* MP Rotators not reaching their expected radius
* Rotors turning slowly
* Weak spray patterns
* Reduced sprinkler throw
* Uneven watering
* The final sprinkler being weaker than the first
The sprinkler may not be faulty at all.
The real problem may be the pipe feeding it.
⸻
Does Larger Irrigation Pipe Increase Water Pressure?
Not exactly.
A larger pipe does not create pressure.
Instead, it can reduce pressure loss.
For example:
Imagine your water source provides:
400 kPa
If your pipe and fittings lose:
140 kPa
you have:
260 kPa
remaining.
If a larger pipe carrying the same flow only loses:
70 kPa
you may have:
330 kPa
remaining.
The larger pipe did not create extra pressure.
It simply helped preserve more of the pressure you already had.
Think of it like this:
Larger pipe = lower friction loss
not:
Larger pipe = higher source pressure
⸻
13mm Poly Pipe
13mm poly pipe is useful for many small irrigation applications.
It is commonly used for:
* Drip irrigation
* Micro irrigation
* Garden beds
* Small branches
* Short low-flow runs
* Individual irrigation connections
Its small size makes it:
* Easy to install
* Flexible
* Affordable
* Useful for smaller systems
However, as flow and distance increase, pressure loss becomes much more important.
⸻
When Should You Use 13mm Pipe?
13mm pipe can be a good choice when:
* Flow demand is low
* Pipe run is short
* You are using drippers
* You are using micro sprays
* You are supplying a small garden bed
* You are running a short branch from a larger main pipe
It is usually not the first choice for carrying a large amount of water over a long distance.
⸻
Is 13mm Pipe Good for Lawn Sprinklers?
It can be used in some low-flow and short-run applications.
But you should not automatically use 13mm pipe for an entire lawn sprinkler zone.
A common mistake is thinking:
“My sprinkler has a small connection, so I should use small pipe everywhere.”
That is not necessarily correct.
For example, you can have:
25mm zone pipe
↓
reducing fitting
↓
smaller sprinkler connection
This is normal irrigation design.
The main pipe carries the water.
The smaller connection simply connects the sprinkler.
⸻
19mm Poly Pipe
19mm poly pipe sits between 13mm and 25mm.
It can be useful for:
* Smaller lawn sprinkler zones
* Garden irrigation
* Moderate-flow applications
* Short-to-medium pipe runs
* Lateral lines
* Branch lines
Compared with 13mm pipe, 19mm generally provides:
* Lower friction loss
* Better flow capacity
* More flexibility for sprinkler zones
⸻
13mm vs 19mm Poly Pipe
If the same amount of water travels through:
13mm pipe
and:
19mm pipe
the larger 19mm pipe will generally have lower friction loss.
This becomes increasingly important when:
* More water is flowing
* The pipe run gets longer
For a very small garden, the difference may not matter much.
For a sprinkler zone running multiple heads, it can matter a lot.
⸻
Is 19mm Pipe Big Enough for Lawn Sprinklers?
Sometimes, yes.
19mm can work well if:
* Flow is moderate
* Pipe run is not too long
* Available pressure is good
* Sprinkler demand is not excessive
* Friction loss remains acceptable
But asking:
“Can 19mm pipe run 6 sprinklers?”
does not give enough information.
You need to know how much water those sprinklers use.
For example:
6 sprinklers × 2 L/min = 12 L/min
is very different from:
6 sprinklers × 6 L/min = 36 L/min
The number of sprinklers alone does not determine the pipe size.
⸻
25mm Poly Pipe
25mm poly pipe is very common in residential lawn irrigation.
It is often used for:
* Lawn sprinkler zones
* Main irrigation runs
* Higher-flow zones
* Longer pipe runs
* Multiple sprinklers
* Valve supply lines
* Main distribution pipe
Because it has a larger diameter, it can carry the same amount of water with less pressure loss compared with smaller pipe.
⸻
Why Is 25mm Pipe Popular for Sprinkler Systems?
Imagine your zone has:
6 sprinklers
and each sprinkler requires:
4 L/min
Total zone flow:
24 L/min
At the beginning of the zone, the pipe needs to carry the full:
24 L/min
Using a larger pipe helps preserve more pressure while that higher flow travels through the system.
As sprinklers branch off, the amount of water remaining in the pipe decreases.
This is one reason 25mm poly is commonly used in residential sprinkler systems.
⸻
Does Every Sprinkler Need 25mm Pipe?
No.
You do not need 25mm pipe going directly to every sprinkler.
A typical layout might look like:
25mm main lateral
↓
tee or reducing fitting
↓
smaller connection
↓
sprinkler
This allows the main pipe to carry water efficiently while the final sprinkler connection uses a smaller fitting.
⸻
19mm vs 25mm Irrigation Pipe
This is probably the most useful comparison for residential lawn irrigation.
Consider 19mm when:
* Flow is moderate
* Runs are relatively short
* Available pressure is good
* Sprinkler demand is not too high
* Hydraulic calculations support it
Consider 25mm when:
* Flow is higher
* Runs are longer
* Several sprinklers operate at once
* You want to reduce friction loss
* You are using it as a main supply or distribution pipe
25mm is not automatically better.
It is simply more suitable in situations where higher flow or longer distance makes friction loss more important.
⸻
How Do You Calculate the Flow Your Pipe Needs to Carry?
First, check the flow rate of every sprinkler.
The sprinkler manufacturer’s performance chart should show flow in:
L/min
based on:
* Pressure
* Nozzle
* Arc
* Radius
Then add all sprinklers running at the same time.
For example:
Sprinkler 1 = 4 L/min
Sprinkler 2 = 4 L/min
Sprinkler 3 = 5 L/min
Sprinkler 4 = 5 L/min
Total zone flow:
18 L/min
The beginning of the zone pipe needs to carry approximately:
18 L/min
⸻
Flow Changes Along the Pipe
This is something many DIY installers forget.
Imagine five sprinklers use:
4 L/min each
At the start:
20 L/min
After the first sprinkler branches off:
16 L/min
After the second:
12 L/min
Then:
8 L/min
Then:
4 L/min
This means the first part of the pipe usually carries the highest flow.
As water branches off to sprinklers, the flow in the remaining pipe decreases.
⸻
Pipe Length Matters
Pipe size cannot be chosen without considering distance.
Compare:
10 metres
with:
80 metres
of the same pipe carrying the same flow.
The longer pipe will accumulate more friction loss.
This is why a pipe size that works well for a small front lawn may not be suitable for a long backyard.
⸻
Why Long Irrigation Runs Often Need Larger Pipe
Imagine your solenoid valve is near the house.
Your irrigation area is:
60 metres away
Water needs to travel through that entire pipe before reaching the sprinklers.
Using a larger supply pipe can help reduce pressure loss over that long distance.
This is especially important for:
* Large blocks
* Acreage
* Long nature strips
* Commercial gardens
* Large residential properties
⸻
What About 32mm Poly Pipe?
For larger systems, you may also consider:
32mm poly pipe
This can be useful when:
* Flow is high
* Distance is very long
* The property is large
* Multiple large sprinklers operate together
* Pressure loss is a concern
The same principle applies:
Larger pipe can reduce friction loss.
But it should still be chosen based on the system requirements.
⸻
Pipe Size for Hunter MP Rotators
Do not choose pipe size just because you are using Hunter MP Rotators.
Instead:
Step 1
Choose the MP Rotator model.
For example:
* MP1000
* MP2000
* MP3000
Step 2
Check the flow rate for the selected:
* Pressure
* Arc
* Radius
Step 3
Add the flow of all MP Rotators on the zone.
Step 4
Check pipe length and pressure loss.
Then decide whether:
19mm
25mm
or another pipe size is appropriate.
⸻
Pipe Size for Rain Bird R-VAN
Use the same method for Rain Bird R-VAN.
Do not think:
“R-VAN needs 25mm pipe.”
Instead ask:
“What is the total flow for my R-VAN zone, how far does the water travel, and how much pressure needs to remain at the sprinkler?”
That is what determines the correct pipe size.
⸻
Pipe Size for Rotors
Gear-drive rotors can require considerably more water than some smaller rotary nozzles.
Their flow depends on:
* Nozzle size
* Pressure
* Arc
* Radius
* Rotor model
If you are running several large rotors on one zone, you may need:
* Larger pipe
* Fewer rotors per zone
* Additional zones
Always calculate the actual total flow.
⸻
Pipe Size for Drip Irrigation
Drip irrigation usually has lower individual flow rates.
However, long drip systems can still use significant total flow.
For example, a long dripline may contain many emitters.
You need to calculate:
Emitter flow × number of emitters
or use the manufacturer’s:
flow per metre
for the dripline.
Large drip systems may use:
larger supply pipe
↓
smaller drip laterals
This helps deliver water efficiently to the garden.
⸻
What Size Pipe Should Run From the Water Supply to the Valves?
The supply line needs to carry the amount of water required by the active irrigation zone.
For example:
Zone 1
15 L/min
Zone 2
24 L/min
Zone 3
30 L/min
If only one zone runs at a time, the main supply does not necessarily need to carry:
15 + 24 + 30
It needs to be designed for the maximum simultaneous demand.
In this example, the largest zone uses:
30 L/min
So the supply line should be designed to carry approximately that demand while maintaining adequate pressure.
⸻
What Size Pipe Should Run After the Solenoid Valve?
Each zone can have different hydraulic requirements.
For example:
Zone 1 = Front lawn
Zone 2 = Back lawn
Zone 3 = Drip irrigation
Zone 1 might use 25mm.
Zone 3 might use a smaller low-flow pipe.
There is no rule saying every zone must use the same pipe size.
⸻
Can You Reduce From 25mm to 19mm?
Yes, where the downstream flow is lower and the hydraulic design allows it.
For example:
25mm pipe
↓
several sprinklers branch off
↓
remaining flow decreases
↓
19mm pipe
This can work well.
However, many installers may choose to keep one suitable pipe size throughout a residential zone because it simplifies:
* Installation
* Fittings
* Repairs
* Maintenance
⸻
Why Is My Last Sprinkler Weak?
If the first sprinkler is strong but the last sprinkler is weak, possible causes include:
* Pipe too small
* Pipe run too long
* Too many sprinklers
* Excessive zone flow
* Low available pressure
* Elevation
* Valve restriction
* Filter blockage
* Leak
Do not automatically replace the last sprinkler.
The problem may be the pipe supplying it.
⸻
Does Elevation Affect Irrigation Pipe Design?
Yes.
If the irrigation system runs uphill, available pressure decreases.
This means the system needs to account for:
Pipe friction
Elevation
Valves
Fittings
Sprinkler operating pressure
A larger pipe can reduce friction loss.
But it cannot remove the pressure loss caused by elevation.
⸻
What If the Sprinklers Are Downhill?
Downhill irrigation can create other problems.
You may experience:
* Higher pressure at lower sprinklers
* Misting
* Excessive flow
* Low-head drainage after shutdown
You may need:
* Pressure regulation
* Check valves
* Suitable sprinkler bodies
This is why irrigation design should consider the entire property.
⸻
Fittings Also Cause Pressure Loss
Water does not travel through only straight pipe.
Your system may include:
* Elbows
* Tees
* Valves
* Filters
* Pressure regulators
* Backflow components
* Reducing fittings
All of these can contribute to hydraulic resistance.
A good irrigation design considers the entire water path.
⸻
Example 1: Small Garden Bed
Imagine:
* Short pipe run
* Low flow
* Drippers
* Small garden bed
13mm pipe may be completely suitable.
There may be no reason to use 25mm pipe throughout the entire garden bed.
⸻
Example 2: Small Residential Lawn
Imagine:
* 4 sprinklers
* 4 L/min each
* 15-metre pipe run
Total flow:
16 L/min
Depending on available pressure and the pipe manufacturer’s friction-loss data, 19mm or 25mm may both be considered.
⸻
Example 3: Larger Lawn
Imagine:
* 6 sprinklers
* 5 L/min each
* 40-metre pipe run
Total flow:
30 L/min
Now pipe size becomes much more important.
Trying to push 30 L/min through a small pipe over a long distance may cause significant pressure loss.
A larger pipe such as 25mm may be more appropriate depending on the system.
⸻
Example 4: Long Rural Property
Imagine the irrigation zone is:
100 metres
away from the water source.
Even if the sprinkler zone is not huge, transporting water over 100 metres can create significant pressure loss.
A larger supply pipe may be useful for the long run.
You may then reduce to smaller pipe closer to the irrigation zone if appropriate.
⸻
What If My Irrigation Zone Needs Too Much Water?
Increasing pipe size is not always the answer.
Suppose your water supply can provide:
25 L/min
but your proposed zone needs:
40 L/min
Installing larger pipe will not create another:
15 L/min
of water.
The better solution may be to split the zone.
Instead of:
1 zone = 40 L/min
you could have:
Zone 1 = 20 L/min
Zone 2 = 20 L/min
The irrigation controller runs them separately.
⸻
How Many Sprinklers Can 25mm Pipe Run?
There is no universal number.
For example:
8 sprinklers × 2 L/min = 16 L/min
but:
8 sprinklers × 6 L/min = 48 L/min
Both systems have eight sprinklers.
But their water demand is completely different.
So never size irrigation pipe based on sprinkler count alone.
⸻
How Many Sprinklers Can 19mm Pipe Run?
The same rule applies.
You need to know:
* Total sprinkler flow
* Pipe length
* Available pressure
* Elevation
* Required sprinkler pressure
The correct question is not:
“How many sprinklers?”
The correct question is:
“How many litres per minute need to travel through this pipe?”
⸻
How to Choose Irrigation Pipe Size Step by Step
Step 1 — Measure your available flow
Find out how many litres per minute your water supply can provide.
Step 2 — Check your water pressure
Measure the available pressure.
Step 3 — Design your sprinkler layout
Plan where sprinklers will go.
Step 4 — Choose sprinklers and nozzles
Select suitable:
* Spray nozzles
* MP Rotators
* R-VAN nozzles
* Rotors
Step 5 — Find each sprinkler’s flow rate
Use the manufacturer’s performance chart.
Step 6 — Calculate total zone flow
Add every sprinkler running simultaneously.
Step 7 — Measure the pipe run
Determine how far the water needs to travel.
Step 8 — Check elevation
Is the irrigation area uphill or downhill?
Step 9 — Check friction-loss data
Use the hydraulic data for the actual poly pipe you are buying.
Step 10 — Select the pipe size
Choose a pipe that keeps pressure loss within an acceptable range.
⸻
Simple Pipe Selection Guide
Use this only as a starting point.
13mm
Best suited to:
* Drip irrigation
* Micro irrigation
* Small low-flow branches
* Short runs
19mm
Best suited to:
* Smaller sprinkler systems
* Moderate-flow applications
* Shorter residential laterals
* Garden irrigation
25mm
Best suited to:
* Lawn sprinkler zones
* Main irrigation runs
* Higher-flow zones
* Longer distances
* Multiple sprinklers
32mm+
Worth considering for:
* High-flow systems
* Long distances
* Large properties
* Larger irrigation installations
⸻
13mm vs 19mm vs 25mm Comparison
Feature 13mm 19mm 25mm
Drip irrigation Excellent Excellent supply option Good main supply
Micro irrigation Excellent Excellent Good
Small branches Excellent Excellent Good
Small sprinkler zones Limited depending on design Good Excellent
Larger sprinkler zones Often restrictive Depends on design Better
Longer runs Higher friction concern Better Better again
Higher flow Limited Moderate Higher capacity
Main distribution Small systems Possible Common
Installation cost Lowest Medium Higher
Remember:
This is a general comparison.
Always check the actual pipe manufacturer’s hydraulic data.
⸻
Common Irrigation Pipe Sizing Mistakes
Mistake 1: Buying the smallest pipe because it is cheaper
A small saving on pipe can create years of poor sprinkler performance.
Mistake 2: Choosing pipe based on sprinkler connection size
The sprinkler connection size does not determine the size of the distribution pipe.
Mistake 3: Ignoring pipe length
Long runs create more friction loss.
Mistake 4: Counting sprinklers instead of calculating flow
The number of sprinklers does not tell you the hydraulic demand.
Mistake 5: Ignoring water pressure
Flow alone is not enough.
Mistake 6: Trying to fix low water supply with larger pipe
Larger pipe preserves pressure.
It does not create more available water.
Mistake 7: Ignoring elevation
Uphill and downhill properties require extra planning.
⸻
Frequently Asked Questions
What size irrigation pipe do I need for lawn sprinklers?
It depends on total zone flow, pipe length, available pressure, elevation and sprinkler requirements. 19mm and 25mm are common residential choices.
Is 13mm pipe suitable for sprinklers?
It can work in short, low-flow applications, but it may create too much pressure loss when flow or distance increases.
Is 19mm poly pipe good for sprinklers?
Yes, 19mm pipe can work well for smaller or moderate-flow residential sprinkler zones where hydraulic losses remain acceptable.
Is 25mm poly pipe good for lawn irrigation?
Yes. 25mm pipe is commonly useful for lawn sprinkler zones, main runs and longer or higher-flow installations.
Should I use 19mm or 25mm irrigation pipe?
If the run is short and flow is moderate, 19mm may be sufficient. For higher flows or longer distances, 25mm may be a better option.
Does 25mm pipe give better pressure than 19mm?
It does not create pressure, but it can reduce friction loss and help more pressure remain available at the sprinkler.
Can I use 25mm pipe and reduce to a smaller sprinkler fitting?
Yes. Reducing fittings and adaptors are commonly used.
What size pipe should I use for Hunter MP Rotators?
Calculate the total flow of all MP Rotators on the zone, measure pipe length and check available operating pressure before selecting the pipe size.
What size pipe should I use for Rain Bird R-VAN?
Use the same process: calculate total zone flow, pipe length and available pressure.
Why is my last sprinkler weak?
Possible causes include undersized pipe, long pipe runs, too many sprinklers, low pressure, elevation, leaks, valve restrictions or blocked filters.
Is bigger irrigation pipe always better?
No. Bigger pipe can reduce friction loss but costs more and does not fix poor sprinkler design or insufficient water supply.
Can I use different pipe sizes in the same irrigation system?
Yes. Mainlines, laterals and individual sprinkler connections can use different pipe sizes when the system is properly designed.
⸻
Final Verdict: 13mm, 19mm or 25mm?
If you remember one thing from this guide, remember:
Do not choose irrigation pipe based only on lawn size or the number of sprinklers.
Choose based on:
Flow
↓
Distance
↓
Pressure
↓
Elevation
↓
Friction loss
↓
Sprinkler requirements
As a simple starting point:
13mm → low-flow irrigation and small branches
19mm → moderate residential irrigation
25mm → lawn sprinkler zones, main distribution and longer or higher-flow runs
But always check the hydraulic data for the actual poly pipe you are buying.
⸻
Shop Irrigation Pipe & Fittings at SprinklerPros
Once you have calculated your irrigation requirements, you can select the components needed to build the system.
Depending on your design, you may need:
* 13mm poly pipe
* 19mm poly pipe
* 25mm poly pipe
* Poly tees
* Poly elbows
* Poly joiners
* Reducing fittings
* Threaded adaptors
* Pop-up sprinklers
* Hunter MP Rotators
* Rain Bird R-VAN nozzles
* Solenoid valves
* Irrigation controllers
* Filters
* Pressure regulators
* Drip irrigation components
Before ordering, ask:
How much water does the zone need?
How far does the water need to travel?
How much pressure is available?
How much pressure do the sprinklers require?
Then choose your irrigation pipe.
Good irrigation starts with good hydraulics — not guesswork.
