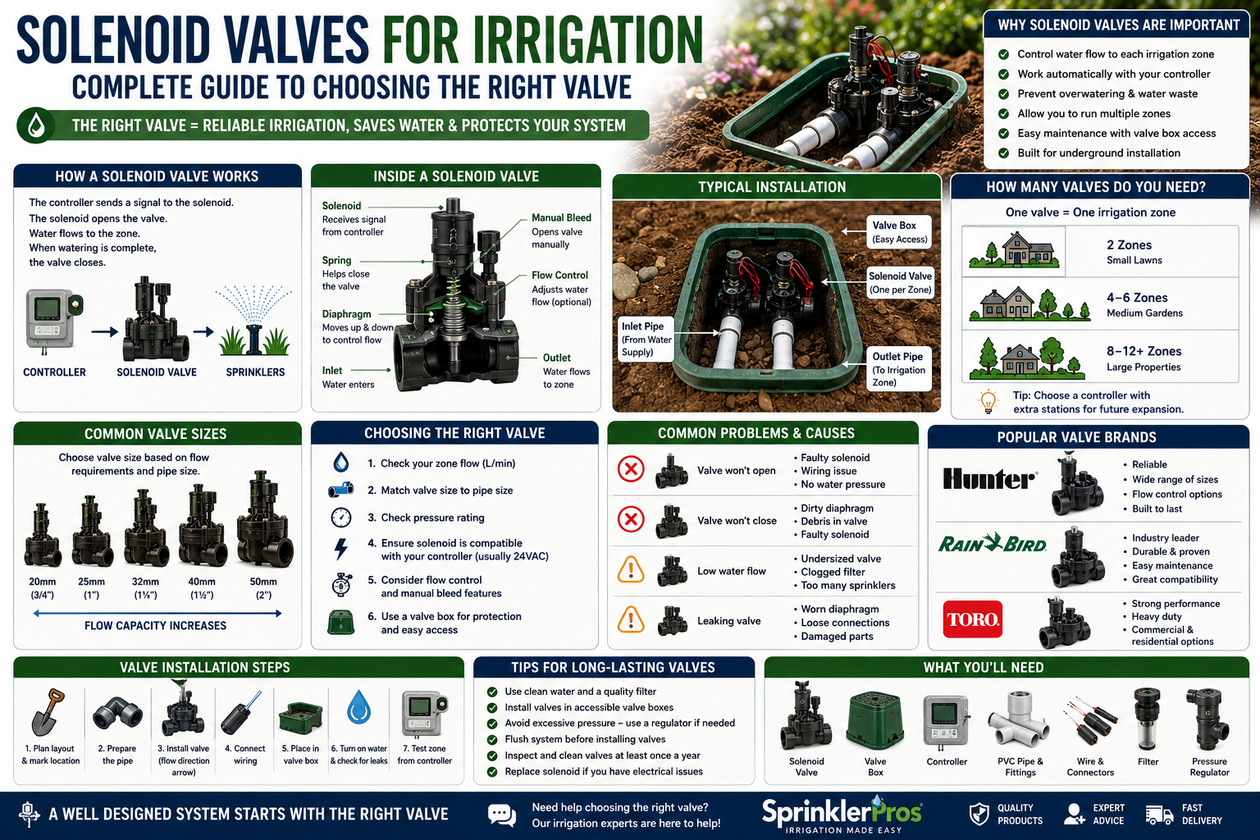

Solenoid Valves for Irrigation: Complete Guide to Choosing the Right Valve

If you’re building an automatic irrigation system, one of the most important components is the irrigation solenoid valve.

Sprinklers distribute the water.

The pipe carries the water.

The controller tells the system when to operate.

But the solenoid valve controls which irrigation zone actually receives water.

A properly selected valve can help your irrigation system operate reliably for years.

A poorly selected, incorrectly installed or damaged valve can cause:

Sprinklers not turning on
Sprinklers staying on
Low water flow
Leaks
Pressure problems
Zones running incorrectly
Water constantly flowing

In this guide, we’ll explain everything you need to know about irrigation solenoid valves, including how they work, how many you need, what size to choose and how to troubleshoot common problems.

What Is an Irrigation Solenoid Valve?

An irrigation solenoid valve is an electrically controlled valve used to turn water flow on and off automatically.

It is usually installed underground in a valve box.

The irrigation controller sends an electrical signal to the valve.

The valve opens.

Water flows into the irrigation zone.

When the watering period finishes, the controller stops the signal and the valve closes.

The basic system looks like this:

Water supply

↓

Solenoid valve

↓

Irrigation pipe

↓

Sprinklers

The controller controls the valve.

How Does an Irrigation Solenoid Valve Work?

A typical irrigation valve has several important components.

These can include:

Valve body
Solenoid
Diaphragm
Spring
Flow-control components
Inlet
Outlet
Manual bleed or adjustment mechanism

When the controller activates the solenoid, the valve’s internal mechanism changes position and allows water to flow through the valve.

When the controller stops the electrical signal, the valve closes.

This happens automatically every time an irrigation program runs.

Why Do Irrigation Systems Need Solenoid Valves?

Your water supply usually can’t operate every sprinkler at the same time.

For example:

Available water = 40 L/min

But your complete irrigation system requires:

80 L/min

You can’t simply run everything simultaneously.

Instead, divide the system into zones.

Zone 1

Front lawn

Zone 2

Back lawn

Zone 3

Garden beds

Each zone has its own valve.

The controller operates them one at a time.

How Many Solenoid Valves Do I Need?

A simple rule is:

One irrigation zone generally requires one zone valve.

For example:

2 zones

2 valves

4 zones

4 valves

6 zones

6 valves

8 zones

8 valves

Your exact system may also include additional components such as a master valve or pump-related equipment.

Example: Four-Zone Irrigation System

Imagine your property has:

Zone 1

Front lawn

Zone 2

Back lawn

Zone 3

Side garden

Zone 4

Garden beds

You would generally have:

4 zone valves

The controller activates the appropriate valve when that zone needs to operate.

Where Should Irrigation Valves Be Installed?

Solenoid valves are generally installed in an accessible location, often inside a valve box.

A valve box makes it easier to:

Inspect valves
Repair valves
Replace solenoids
Check wiring
Flush or service the system

Don’t bury valves directly in soil without appropriate access.

You don’t want to dig up your lawn every time a valve needs maintenance.

What Is a Valve Box?

A valve box is a protective underground enclosure around irrigation valves.

It provides access while helping protect the components from:

Soil
Garden equipment
Accidental damage
Landscaping activity

The lid should remain accessible after the lawn or garden has been completed.

Why Valve Accessibility Matters

Imagine a valve develops a problem five years after installation.

If the valve is easily accessible:

Open lid → inspect valve → repair

If it has been buried beneath landscaping:

Dig → locate valve → remove soil → repair

Good irrigation design should always consider future maintenance.

What Size Irrigation Valve Do I Need?

Valve size should be selected based on the irrigation system.

Common irrigation valve sizes include:

20 mm
25 mm
32 mm
40 mm
Larger sizes for higher-flow systems

The correct size depends on:

Required flow
Pipe size
Pressure
Valve specifications
Number of sprinklers
Application

Don’t automatically choose the largest valve.

Choose a valve appropriate for the zone.

Does Valve Size Affect Irrigation Performance?

Yes.

A valve creates some resistance to water flow.

If the valve is unsuitable for the required flow, it can contribute to pressure loss or poor system performance.

The valve should therefore be selected as part of the overall hydraulic design.

Think about:

Water supply

Pipe

Valve

Sprinklers

as one system.

20 mm vs 25 mm Irrigation Valves

A 20 mm valve may be suitable for smaller residential zones.

A 25 mm valve can provide greater flow capacity for appropriately designed systems.

But:

25 mm isn’t automatically better.

The pipe, fittings, sprinkler demand and water supply all need to be compatible.

What Is a 24V Irrigation Solenoid Valve?

Many automatic irrigation systems use low-voltage solenoid valves controlled by an irrigation controller.

The controller supplies the electrical signal required to activate the solenoid.

The exact voltage and electrical characteristics depend on the controller and valve.

Always check the manufacturer’s specifications before connecting a valve to a controller.

What Is the Solenoid?

The solenoid is the electrical component attached to the irrigation valve.

It receives the signal from the controller.

The solenoid then activates the valve mechanism.

A simplified sequence is:

Controller sends signal

↓

Solenoid activates

↓

Valve opens

↓

Water flows

When the signal stops:

Solenoid deactivates

↓

Valve closes

What Happens If the Solenoid Fails?

A failed solenoid can cause several symptoms.

The valve may:

Not open
Not close
Open intermittently
Remain stuck
Cause the zone to operate incorrectly

The exact symptoms depend on the type of failure.

How Do You Know If a Solenoid Is Bad?

Possible signs include:

Zone won’t turn on

The controller activates the zone, but no water flows.

Zone won’t turn off

Water continues flowing after the controller stops.

Valve operates intermittently

The zone sometimes works and sometimes doesn’t.

Solenoid shows electrical problems

The controller may report an electrical fault depending on the model.

However, don’t immediately assume the solenoid is the problem.

Also check:

Controller
Wiring
Valve diaphragm
Water supply
Filters
Flow-control settings

What If the Sprinklers Won’t Turn On?

If a zone isn’t operating, troubleshoot systematically.

Step 1

Check the controller.

Is the zone actually programmed to run?

Step 2

Manually activate the zone.

Does the valve operate?

Step 3

Check the wiring.

Are the wires connected correctly?

Step 4

Check the solenoid.

Is it functioning?

Step 5

Check water supply.

Is water available?

Step 6

Check the valve.

Could the diaphragm or internal mechanism be blocked?

Step 7

Check downstream pipework.

Could there be a restriction?

What If the Sprinklers Won’t Turn Off?

This can be more concerning because water may continue running.

Possible causes include:

Valve diaphragm problem
Debris inside the valve
Solenoid problem
Manual bleed left open
Controller fault
Wiring issue
Damaged valve

First, turn off the water supply if necessary.

Then inspect the valve and controller.

What Is a Valve Diaphragm?

Many irrigation valves use a diaphragm to control water flow.

The diaphragm moves according to the pressure conditions inside the valve.

If the diaphragm becomes:

Damaged
Dirty
Worn
Blocked

the valve may not operate correctly.

This can cause:

Leaking
Failure to open
Failure to close
Reduced flow

Some irrigation valves have replaceable internal components, depending on the manufacturer and model.

Why Do Irrigation Valves Get Dirty?

Because irrigation systems carry water through underground pipework, debris can enter the system.

Potential contaminants include:

Dirt
Sand
Rust
Pipe debris
Organic material

If debris reaches the valve, it can interfere with the diaphragm or other internal components.

This is one reason filtration and good installation practices are important.

Should You Use a Filter?

For some irrigation systems, filtration is highly recommended or required depending on the irrigation equipment.

Drip irrigation in particular often requires appropriate filtration because small emitters can become blocked easily.

Sprinkler systems can also benefit from clean water and appropriate filtration depending on the source.

The correct filter should be selected according to:

Water source
Flow
Irrigation equipment
Manufacturer requirements

Solenoid Valve for Sprinklers vs Drip Irrigation

A solenoid valve can control both sprinkler and drip irrigation zones.

However, the downstream irrigation equipment is different.

For example:

Sprinkler zone

Valve

↓

Pipe

↓

Sprinklers

Drip zone

Valve

↓

Filter

↓

Pressure regulator

↓

Dripline

This is why drip irrigation often requires additional components.

Do Drip Irrigation Systems Need a Solenoid Valve?

If you want automatic irrigation, yes, a solenoid valve can be used to control a drip zone.

For a larger automated system:

Controller

↓

Solenoid valve

↓

Filter

↓

Pressure regulator

↓

Dripline

This allows the controller to automatically operate the drip irrigation separately from lawn sprinklers.

Should Sprinklers and Drip Use the Same Valve?

They can have separate zones and valves.

This is generally preferable because sprinklers and drip irrigation can have different:

Pressure requirements
Flow characteristics
Watering schedules
Application rates

For example:

Zone 1

Lawn sprinklers

Zone 2

Garden dripline

Each can have its own valve and controller program.

What Is a Master Valve?

A master valve is installed upstream of the irrigation zone valves.

The controller can activate it when irrigation begins.

A simplified layout is:

Water supply

↓

Master valve

↓

Zone valves

↓

Irrigation zones

A master valve can provide additional control over the main irrigation supply.

Whether you need one depends on your system design.

What Is a Flow-Control Valve?

Some irrigation valves include flow-control functionality.

This can allow you to adjust the amount of water passing through the valve.

Flow control can be useful when you need to regulate or fine-tune a zone.

However, don’t use the valve’s flow-control feature to compensate for a fundamentally incorrect irrigation design.

What Is a Manual Bleed Screw?

Some irrigation valves have a manual bleed mechanism.

This can allow the valve to be opened manually without the controller activating the solenoid.

This can be useful during:

Testing
Installation
Maintenance

The exact operation varies by valve model.

Always follow the manufacturer’s instructions.

Normally Closed vs Normally Open

Many irrigation solenoid valves are designed to remain closed when they are not electrically activated.

This is commonly referred to as:

Normally closed

The valve opens when the controller activates the solenoid.

This helps prevent water from continuously flowing when the irrigation system isn’t operating.

Always check the specifications for the particular valve.

How Much Pressure Can an Irrigation Valve Handle?

The maximum operating pressure depends on the valve model.

Different valves have different pressure ratings.

Don’t assume:

“All irrigation valves can handle the same pressure.”

Check the manufacturer’s specifications.

If your water supply has excessive pressure, you may need:

Pressure regulation
A suitable valve
A pressure-reducing device

What Happens If Water Pressure Is Too High?

Excessive pressure can cause problems throughout an irrigation system.

Potential issues include:

Misting
Leaks
Component stress
Poor sprinkler distribution
Excessive water use

A pressure regulator may be appropriate depending on the system.

What Happens If Water Pressure Is Too Low?

Low pressure can cause:

Weak sprinklers
Reduced radius
Poor coverage
Incomplete pop-up
Inadequate flow

Don’t automatically blame the valve.

Low pressure can be caused by:

Too many sprinklers
Small pipe
Long pipe runs
Restrictions
Low water supply
Elevation
Filters
Incorrect equipment

Can a Solenoid Valve Reduce Pressure?

A valve can contribute to pressure loss as water passes through it.

The amount depends on:

Valve design
Flow
Valve size
Operating conditions

This is why valve selection should be part of the hydraulic design.

How to Choose an Irrigation Solenoid Valve

Use this process.

Step 1 — Determine your zone flow

How many litres per minute does the zone require?

Step 2 — Check pipe size

What diameter pipe feeds the zone?

Step 3 — Check pressure

What pressure is available?

Step 4 — Select valve size

Choose a valve appropriate for the flow and pipe.

Step 5 — Check electrical compatibility

Make sure the solenoid works with your controller.

Step 6 — Check pressure rating

Make sure the valve is suitable for your water supply.

Step 7 — Consider filtration

Determine whether filtration is required.

Step 8 — Consider future expansion

Plan for the system you actually intend to build.

Example: Small Residential Zone

Suppose your front lawn requires:

20 L/min

You have:

25 mm irrigation pipe

and appropriate operating pressure.

A valve suitable for this flow and pipe configuration may be appropriate.

Don’t choose based only on the fact that the pipe is 25 mm.

Check the valve’s actual specifications.

Example: Large Lawn Zone

Suppose a large lawn zone requires:

50 L/min

You may need a larger valve and pipe configuration than a small residential zone.

The valve should be selected to handle:

Required flow + operating pressure

while keeping pressure loss appropriate.

What Is the Best Irrigation Valve Brand?

There isn’t one universal answer.

Popular irrigation manufacturers include:

Hunter
Rain Bird
Toro
Irritrol
Other specialist irrigation brands

The important factors are:

Correct size
Flow capacity
Pressure rating
Electrical compatibility
Availability of replacement parts
Reliability
Application

Choose the valve based on the system rather than simply choosing the most recognisable brand.

Hunter Irrigation Valves

Hunter produces a range of irrigation valves for residential and professional irrigation applications.

Depending on the model, Hunter valves may offer features such as:

Flow control
Pressure regulation options
Heavy-duty construction
Replaceable components
Multiple size options

If you’re already using Hunter sprinklers and controllers, using compatible Hunter valves can simplify system planning and maintenance.

Rain Bird Irrigation Valves

Rain Bird also offers a broad range of irrigation valves.

Depending on the model, features can include:

Flow control
Pressure regulation
Residential and commercial options
Multiple sizes
Serviceable components

Rain Bird valves can be used in systems containing Rain Bird sprinklers and controllers.

Again, brand matching isn’t always required, but compatibility should always be checked.

Can You Mix Hunter and Rain Bird Valves?

In many irrigation systems, equipment from different manufacturers can be used together.

For example:

Hunter controller

Rain Bird valve

may be possible if the electrical and hydraulic specifications are compatible.

However, always check:

Solenoid voltage
Electrical load
Valve specifications
Controller compatibility
Pipe connections

before installation.

How to Install an Irrigation Solenoid Valve

The exact installation method depends on the valve and system.

A typical installation involves:

Step 1

Turn off the water supply.

Step 2

Prepare the pipework.

Step 3

Install the valve in the correct flow direction.

Step 4

Connect the inlet.

Step 5

Connect the outlet.

Step 6

Install the solenoid.

Step 7

Connect control wiring.

Step 8

Place the valve inside an appropriate valve box.

Step 9

Restore water supply slowly.

Step 10

Check for leaks.

Step 11

Activate the zone.

Step 12

Test the sprinkler system.

Always follow the valve manufacturer’s installation instructions.

Why Valve Flow Direction Matters

Most irrigation valves have a specified:

and:

OUT

direction.

Water should flow through the valve in the correct direction.

Installing a valve backwards can cause:

Poor operation
Reduced flow
Valve failure
Unexpected behaviour

Always check the arrows or markings on the valve body.

Should Valves Be Installed Above Ground?

For many residential irrigation systems, valves are installed underground inside valve boxes.

However, the correct installation depends on:

Site
Accessibility
Irrigation design
Local conditions
Manufacturer requirements

The most important thing is that valves remain accessible for maintenance.

Why Use a Valve Box?

A valve box:

Protects the valve
Provides access
Makes maintenance easier
Keeps the installation organised

A neat valve box can make future troubleshooting much easier.

How to Maintain Irrigation Valves

Regularly inspect your valve system.

Check for:

Leaks

Water around the valve box can indicate a problem.

Electrical issues

Check controller and wiring if a zone won’t activate.

Debris

Inspect valves if they don’t close correctly.

Damaged solenoids

Replace faulty components where appropriate.

Loose connections

Check fittings and wiring.

Valve box condition

Keep soil and debris from accumulating around the valve.

Common Irrigation Valve Problems

Problem 1: Valve Won’t Open

Possible causes:

Faulty solenoid
Wiring problem
Controller problem
Blocked valve
Insufficient water pressure

Problem 2: Valve Won’t Close

Possible causes:

Debris
Damaged diaphragm
Faulty solenoid
Manual bleed open
Valve damage

Problem 3: Valve Leaks

Possible causes:

Damaged seals
Loose connection
Cracked valve body
Incorrect installation
Worn internal components

Problem 4: Low Flow

Possible causes:

Undersized valve
Blocked filter
Restricted pipe
Too many sprinklers
Low supply pressure
Valve partially closed

Problem 5: Valve Works Intermittently

Possible causes:

Loose wiring
Faulty solenoid
Controller issue
Electrical connection problem

How to Test an Irrigation Solenoid

If a zone isn’t operating correctly, you can begin by checking whether the controller is sending the appropriate signal.

Depending on the system, a multimeter may be used to test electrical characteristics.

However, electrical testing should be performed safely and according to the equipment manufacturer’s instructions.

Never assume a valve is faulty until the controller, wiring and water supply have also been checked.

How to Replace a Solenoid

In many irrigation valves, the solenoid can be replaced without replacing the entire valve body.

A typical process is:

Turn off the water supply if required.
Disconnect the controller wiring.
Remove the faulty solenoid.
Install the replacement.
Reconnect the wiring.
Restore the water supply.
Test the zone.

The exact process depends on the valve manufacturer and model.

Do You Need to Replace the Whole Valve?

Not always.

If the valve body is in good condition but the solenoid has failed, replacing the solenoid may be enough.

If the valve body, diaphragm or other components are damaged, replacing the entire valve may make more sense.

Compare:

Replacement solenoid cost

vs:

Replacement valve cost

and consider the age and condition of the existing system.

How Long Do Irrigation Valves Last?

There isn’t a universal lifespan.

A valve’s service life depends on:

Water quality
Pressure
Installation
Frequency of use
Environmental conditions
Maintenance
Product quality

A properly installed quality valve can provide many years of service.

Regular inspection can help identify problems before they become major failures.

Can Irrigation Valves Be Repaired?

Many irrigation valves are serviceable.

Depending on the model, replacement components may include:

Solenoid
Diaphragm
Seals
Internal components

For some damaged valves, replacement is more practical than repair.

Solenoid Valve vs Ball Valve

These are very different components.

Solenoid Valve

Automatically controlled.

Used for:

Irrigation zones
Automatic watering
Controller-based systems

Ball Valve

Manually operated.

Used for:

Isolation
Shutoff
Maintenance
Manual control

A typical irrigation system may use both.

Why You May Need a Main Shutoff Valve

A main shutoff valve can isolate the irrigation system from the water supply.

This is useful for:

Maintenance
Repairs
Winterisation where applicable
Emergency shutoff

Imagine a valve starts leaking.

A main shutoff allows you to isolate the irrigation system without necessarily shutting down the entire property water supply.

Solenoid Valves and Water Efficiency

A solenoid valve doesn’t automatically make a system water efficient.

It simply controls water flow.

Water efficiency comes from the complete design:

Correct sprinklers

Correct nozzles

Correct zones

Correct pressure

Correct controller schedule

Correct valve

A good valve allows the controller to operate each zone precisely.

The Most Common Valve Installation Mistakes

Installing the valve backwards

Always check the flow arrow.

Burying the valve without access

Use an appropriate valve box.

Incorrect electrical connection

Follow the controller and valve specifications.

Using the wrong valve size

Match the valve to the zone flow.

Ignoring pressure

Check the system operating pressure.

Installing valves too close together

Leave enough room for maintenance.

Not testing before burying

Test the system before final landscaping.

How Many Valves Can One Controller Run?

This depends on the controller’s station capacity.

For example:

4-station controller

can generally operate:

4 zones

8-station controller

can generally operate:

8 zones

Always check the controller’s specifications.

Some systems also use master valves or pump-start outputs, which can affect the overall configuration.

Do Solenoid Valves Need Electricity All the Time?

Most automatic irrigation solenoid valves are controlled by an electrical signal from the controller.

The exact electrical operation depends on the valve design.

Your controller activates the solenoid when the zone needs to operate and stops the signal when the watering period ends.

Always follow the manufacturer’s electrical specifications.

Can You Run a Solenoid Valve From a Battery?

Some irrigation systems use battery-operated controllers and valves designed specifically for that purpose.

However, standard wired residential irrigation systems commonly use controller-powered solenoids.

Don’t assume a standard valve is suitable for a battery system.

Check the manufacturer’s specifications.

Should You Use a Pressure-Regulating Valve?

Pressure regulation may be useful when:

Supply pressure is too high
Irrigation equipment requires controlled pressure
Drip irrigation is being used
Manufacturer specifications require regulated pressure

The correct regulator depends on the irrigation equipment and system design.

Solenoid Valve Installation Checklist

Before installing a valve, check:

☐ Correct valve size

☐ Correct flow direction

☐ Suitable pressure rating

☐ Correct pipe connections

☐ Compatible solenoid

☐ Compatible controller

☐ Valve box size

☐ Accessible installation location

☐ Appropriate filtration

☐ Pressure regulation if required

☐ Wiring

☐ Zone identification

☐ Leak testing

☐ Final system test

Frequently Asked Questions

What is an irrigation solenoid valve?

An irrigation solenoid valve is an electrically controlled valve that automatically opens and closes to control water flow to an irrigation zone.

How many solenoid valves do I need?

Generally, you need one zone valve for each independently controlled irrigation zone.

What size irrigation valve should I use?

Choose the valve based on zone flow, pipe size, operating pressure and the valve manufacturer’s specifications.

What voltage do irrigation valves use?

Many automatic irrigation systems use low-voltage controller-operated solenoids, but the exact electrical requirements depend on the valve and controller.

Why won’t my sprinkler valve open?

Possible causes include a faulty solenoid, wiring problem, controller issue, water-supply problem or blocked valve.

Why won’t my sprinkler valve close?

Debris, a damaged diaphragm, faulty solenoid, manual bleed setting or valve damage can prevent a valve from closing.

Can I replace just the solenoid?

Often yes. Many irrigation valves have replaceable solenoids. Check the specific valve model before purchasing a replacement.

Can I use Hunter valves with a Rain Bird controller?

Potentially, provided the electrical specifications and system requirements are compatible. Always check the manufacturer’s specifications.

Do I need a valve box?

For underground residential installations, a valve box provides useful access and protection for maintenance.

Can one valve control multiple sprinklers?

Yes. A valve can control multiple sprinklers within the same irrigation zone, provided the total flow and pressure requirements are within the system’s capacity.

Can one valve control drip irrigation?

Yes. Drip irrigation can be operated as an independent zone using a solenoid valve, often with additional filtration and pressure regulation.

How long do irrigation valves last?

There is no fixed lifespan. Service life depends on installation, water quality, pressure, usage and product quality.

Final Verdict: Choosing the Right Irrigation Valve

An irrigation valve may be small compared with a sprinkler system, but it plays a critical role.

The right valve should match:

Zone flow

Pipe size

Water pressure

Controller

Irrigation application

Installation environment

For a basic automatic system:

Controller

↓

Solenoid valve

↓

Pipe

↓

Sprinklers

This simple sequence is the foundation of many automatic irrigation systems.

If you’re building a new system, don’t select the valve separately from the rest of the design.

Choose the valve as part of the complete hydraulic system.

Build Your Irrigation System With SprinklerPros

Whether you’re replacing a faulty valve or building a complete automatic irrigation system, you may need:

Irrigation solenoid valves
Hunter valves
Rain Bird valves
Valve boxes
Irrigation controllers
Sprinklers
Rotors
MP Rotators
Sprinkler nozzles
Poly pipe
Irrigation fittings
Filters
Pressure regulators

The right valve helps your controller manage each irrigation zone reliably.

The controller decides when to water.

The valve decides which zone receives water.

The pipe delivers the water.

The sprinkler distributes it.

When all four are correctly designed together, your irrigation system can operate reliably and efficiently.

Choose the valve for the system you are building — not simply the valve that looks like it will fit.

Quick Irrigation Valve Buying Checklist

Before ordering an irrigation solenoid valve, know:

☐ Number of irrigation zones

☐ Zone flow in L/min

☐ Pipe diameter

☐ Available pressure

☐ Required valve size

☐ Controller type

☐ Solenoid electrical specifications

☐ Valve pressure rating

☐ Irrigation application

☐ Need for flow control

☐ Need for pressure regulation

☐ Valve box requirements

☐ Replacement-part availability

If you know these details, choosing the correct valve becomes much easier.
