Pop-Up Sprinklers vs Rotors vs MP Rotators: Which Is Best for Your Lawn?

Choosing the right sprinkler can make a huge difference to the performance of your irrigation system.

If you’re planning a new lawn irrigation system, you’ve probably seen products such as:

  • Pop-up spray sprinklers
  • Gear-drive rotors
  • MP Rotators
  • Rotary nozzles

But which one should you use?

Pop-up sprinklers vs rotors vs MP Rotators — which is best?

The answer depends on your lawn size, shape, water pressure, available flow, soil, sprinkler spacing and the type of coverage you need.

There isn’t one sprinkler that is best for every lawn.

In this guide, we’ll compare the three most common options and explain exactly where each one makes sense.

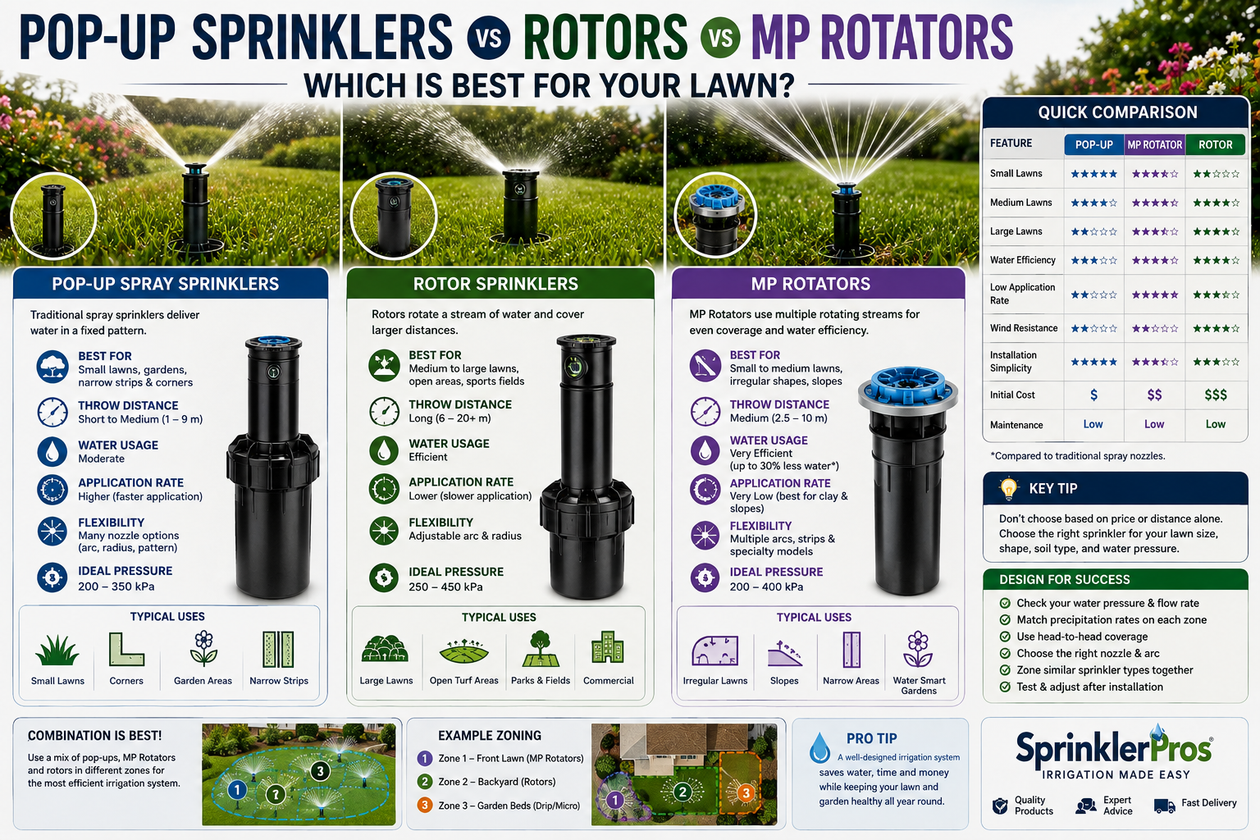

Pop-Up Sprinklers vs Rotors vs MP Rotators: Quick Comparison

Feature

Pop-Up Sprays

MP Rotators

Rotors

Small lawns

⭐⭐⭐⭐⭐

⭐⭐⭐⭐⭐

⭐⭐

Medium lawns

⭐⭐⭐⭐

⭐⭐⭐⭐⭐

⭐⭐⭐⭐

Large lawns

⭐⭐

⭐⭐⭐⭐

⭐⭐⭐⭐⭐

Narrow areas

⭐⭐⭐⭐⭐

⭐⭐⭐⭐⭐

⭐⭐

Long throw

⭐⭐

⭐⭐⭐⭐

⭐⭐⭐⭐⭐

Water efficiency

⭐⭐⭐

⭐⭐⭐⭐⭐

⭐⭐⭐⭐

Low precipitation

⭐⭐

⭐⭐⭐⭐⭐

⭐⭐⭐⭐

DIY installation

⭐⭐⭐⭐⭐

⭐⭐⭐⭐⭐

⭐⭐⭐⭐

Complex lawn shapes

⭐⭐⭐⭐⭐

⭐⭐⭐⭐⭐

⭐⭐⭐

Large open turf

⭐⭐

⭐⭐⭐⭐

⭐⭐⭐⭐⭐

Simple recommendation

Small lawn → Pop-ups or MP Rotators

Medium lawn → MP Rotators or smaller rotors

Large lawn → Rotors

Narrow/irregular areas → Pop-ups or MP Rotators

Slopes or runoff-prone areas → Consider MP Rotators

The exact choice should always be based on the manufacturer’s performance data and your site’s available pressure and flow.

What Is a Pop-Up Sprinkler?

A pop-up sprinkler is installed underground so that the sprinkler body sits flush with the lawn surface.

When the irrigation zone turns on, water pressure pushes the stem upward.

When watering stops, the sprinkler retracts underground.

A typical system looks like:

Irrigation pipe

↓

Pop-up sprinkler

↓

Nozzle

↓

Water spray

Pop-up bodies can be fitted with different nozzles, allowing you to change:

  • Radius
  • Arc
  • Flow
  • Spray pattern

Rain Bird, for example, offers 1800 Series spray bodies with multiple nozzle and pressure-regulated options. (Rain Bird)

What Are Pop-Up Sprinklers Best For?

Pop-up sprays are particularly useful for:

  • Small lawns
  • Front gardens
  • Small garden areas
  • Narrow strips
  • Corners
  • Areas requiring short throw distances

They can be especially useful where the sprinkler doesn’t need to throw water a long distance.

For example, a small:

5 m × 6 m lawn

may be better suited to pop-up sprinklers than large rotors.

Advantages of Pop-Up Sprinklers

1. Excellent for small areas

Pop-up sprays can provide precise coverage over relatively small areas.

2. Easy to customise

Different nozzles can provide different arcs and flow rates.

3. Good for corners

Quarter-circle nozzles can be used in corners to avoid watering paths and buildings.

4. Easy to replace

The sprinkler body and nozzle can generally be serviced or replaced individually.

5. Great for irregular lawns

Multiple spray patterns can help accommodate unusual lawn shapes.

Disadvantages of Pop-Up Sprinklers

Traditional fixed spray nozzles can apply water relatively quickly.

If the soil cannot absorb water quickly enough, this can contribute to runoff.

They can also be affected by:

  • Wind
  • Poor spacing
  • Excessive pressure
  • Incorrect nozzle selection

This doesn’t mean pop-up sprinklers are inefficient.

A properly designed spray system can work very well.

The key is choosing the correct nozzle and spacing.

What Is an MP Rotator?

An MP Rotator is a rotating-stream nozzle designed to be installed on a suitable pop-up sprinkler body.

Instead of producing a conventional fixed spray, the nozzle sends multiple rotating streams across the landscape.

Hunter describes MP Rotators as multi-trajectory rotating-stream sprinklers with a slower application rate than traditional spray nozzles. (Hunter Industries)

SprinklerPros currently stocks Hunter MP Rotator products, including MP3000 models with approximately 9.1 m range depending on the configuration. (Sprinklerpros)

How Does an MP Rotator Work?

Instead of:

💩💩💩💩

a traditional spray pattern produces a relatively continuous spray.

An MP Rotator produces multiple rotating streams:

↗ ↑ ↖

→ 💧 ←

↘ ↓ ↙

The streams rotate around the sprinkler while applying water more gradually.

Hunter states that MP Rotators can reduce water use by up to 30% compared with traditional spray nozzles under appropriate conditions. (Hunter Industries)

The actual result depends on system design, nozzle selection, pressure, scheduling and site conditions.

What Are MP Rotators Best For?

MP Rotators can be excellent for:

  • Small to medium lawns
  • Narrow lawns
  • Irregular shapes
  • Slopes
  • Areas prone to runoff
  • Residential gardens
  • Water-conscious irrigation designs

Hunter’s residential design guide specifically recommends considering high-efficiency spray nozzles such as MP Rotators instead of traditional fixed nozzles in suitable applications. (Hunter Industries)

Advantages of MP Rotators

Lower application rate

Water is applied more slowly than with many conventional sprays.

Excellent coverage

Rotating streams can provide consistent distribution when correctly spaced.

Good for irregular areas

Different models and arcs allow flexible layouts.

Suitable for narrow spaces

Specialised strip options can be useful for narrow lawn areas.

Good option for slopes

The slower application rate can help where runoff is a concern.

Hunter’s residential materials describe standard MP Rotators as having a slow precipitation rate and also offer MP800 options for smaller spaces. (Hunter Industries)

Disadvantages of MP Rotators

MP Rotators aren’t automatically the best choice for every lawn.

They can require:

  • Correct operating pressure
  • Correct spacing
  • Proper nozzle selection
  • Adequate filtration
  • More careful adjustment

They also generally take longer to apply a given amount of water than traditional spray nozzles.

That isn’t necessarily a disadvantage.

It simply means the irrigation controller needs to be programmed appropriately.

What Is a Rotor Sprinkler?

A rotor is a sprinkler that rotates a stream of water across a larger area.

Gear-drive rotors are commonly used for medium and large lawns.

They are designed for longer throw distances than many conventional spray heads.

For example, Rain Bird’s 42SA+ rotor is designed for medium to large residential zones and has a stated spray distance of approximately 26–38 feet, depending on operating conditions. (Rain Bird)

What Are Rotors Best For?

Rotors are generally best suited to:

  • Large lawns
  • Large backyards
  • Open turf
  • Sports fields
  • Large landscaped areas
  • Areas requiring longer throw distances

If your lawn is:

20 m × 15 m

a rotor system may make much more sense than trying to cover the entire area with small fixed sprays.

Advantages of Rotors

Long throw distance

Rotors can cover much larger areas.

Fewer sprinkler heads

Because each rotor can cover a larger area, you may need fewer heads.

Good for large lawns

They are well suited to open turf.

Adjustable coverage

Many rotors allow adjustment of:

  • Arc
  • Radius
  • Nozzle
  • Direction

Rain Bird’s 42SA+, for example, offers adjustable 40°–360° coverage and multiple nozzle options. (Rain Bird)

Disadvantages of Rotors

Rotors aren’t ideal for every lawn.

They can be unsuitable for:

  • Very small lawns
  • Narrow strips
  • Tiny garden beds
  • Small corners
  • Areas where a long throw would overspray surrounding surfaces

A rotor throwing water 10 metres isn’t particularly useful if your lawn is only 4 metres wide.

MP Rotator vs Rotor

This is one of the most important comparisons.

Both can cover relatively large areas, but they work differently.

MP Rotator

Generally installed as a nozzle on a pop-up body.

Best for:

  • Small-medium lawns
  • Narrow areas
  • Irregular areas
  • Lower application rates
  • Residential landscapes

Rotor

A dedicated rotating sprinkler.

Best for:

  • Medium-large lawns
  • Large open areas
  • Longer throw distances
  • Large turf zones

Which one should you choose?

If your lawn requires:

Shorter to medium throw → MP Rotator

Longer throw → Rotor

But don’t choose based on throw distance alone.

Pressure, flow, precipitation rate and spacing still matter.

Pop-Up vs MP Rotator

This is another important comparison.

The main difference is the nozzle technology.

Traditional Pop-Up Spray

Produces a fixed spray pattern.

MP Rotator

Produces rotating streams.

If you’re replacing traditional fixed sprays, MP Rotators can be an attractive upgrade where their performance characteristics suit the lawn.

They can also be installed on compatible spray bodies.

Which Uses Less Water?

This question needs some care.

You shouldn’t assume:

Rotor = less water

or:

MP Rotator = less water

or:

Pop-up = more water

The actual water use depends on:

  • Nozzle
  • Pressure
  • Flow
  • Arc
  • Run time
  • Spacing
  • Weather
  • Controller settings

However, certain sprinkler technologies are designed to apply water more slowly or more uniformly.

Hunter states MP Rotators can reduce water use by up to 30% compared with traditional sprays. (Hunter Industries)

Rain Bird also markets certain rotary products as lower-precipitation alternatives to conventional pop-up sprays. Its 22SA mini rotor, for example, is designed with a slow distribution rate and is marketed for use on slopes and newly seeded areas. (Rain Bird)

The important point is:

A water-efficient sprinkler still needs to be correctly designed and programmed.

Which Sprinkler Is Best for a Small Lawn?

For a small lawn, consider:

Option 1 — Pop-Up Spray

Good for:

  • Very small areas
  • Simple rectangular lawns
  • Short throw distances

Option 2 — MP Rotator

Good for:

  • Water-conscious designs
  • Small irregular lawns
  • Areas where slower application is useful

Option 3 — Mini Rotor

Can work where a slightly longer throw is required.

The best option depends on the actual lawn dimensions and available water supply.

Which Sprinkler Is Best for a Medium Lawn?

For medium lawns, you may consider:

MP Rotators

or:

Small/medium rotors

For example, a:

10 m × 12 m lawn

could potentially be designed using MP Rotators or smaller rotors depending on the required spacing and hydraulic capacity.

Always design according to the manufacturer’s performance charts.

Which Sprinkler Is Best for a Large Lawn?

For larger lawns, rotors are often the most practical option.

For example:

20 m × 20 m

or:

30 m × 15 m

may be more suitable for rotor irrigation.

Large-area rotors are specifically designed to cover larger distances. Hunter’s residential design guide describes large-area rotors as a category intended for areas around 8 m × 8 m and larger, while noting this is a guideline rather than a strict rule. (Hunter Industries)

What About Narrow Lawn Strips?

Narrow strips can be difficult.

Imagine a lawn:

2 m wide × 12 m long

A large rotor isn’t appropriate.

You may be better off using:

  • Strip nozzles
  • MP Rotators
  • Rotary nozzles
  • Carefully selected pop-up sprays

The sprinkler needs to match the shape of the lawn.

What About Corner Areas?

Corners require special attention.

If you install a full-circle sprinkler in a corner, much of the water may land outside the lawn.

Instead, you can use:

90° coverage

for corners.

Along the edge:

180° coverage

And in an open area:

360° coverage

This helps keep water where it belongs.

What About Sloping Lawns?

Slopes can be challenging because water can run downhill before it infiltrates the soil.

A slower application rate can be useful.

This is one reason rotating-stream sprinklers such as MP Rotators can be worth considering for suitable sloped areas.

Hunter specifically describes MP Rotators as useful for reducing runoff in tight soils and steep slopes. (Hunter Industries)

However, the sprinkler is only one part of the solution.

You should also consider:

  • Soil
  • Watering cycles
  • Pressure
  • Precipitation rate
  • Drainage
  • Slope severity

Can You Mix Pop-Ups, MP Rotators and Rotors?

You can have all three types on the same property.

However, you generally shouldn’t simply put them all on the same irrigation zone.

Why?

Because they can have different:

  • Precipitation rates
  • Flow rates
  • Operating pressures
  • Watering times

Hunter specifically advises that large-area rotors and rotating-stream spray sprinklers should not be installed on the same zone as small-area fixed spray sprinklers. (Hunter Industries)

A better approach is:

Zone 1

Pop-up sprays

Zone 2

MP Rotators

Zone 3

Rotors

This allows each irrigation type to be scheduled appropriately.

How Much Water Does Each Type Use?

There isn’t one fixed number.

The flow depends on:

  • Nozzle
  • Pressure
  • Arc
  • Model
  • Radius

For example, a quarter-circle nozzle and a full-circle nozzle can have very different flow requirements.

Likewise, two rotors can have different nozzle configurations and therefore different flow rates.

Always use the manufacturer’s performance chart for the exact product.

Pressure Is Extremely Important

A sprinkler’s advertised radius is usually based on a particular pressure.

If your system doesn’t have enough pressure, the sprinkler may not achieve its advertised throw.

You might see:

Manufacturer radius: 9 m

but:

Actual radius: 6 m

because the system isn’t providing the required pressure.

This can create dry areas.

Before choosing your sprinkler, determine:

Available pressure

and:

Available flow

Don’t Choose a Sprinkler Based on Radius Alone

This is one of the biggest mistakes homeowners make.

Someone sees:

“This sprinkler throws 10 metres.”

and thinks:

“My lawn is 20 metres wide, so two sprinklers will cover it.”

Not necessarily.

You need to consider:

  • Pressure
  • Flow
  • Wind
  • Spacing
  • Head-to-head coverage
  • Precipitation rate
  • Nozzle selection

A sprinkler’s maximum radius is only one part of the design.

Head-to-Head Coverage

A properly designed lawn irrigation system should generally aim for appropriate overlapping coverage.

For example:

●──────●

│ │

●──────●

The sprinklers need to be positioned so the water reaches neighbouring sprinkler locations appropriately.

This helps compensate for the natural variation in water distribution across a sprinkler’s pattern.

Which Is Best for Water Efficiency?

If water efficiency is a major priority, don’t simply choose the product with the best marketing claim.

Look at the entire system.

A water-efficient design should include:

  • Appropriate sprinkler selection
  • Correct pressure
  • Correct spacing
  • Matched precipitation
  • Proper zone sizing
  • Good controller programming
  • Rain/weather considerations
  • Regular maintenance

For example, Hunter describes MP Rotators as providing matched precipitation across different arcs and radii, while Rain Bird’s rotary and rotor products also use nozzle technologies intended to improve distribution. (Hunter Industries)

Which Is Easiest to Install?

Pop-Up Sprays

Generally the simplest for small DIY systems.

MP Rotators

Also relatively straightforward because they can use compatible spray bodies.

Rotors

Can require more planning because they are often used on larger systems with greater flow requirements.

However, the difficulty depends more on the overall irrigation design than the sprinkler itself.

Which Is Best for DIY?

For a small residential lawn:

Pop-up sprinklers or MP Rotators

can be good DIY options.

For a larger lawn:

Rotors

may be appropriate, but hydraulic design becomes more important.

Before starting, measure:

  • Water pressure
  • Flow
  • Lawn dimensions

Then design your zones.

Which Is Best for Professional Irrigation?

All three can be used professionally.

Professional irrigation designers choose based on:

  • Site dimensions
  • Water supply
  • Soil
  • Plant type
  • Required precipitation
  • Pressure
  • Flow
  • Coverage
  • Budget
  • Maintenance requirements

A professional system may use several sprinkler technologies across different zones.

What Sprinkler Should You Buy?

Use this simple guide.

Choose Pop-Up Sprays if:

✔ You have a small lawn

✔ You need short throw distances

✔ You have lots of small areas

✔ You need different spray patterns

✔ You need precise corner coverage

Choose MP Rotators if:

✔ You want rotating-stream coverage

✔ You have small-medium lawns

✔ You have narrow or irregular areas

✔ You want a slower application rate

✔ You want a potentially more water-efficient alternative to traditional sprays

Choose Rotors if:

✔ You have a large lawn

✔ You need long throw distances

✔ You have large open turf

✔ You want fewer sprinkler heads

✔ Your water supply can support the required flow

Example: Front Lawn

Imagine your front lawn is:

6 m × 8 m

You could consider:

Pop-up sprays

or:

MP Rotators

depending on your water pressure and required coverage.

A large rotor may be unnecessary.

Example: Backyard Lawn

Your backyard is:

12 m × 15 m

You could potentially consider:

MP Rotators

or:

small/medium rotors

depending on the layout and hydraulic design.

Example: Large Backyard

Your backyard is:

20 m × 25 m

Rotors may become a more practical solution.

You could design several rotor zones based on available flow and pressure.

The exact sprinkler layout would depend on the product’s performance specifications.

Example: Narrow Side Lawn

Your side lawn is:

2 m × 10 m

A large rotor would be a poor choice.

Instead, consider:

  • Strip nozzles
  • MP Rotators
  • Rotary nozzles
  • Narrow spray patterns

The goal is to water the grass without spraying the house, fence or path.

What About Rain Bird?

Rain Bird offers both conventional spray products and rotor/rotary products.

For example, Rain Bird’s 1800 series provides spray bodies and nozzle options for residential applications. (Rain Bird)

Rain Bird’s 22SA mini rotor is designed for multi-stream rotary coverage with a stated 17–24 ft spray distance. (Rain Bird)

Its 32SA and 42SA rotor ranges provide longer coverage for larger lawn applications. (Rain Bird)

So if you’re using Rain Bird, you can build a system around different sprinkler technologies depending on your property.

What About Hunter?

Hunter has a similarly broad range.

Its residential sprinkler categories include:

  • Spray bodies
  • MP Rotators
  • Rotors
  • Micro irrigation

Hunter’s design guidance specifically categorises residential sprinklers into large-area rotors, rotating-stream spray sprinklers and small-area fixed spray sprinklers. (Hunter Industries)

SprinklerPros stocks Hunter MP Rotators and other Hunter irrigation products. (Sprinklerpros)

The Biggest Mistake: Choosing Equipment Before Designing the Lawn

Don’t start by buying:

10 sprinklers

and then try to figure out where to put them.

Start with:

1. Measure the lawn

2. Check water pressure

3. Measure available flow

4. Draw the lawn

5. Mark sprinkler locations

6. Select sprinkler type

7. Select nozzle

8. Calculate zone flow

9. Select pipe size

10. Test the system

This approach produces a much better result.

Maintenance Tips

Regardless of which sprinkler you choose, maintenance matters.

Check your system regularly for:

Blocked nozzles

Clean or replace them.

Broken sprinkler heads

Replace damaged components.

Misaligned sprinklers

Adjust the arc so water stays on the lawn.

Leaks

Check fittings, risers and valves.

Overgrown grass

Make sure grass isn’t blocking pop-up heads.

Pressure problems

Investigate sudden changes in sprinkler performance.

Frequently Asked Questions

Are MP Rotators better than pop-up sprinklers?

MP Rotators are a type of rotating-stream nozzle that can be used with compatible pop-up bodies. They can offer advantages in suitable applications, particularly where a slower application rate and rotating streams are desirable.

Are rotors better than pop-up sprinklers?

Not necessarily. Rotors are generally better suited to larger areas, while pop-up sprays are often more appropriate for smaller lawns and short throw distances.

Are MP Rotators better than rotors?

Neither is universally better. MP Rotators are often suitable for small-to-medium areas, while rotors are generally better for larger areas requiring longer throw distances.

What is the best sprinkler for a small lawn?

Pop-up sprays or MP Rotators are often suitable choices. The correct option depends on lawn dimensions, pressure and flow.

What is the best sprinkler for a large lawn?

Rotors are often a practical choice for large lawns because they can provide longer throw distances and cover larger areas.

Do MP Rotators save water?

Hunter states that MP Rotators can use up to 30% less water than traditional spray nozzles under appropriate conditions. Actual savings depend on system design, scheduling and site conditions. (Hunter Industries)

Can I put rotors and MP Rotators on the same zone?

It is generally better to separate sprinkler types with different precipitation rates and operating characteristics. Hunter specifically advises against putting large-area rotors and rotating-stream sprinklers on the same zone as small-area fixed sprays. (Hunter Industries)

How far apart should sprinklers be?

Spacing depends on the sprinkler model, nozzle, pressure and required coverage. Follow the manufacturer’s performance specifications and design for appropriate overlap.

Can I use Hunter and Rain Bird sprinklers together?

It can be possible to use products from different manufacturers in the same overall irrigation system, provided the individual products are compatible and the hydraulic design is correct.

Should I use sprinklers or drip irrigation for my lawn?

Sprinklers are generally more practical for lawns. Drip irrigation is usually better suited to garden beds, shrubs, trees and targeted planting areas.

Final Verdict

So which sprinkler is best?

đŸ„‡ Small lawns

Pop-up sprinklers

đŸ„‡ Small-to-medium lawns

MP Rotators

đŸ„‡ Large lawns

Rotors

đŸ„‡ Narrow areas

MP Rotators or specialised strip nozzles

đŸ„‡ Slopes and runoff-prone areas

MP Rotators or other low-application-rate solutions

But remember:

There is no “best sprinkler” without knowing the property.

The right sprinkler depends on:

Lawn size

  • Attachment.tiff

Lawn shape

  • Attachment.tiff

Water pressure

  • Attachment.tiff

Water flow

  • Attachment.tiff

Soil

  • Attachment.tiff

Sprinkler spacing

  • Attachment.tiff

Required coverage

A $10 sprinkler installed incorrectly can perform worse than a more expensive sprinkler that has been properly designed.

The goal isn’t to buy the most expensive sprinkler.

The goal is to build the right irrigation system.

Build Your Lawn Irrigation System With SprinklerPros

Whether you’re looking for:

  • Pop-up sprinklers
  • Hunter MP Rotators
  • Rain Bird rotary nozzles
  • Gear-drive rotors
  • Sprinkler nozzles
  • Solenoid valves
  • Irrigation controllers
  • Poly pipe
  • Irrigation fittings

SprinklerPros can help you build the components required for your irrigation project.

SprinklerPros currently stocks Hunter MP Rotators and Rain Bird sprinkler products alongside controllers, valves and other irrigation equipment. (Sprinklerpros)

If you’re not sure which sprinkler is right for your lawn, start with the lawn dimensions, available water pressure and flow rate.

From there, you can design the system around the actual requirements of your property.

The right sprinkler isn’t the one with the biggest range — it’s the one that gives your lawn the right amount of water, in the right place, at the right pressure.
