Hunter Node Controller Guide (Setup, Wiring, Troubleshooting & Installation)

The Hunter Node is one of the most reliable battery-powered irrigation controllers used in residential and commercial irrigation systems across Australia. It is designed for areas where mains power is not available, making it ideal for valve boxes, gardens, parks, and remote irrigation zones.

In this guide, we’ll cover everything you need to know about the Hunter Node including setup, wiring, installation, troubleshooting, and recommended products.

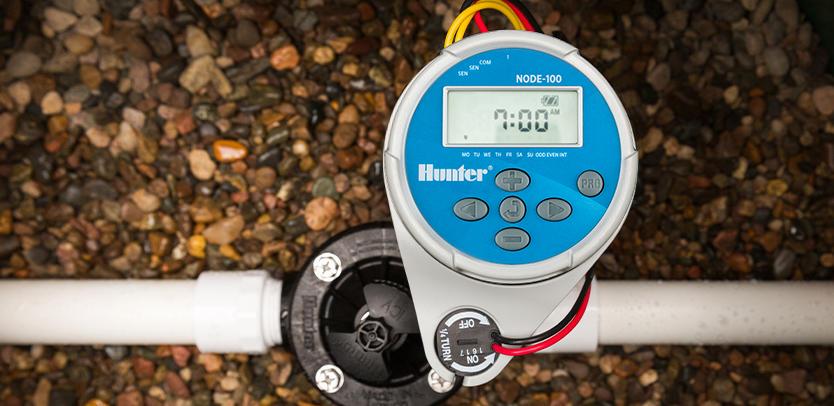

What is the Hunter Node?

The Hunter Node is a battery-operated irrigation controller that connects directly to solenoid valves. Instead of requiring 240V power, it runs on standard batteries, allowing irrigation systems to be installed in locations without electrical access.

It is commonly used for:

  • Residential garden irrigation systems
  • Street landscaping projects
  • Remote irrigation valve boxes
  • Retrofitting existing irrigation systems
  • Small to medium irrigation zones

The Node controls watering schedules by sending electrical signals to open and close valves at set times.

Key Features of Hunter Node

The Hunter Node is popular because it is simple, compact, and reliable.

Key features include:

  • Battery-powered operation (no mains wiring required)
  • Easy installation inside valve boxes
  • Compatible with standard irrigation solenoids
  • Weather-resistant housing
  • Simple programming interface
  • Suitable for multiple irrigation zones (depending on model)

How to Install Hunter Node (Step-by-Step Guide)

Installing the Hunter Node is straightforward when done correctly.

Step 1: Mount the controller

Install the controller inside a valve box or protected irrigation enclosure.

Make sure:

  • It is not exposed to flooding
  • Wiring can reach all solenoids easily
  • It is securely mounted and stable

Step 2: Wire the solenoid valves

Each irrigation valve has two wires:

  • One wire connects to a common wire
  • The other connects to a zone terminal

All valves share a single common wire.

Basic setup example:

  • Valve 1 → Zone 1 + Common
  • Valve 2 → Zone 2 + Common
  • Valve 3 → Zone 3 + Common

Step 3: Insert the battery

Install a high-quality battery into the controller.

👉 Weak batteries are the most common cause of irrigation failures.

Step 4: Program watering schedule

Set:

  • Start times
  • Run durations
  • Watering days

Start with conservative watering times and adjust based on plant needs and seasonal changes.

Wiring Diagram Explained

The Hunter Node uses a shared common wire system:

  • All valves connect back to one common wire
  • Each valve has its own zone wire
  • The controller activates zones individually

This simplifies installation and reduces wiring complexity.

Common Hunter Node Problems & Fixes

1. Sprinkler zone not turning on

Check:

  • Battery condition
  • Loose wiring connections
  • Faulty solenoid
  • Blocked or stuck valve

2. Controller not responding

  • Replace battery
  • Reset controller
  • Check corrosion in terminals
  • Ensure wiring is intact

3. One zone stays on

Possible causes:

  • Debris inside valve
  • Damaged solenoid coil
  • Electrical short between wires

4. Sprinklers running weak or uneven

This is usually NOT the controller.

Check:

  • Water pressure
  • Blocked filters
  • Incorrect pipe sizing
  • Partially closed valves

5. Controller losing settings

  • Battery is low or failing
  • Internal memory reset due to power loss

Best Products to Use with Hunter Node

To get the best performance from your system, pair the Hunter Node with quality irrigation components:

  • Hunter solenoid valves
  • High-quality irrigation pipe (25mm or 32mm)
  • Inline irrigation filters
  • Pressure regulators (if using dripline)
  • Rain sensors for water efficiency

Hunter Node vs Wired Irrigation Controllers

Use Hunter Node if:

  • No electrical power is available
  • You need a simple irrigation system
  • You are upgrading an existing valve box
  • You want fast installation

Use wired controllers if:

  • You have mains power available
  • You need advanced smart irrigation features
  • You are running large commercial systems

Installation Tips from Professionals

To ensure long-term reliability:

  • Always test wiring before closing the valve box
  • Label each zone wire clearly
  • Use waterproof connectors
  • Replace batteries annually
  • Avoid mixing old and new solenoids

FAQs – Hunter Node Controller

How long does the battery last?

Typically 1–2 years depending on usage and conditions.

Can Hunter Node run multiple zones?

Yes, depending on the model configuration.

Is Hunter Node waterproof?

It is weather-resistant but should always be installed inside a valve box for protection.

Why is my Hunter Node not working?

Most issues are caused by battery failure, loose wiring, or faulty solenoids.

Final Thoughts

The Hunter Node is a simple, reliable, and cost-effective irrigation controller for systems without mains power. When installed correctly with quality valves and wiring, it can operate efficiently for years with minimal maintenance.

If you're building or upgrading an irrigation system, choosing the right controller and components is essential for long-term performance.
