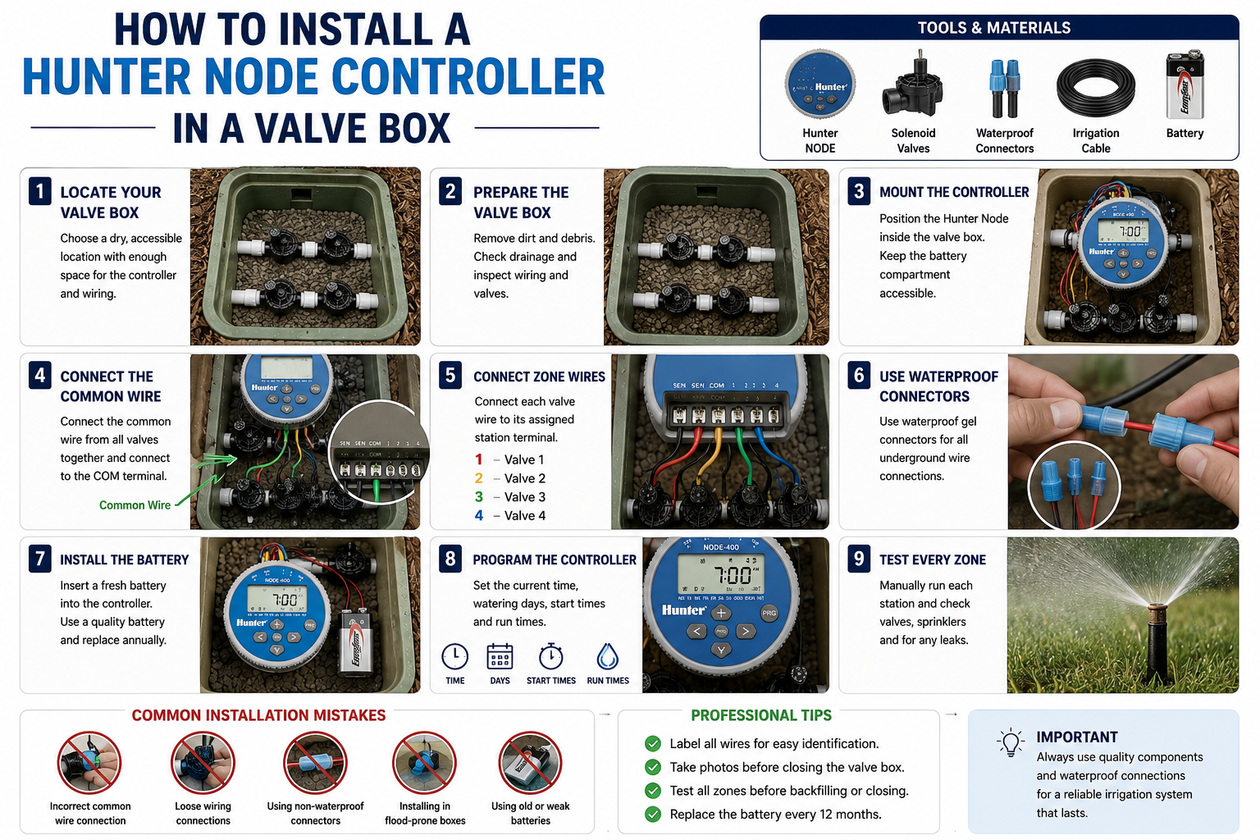

How to Install a Hunter Node Controller in a Valve Box

The Hunter Node is one of the most popular battery-operated irrigation controllers available for residential and commercial irrigation systems. Because it doesn't require mains power, it is ideal for installation directly inside irrigation valve boxes.

This guide explains how to install a Hunter Node controller correctly, connect solenoid valves, and ensure your irrigation system operates reliably for years.

Why Install a Hunter Node Controller?

The Hunter Node is designed specifically for situations where electrical power is unavailable.

Common applications include:

  • Residential gardens
  • Irrigation valve boxes
  • Parks and reserves
  • Commercial landscaping
  • Remote irrigation systems
  • Garden bed irrigation

Because it operates on battery power, installation is simple and cost-effective.

Tools & Materials Required

Before starting, gather the following:

Irrigation Components

  • Hunter Node Controller
  • Solenoid Valves
  • Waterproof Connectors
  • Irrigation Cable
  • Fresh Battery

Basic Tools

  • Wire Strippers
  • Screwdriver
  • Cable Ties
  • Multimeter (optional)

Having everything ready makes installation much easier.

Step 1: Locate Your Valve Box

The Hunter Node should be installed inside a suitable irrigation valve box.

Choose a location that:

  • Remains reasonably dry
  • Is easy to access
  • Protects the controller from direct sunlight
  • Allows sufficient space for wiring

Most installations place the controller directly above the irrigation valves.

Step 2: Prepare The Valve Box

Before installation:

  • Remove dirt and debris
  • Check drainage is adequate
  • Inspect existing valves
  • Confirm wiring is in good condition

A clean valve box improves long-term reliability.

Step 3: Mount The Hunter Node Controller

Position the controller inside the valve box.

Ensure:

  • Wires can reach all valves
  • The battery compartment remains accessible
  • The controller is not sitting in standing water

Secure the controller according to manufacturer recommendations.

Step 4: Connect The Common Wire

Every irrigation valve shares one common wire.

Connect:

Valve 1 ā†’ Common

Valve 2 ā†’ Common

Valve 3 ā†’ Common

Valve 4 ā†’ Common

Then connect the common wire to the COM terminal on the Hunter Node.

This forms the return path for all irrigation zones.

Step 5: Connect Zone Wires

Each valve receives its own dedicated station wire.

Example:

Station 1

Connect to Valve 1

Station 2

Connect to Valve 2

Station 3

Connect to Valve 3

Station 4

Connect to Valve 4

Double-check all wiring before proceeding.

Step 6: Use Waterproof Connectors

This is one of the most important steps.

Always use:

  • Waterproof gel connectors
  • Outdoor-rated wiring accessories

Underground irrigation systems are constantly exposed to moisture.

Poor connections are the leading cause of controller failures.

Step 7: Install The Battery

Insert a fresh battery into the Hunter Node.

For best results:

  • Use quality batteries
  • Avoid old batteries
  • Replace batteries annually

Battery condition directly affects valve performance.

Step 8: Program The Controller

Set:

  • Current time
  • Watering days
  • Start times
  • Run durations

Begin with conservative watering schedules and adjust as required.

Step 9: Test Every Zone

Run each station manually.

Verify:

āœ… Valve opens correctly

āœ… Sprinklers operate normally

āœ… Water pressure is adequate

āœ… No leaks are present

Testing now prevents future troubleshooting.

Common Installation Mistakes

Incorrect Common Wire Connection

Symptoms:

  • Zones won't start
  • Multiple zones activate

Always verify common wire continuity.

Loose Wiring Connections

Loose joins often cause:

  • Intermittent operation
  • Valve failures
  • Controller errors

Use proper waterproof connectors.

Installing In Flood-Prone Valve Boxes

Standing water can damage:

  • Wiring
  • Connectors
  • Batteries

Always ensure adequate drainage.

Using Old Batteries

Many "controller problems" are actually battery problems.

Start with a fresh battery.

Professional Installation Tips

Label All Zone Wires

Future maintenance becomes significantly easier.

Keep A Wiring Diagram

Take photos before closing the valve box.

Test Before Backfilling

Never bury valves or wiring until all zones have been tested.

Replace Batteries Every Year

Preventative maintenance reduces breakdowns.

Best Products For Hunter Node Installations

For the most reliable system, pair your Hunter Node with:

  • Hunter Solenoid Valves
  • Waterproof Gel Connectors
  • Irrigation Cable
  • Rain Sensors
  • Pressure Regulators

Frequently Asked Questions

Can a Hunter Node be installed underground?

Yes.

The controller is specifically designed for installation inside irrigation valve boxes.

Does Hunter Node require mains power?

No.

It operates entirely on battery power.

How long does installation take?

Most residential installations take between 30ā€“60 minutes.

How often should batteries be replaced?

Generally once every 12 months for reliable operation.

Final Thoughts

Installing a Hunter Node controller is one of the easiest ways to automate irrigation systems where mains power is unavailable. When installed correctly with quality valves, waterproof wiring, and regular battery maintenance, the system can provide years of reliable performance.

Whether you're upgrading an existing irrigation system or building a new one, the Hunter Node remains one of the most trusted battery-powered irrigation controllers available.
