How to Design a Sprinkler System for Your Lawn: Complete Guide

Designing a sprinkler system for your lawn isn’t simply a matter of putting sprinkler heads around the garden and connecting them to a tap.

A properly designed irrigation system needs to deliver the right amount of water, to the right area, at the right pressure and at the right time.

Whether you’re designing a small backyard irrigation system or a larger multi-zone lawn system, the basic process is the same.

You need to understand:

  • Your lawn and garden layout
  • Available water pressure
  • Available water flow
  • Sprinkler coverage
  • Sprinkler spacing
  • Pipe size
  • Irrigation zones
  • Solenoid valves
  • Controller capacity
  • Nozzle selection

In this guide, we’ll show you how to design a sprinkler system step by step.

What Is a Sprinkler System?

A sprinkler system is an automated irrigation network designed to distribute water across a lawn, garden or landscaped area.

A typical automatic irrigation system consists of:

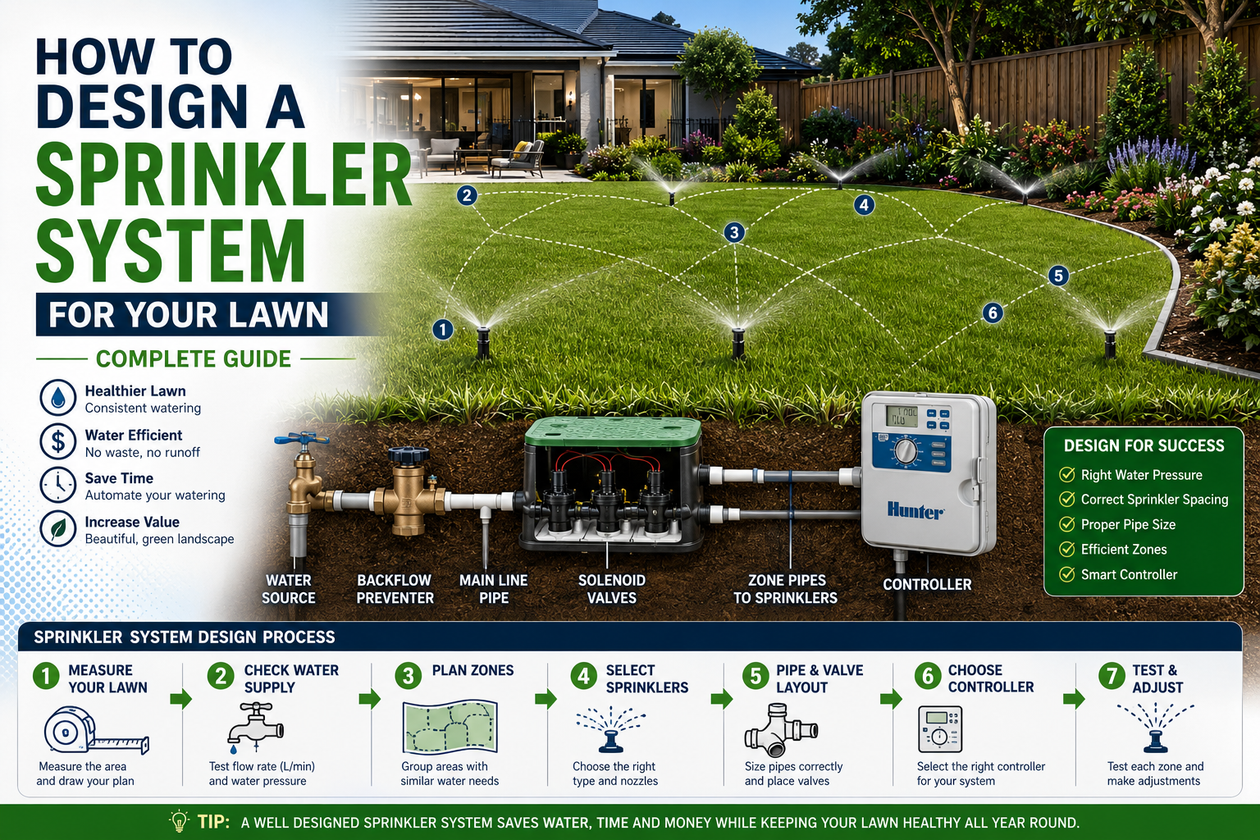

Water source → Backflow protection → Main pipe → Solenoid valves → Zone pipe → Sprinklers → Controller

The controller activates the appropriate valve at a scheduled time, allowing water to flow through a particular irrigation zone.

A properly designed system should provide relatively even coverage across the area without excessive runoff, misting or dry spots.

Step 1: Measure Your Lawn

Before buying any irrigation equipment, measure the area you want to water.

You don’t need an expensive surveying tool.

A basic site plan can be created using:

  • Paper and pencil
  • Measuring tape
  • Property plans
  • Satellite imagery
  • A measuring app

Record the approximate:

  • Length
  • Width
  • Lawn area
  • Garden bed area
  • Building locations
  • Driveways
  • Paths
  • Fences
  • Trees
  • Other areas that don’t need watering

Example

Imagine your backyard looks like this:

Backyard: 12 m × 8 m

Garden bed: 8 m × 1.5 m

Side passage: 10 m × 2 m

You shouldn’t necessarily use the same sprinkler system for all three areas.

The lawn may require sprinklers, while the garden bed could be better suited to drip irrigation.

Step 2: Draw Your Irrigation Plan

Create a simple plan of the property.

Mark:

  • House
  • Lawn
  • Garden beds
  • Water source
  • Existing tap
  • Trees
  • Paths
  • Driveways
  • Areas that don’t require irrigation

Then mark where you think the sprinklers could be positioned.

This is called a sprinkler layout.

Your goal isn’t to fit as many sprinklers as possible.

Your goal is to achieve good coverage using the appropriate sprinkler type and spacing.

Step 3: Identify Your Water Source

Next, determine where the irrigation system will get its water.

Common water sources include:

  • Mains water
  • Rainwater tanks
  • Bore water
  • Pumps
  • Dedicated irrigation supplies

The water source determines how much water your system can deliver.

This is extremely important because your sprinkler system needs enough flow and pressure to operate correctly.

Step 4: Measure Your Water Flow

One of the most important measurements in irrigation design is flow rate.

Flow is normally measured in:

Litres per minute (L/min)

For example, you may determine that your water supply can provide approximately:

40 L/min

You then compare this with the water requirements of your sprinkler heads.

If each sprinkler uses 8 L/min:

40 ÷ 8 = 5 sprinklers

That doesn’t automatically mean you should install five sprinklers on the zone.

You also need to consider operating pressure, pipe friction, elevation and the manufacturer’s performance specifications.

The calculation gives you a starting point for designing the zone.

Step 5: Check Your Water Pressure

Flow rate and pressure are not the same thing.

Your irrigation system needs both.

Low pressure can cause:

  • Short sprinkler radius
  • Poor coverage
  • Weak spray
  • Dry patches
  • Uneven watering

Excessive pressure can cause:

  • Misting
  • Poor distribution
  • Excessive water use
  • Component damage

Always check the pressure requirements of the sprinklers you’re planning to use.

A sprinkler may be capable of covering a particular radius at its specified pressure, but that doesn’t mean it will achieve the same radius at your property.

Step 6: Choose the Right Sprinkler

Different sprinkler types are designed for different applications.

Pop-Up Spray Sprinklers

Pop-up sprays are commonly used for smaller lawn areas and garden applications.

They are useful where:

  • Throw distances are relatively short
  • The lawn is small
  • Precise coverage is required

Different nozzles can provide different spray patterns and flow rates.

MP Rotators

MP Rotators use rotating streams of water and are popular for residential lawns.

They can be useful for:

  • Smaller lawns
  • Narrow areas
  • Irregularly shaped lawns
  • Water-efficient irrigation designs

The nozzle needs to be selected according to the required radius and arc.

Gear-Drive Rotors

Rotors are generally better suited to larger lawn areas.

They can provide longer throw distances than typical spray heads.

They are often used for:

  • Large backyards
  • Sports turf
  • Large residential lawns
  • Commercial landscapes

Drip Irrigation

Drip irrigation is generally more suitable for:

  • Garden beds
  • Shrubs
  • Vegetable gardens
  • Trees
  • Narrow planting areas

Rather than spraying water over the entire area, drip irrigation delivers water closer to the plants.

Step 7: Use Head-to-Head Coverage

One of the most important rules in sprinkler design is head-to-head coverage.

This means the spray from one sprinkler should generally reach the next sprinkler.

For example:

Sprinkler → ← Sprinkler

The streams should overlap rather than stopping halfway between the heads.

Why?

Because sprinkler distribution is not perfectly uniform.

The area closest to the sprinkler often receives more water than the outer edge.

By designing for appropriate overlap, you can achieve much more consistent coverage.

Step 8: Don’t Space Sprinklers Based Only on Their Maximum Radius

Suppose a sprinkler manufacturer states that a sprinkler has a maximum radius of:

10 metres

You shouldn’t automatically place sprinklers 20 metres apart.

The actual design needs to consider the manufacturer’s recommended spacing, operating pressure and precipitation characteristics.

Wind can also affect sprinkler distribution.

For exposed properties, spray can be pushed away from its intended location.

That’s another reason proper layout matters.

Step 9: Divide the Lawn Into Irrigation Zones

You usually shouldn’t run every sprinkler on the property at the same time.

Instead, divide the irrigation system into zones.

For example:

Zone 1

Front lawn

Zone 2

Back lawn

Zone 3

Side lawn

Zone 4

Garden beds

Zone 5

Vegetable garden

Each zone can have its own valve and watering schedule.

This allows the irrigation system to operate within the limits of the available water supply.

Why Do Irrigation Systems Need Zones?

Imagine your water supply can provide approximately:

30 L/min

But your entire property requires:

70 L/min

You can’t simply operate everything simultaneously and expect the sprinklers to perform correctly.

Instead, divide the system into zones.

For example:

Zone 1 = 25 L/min

Zone 2 = 25 L/min

Zone 3 = 20 L/min

The controller can operate each zone separately.

This helps maintain the required pressure and flow.

Step 10: Choose Your Solenoid Valves

Each automatic irrigation zone normally requires a valve.

The solenoid valve is controlled by the irrigation controller.

When the controller activates Zone 1, the Zone 1 valve opens.

When the watering period ends, the valve closes and the controller moves to the next zone.

A typical valve arrangement might look like:

Water Supply

↓

Master Valve

↓

Valve Manifold

↓

Zone 1 | Zone 2 | Zone 3 | Zone 4

↓

Sprinklers

Using quality irrigation valves is important because the valves may operate thousands of times over the life of the system.

Step 11: Choose the Correct Pipe Size

Pipe sizing is another important part of irrigation design.

Common irrigation pipe sizes include:

  • 19 mm
  • 25 mm
  • 32 mm
  • Larger mains and commercial sizes

The correct pipe size depends on:

  • Flow rate
  • Pipe length
  • Pressure
  • Number of sprinklers
  • Elevation
  • Fittings
  • System design

Using pipe that is too small can increase friction losses.

This can reduce pressure at the sprinkler heads.

A common mistake

Someone may think:

“The smaller pipe is cheaper, so I’ll use that.”

But saving money on pipe can create poor sprinkler performance.

It’s usually better to size the pipe based on the hydraulic requirements of the system.

Step 12: Select the Correct Nozzles

A sprinkler body and nozzle are not necessarily the same thing.

The nozzle determines important characteristics such as:

  • Flow rate
  • Radius
  • Spray pattern
  • Arc
  • Distribution

For example, you might use:

90° nozzle for a corner

180° nozzle along an edge

360° nozzle in an open area

This can make the sprinkler layout much more efficient.

Instead of watering paths, driveways and fences, you can select the appropriate arc for the lawn.

Step 13: Design Corners First

Corners are usually some of the easiest locations to start your sprinkler layout.

For a rectangular lawn, you could initially place:

90° sprinklers in the corners

Then add:

180° sprinklers along the sides

Finally:

360° sprinklers in the middle

This is only a basic example.

Actual sprinkler placement should be based on the manufacturer’s radius, operating pressure and required coverage.

Step 14: Design the Sprinkler Layout

For a simple rectangular lawn, your layout might look approximately like this:

●──────●──────●

│ │

│ │

●──────●──────●

Each circle represents a sprinkler.

The objective is to provide overlapping coverage across the lawn.

For irregular lawns, you may need different sprinkler arcs and multiple sprinkler types.

Step 15: Separate Lawn and Garden Irrigation

Don’t automatically put lawn sprinklers and garden beds on the same zone.

Grass and garden plants can have very different watering requirements.

For example:

Lawn

Pop-up sprinklers or rotors

Garden beds

Drip irrigation

Trees

Deep watering or dedicated drip/micro irrigation

Keeping different irrigation types on separate zones gives you much better control.

Step 16: Choose an Irrigation Controller

The controller is the brain of the system.

Basic controllers can operate several zones according to programmed schedules.

More advanced controllers can offer:

  • Wi-Fi
  • Smartphone control
  • Weather-based scheduling
  • Seasonal adjustment
  • Rain sensor compatibility
  • Flow monitoring
  • Multiple programs

For a small system, a basic controller may be enough.

For a larger residential or commercial system, a more advanced controller can provide much greater flexibility.

SprinklerPros offers irrigation controllers from leading brands including Hunter and Rain Bird.

Step 17: Add Rain and Soil Sensors

Sensors can make an irrigation system smarter.

Rain Sensor

A rain sensor can prevent irrigation from running when sufficient rainfall has occurred.

Soil Moisture Sensor

A soil moisture sensor can help determine whether the soil actually requires additional water.

Sensors aren’t essential for every irrigation system, but they can be useful where water efficiency and automation are priorities.

Step 18: Consider Elevation Changes

Is your lawn completely flat?

If not, elevation needs to be considered.

Water behaves differently when moving uphill or downhill.

A significant elevation change can affect pressure.

This may require:

  • Pressure regulation
  • Different zones
  • Check valves
  • Different sprinkler selection
  • More careful hydraulic design

A system that works perfectly on a flat lawn may need additional planning on a sloped property.

Step 19: Check Your Sprinkler Precipitation

Your sprinklers don’t just need to reach the correct distance.

They also need to deliver water at an appropriate rate.

If one section receives substantially more water than another, you can end up with:

Overwatered areas + dry areas

The goal is relatively consistent precipitation across the zone.

This is one reason professional irrigation design goes beyond simply measuring sprinkler radius.

Step 20: Test Every Zone

Once your system is installed, don’t immediately bury everything and walk away.

Test each zone.

Check:

  • Does every sprinkler pop up?
  • Is the spray pattern correct?
  • Are there dry areas?
  • Are sprinklers spraying paths?
  • Are there leaks?
  • Is the pressure adequate?
  • Are the valves operating?
  • Is the controller activating the correct zone?
  • Is water pooling anywhere?

Fix problems before completing the installation.

Common Sprinkler Design Mistakes

1. Using too many sprinklers on one zone

Too many sprinklers can exceed the available flow.

This can cause pressure loss and poor coverage.

2. Ignoring water pressure

A sprinkler’s advertised radius is usually based on a specified operating pressure.

If your pressure is lower, the actual radius may be significantly smaller.

3. Poor sprinkler spacing

Sprinklers placed too far apart can create dry patches.

4. Watering concrete and paths

Incorrect nozzle selection can waste water by spraying:

  • Driveways
  • Footpaths
  • Buildings
  • Fences

5. Mixing different sprinkler types on the same zone

Different sprinkler types can have different precipitation rates.

Avoid mixing them together without considering their water application rates.

6. Using undersized pipe

Small pipe can increase friction losses and reduce available pressure.

7. Treating the entire property as one zone

Different areas often have different watering requirements.

8. Choosing equipment before designing the system

Don’t start by buying a box of sprinklers.

Start with the site plan and water supply.

Then choose the equipment.

Example: Designing a Small Backyard

Let’s consider a simple backyard measuring approximately:

12 m × 8 m

The lawn area is rectangular with a garden bed along one side.

Step 1

Measure the lawn.

Step 2

Identify the water source.

Step 3

Measure available flow.

Step 4

Measure operating pressure.

Step 5

Choose an appropriate sprinkler type.

Step 6

Place sprinklers around the perimeter.

Step 7

Check head-to-head coverage.

Step 8

Calculate the flow required.

Step 9

Divide sprinklers into zones if necessary.

Step 10

Select valves and controller capacity.

Step 11

Select appropriate pipe sizes.

Step 12

Test the system.

This approach is much more reliable than simply placing sprinklers wherever they appear to fit.

How Much Does a Sprinkler System Design Cost?

The cost of designing an irrigation system depends on the size and complexity of the project.

A simple DIY garden layout may cost nothing if you design it yourself.

A larger property may require professional irrigation design and hydraulic calculations.

The overall project cost can also include:

  • Sprinklers
  • Nozzles
  • Pipe
  • Valves
  • Controller
  • Valve boxes
  • Fittings
  • Sensors
  • Pumps
  • Labour

For a detailed breakdown of irrigation installation costs in Australia, see our guide:

How Much Does a Sprinkler System Cost in Australia? 2026 Guide

DIY Sprinkler Design vs Professional Design

DIY design can be suitable for:

  • Small gardens
  • Simple lawns
  • Basic drip systems
  • Straightforward layouts

Professional design becomes more valuable when you have:

  • Large lawns
  • Multiple zones
  • Significant elevation changes
  • Low or high water pressure
  • Pumps
  • Large water requirements
  • Complex landscaping
  • Commercial properties

A professional design can help avoid costly mistakes before installation begins.

How to Make Your Sprinkler System More Water Efficient

A good irrigation system isn’t simply about using less water.

It’s about applying water efficiently.

Some ways to improve efficiency include:

Use head-to-head coverage

This helps provide consistent coverage.

Water according to plant requirements

Don’t water every area for the same amount of time.

Use drip irrigation where appropriate

Garden beds often don’t need lawn sprinklers.

Use smart controllers

Weather-aware scheduling can help avoid unnecessary irrigation.

Install rain sensors

Don’t irrigate when rainfall has already provided sufficient moisture.

Fix leaks

A small leak running repeatedly can waste a significant amount of water.

Maintain sprinkler heads

Blocked or damaged nozzles can affect distribution.

Sprinkler System Design Checklist

Before installing your irrigation system, make sure you’ve considered:

☐ Property measurements

☐ Lawn measurements

☐ Garden areas

☐ Water source

☐ Flow rate

☐ Water pressure

☐ Sprinkler type

☐ Sprinkler radius

☐ Sprinkler spacing

☐ Head-to-head coverage

☐ Nozzle selection

☐ Irrigation zones

☐ Solenoid valves

☐ Pipe sizing

☐ Controller

☐ Sensors

☐ Pressure regulation

☐ Elevation changes

☐ Final zone testing

Frequently Asked Questions

What is the best way to design a sprinkler system?

Start by measuring the property and determining your available water flow and pressure. Then divide the property into appropriate irrigation zones and select sprinklers based on their required radius, pressure and flow.

How far apart should lawn sprinklers be?

Sprinkler spacing depends on the sprinkler model, nozzle, operating pressure, wind and required coverage. Rather than using one universal distance, follow the manufacturer’s performance specifications and design for appropriate overlap.

How many sprinklers can I put on one zone?

There is no fixed number. Calculate the total flow required by the sprinklers and compare it with your available flow and pressure.

Should sprinkler heads overlap?

Generally, yes. Proper overlap helps provide more consistent coverage and reduces dry areas.

Should garden beds and lawns be on separate zones?

Usually, yes. Lawn sprinklers and garden-bed irrigation often have different water requirements and should be controlled independently.

What pipe size should I use for sprinklers?

The correct pipe size depends on flow rate, pipe length, pressure, elevation and the number of sprinklers. Larger systems may require larger pipe to reduce friction losses.

Are MP Rotators good for lawns?

MP Rotators can be an excellent option for many residential lawns, particularly where controlled application and suitable spacing are possible. The correct model and nozzle should be selected based on the area and available pressure.

Do I need a smart irrigation controller?

Not necessarily. A basic controller can be sufficient for a simple system. Smart controllers become more useful when you want remote access, more advanced scheduling or sensor integration.

Can I design my own sprinkler system?

Yes, a simple residential system can be designed as a DIY project. However, larger or more complex systems require more careful consideration of hydraulic capacity, pressure, pipe sizing and zone design.

Final Thoughts: Design the System Before Buying the Sprinklers

The most important principle when designing an irrigation system is simple:

Don’t start with the sprinkler. Start with the property.

Measure the area.

Check your water supply.

Measure flow and pressure.

Divide the property into zones.

Choose the right sprinkler type.

Calculate the required flow.

Select the appropriate pipe, valves and controller.

Then test the system.

A properly designed sprinkler system can provide better lawn coverage, reduce water waste and make maintaining your garden significantly easier.

At SprinklerPros, we stock irrigation equipment for residential, commercial and landscaping applications, including sprinklers, rotors, nozzles, controllers, valves, pipe, fittings, drip irrigation and irrigation accessories.

Need help choosing the right irrigation equipment? Explore SprinklerPros and build your irrigation system around the requirements of your property.
