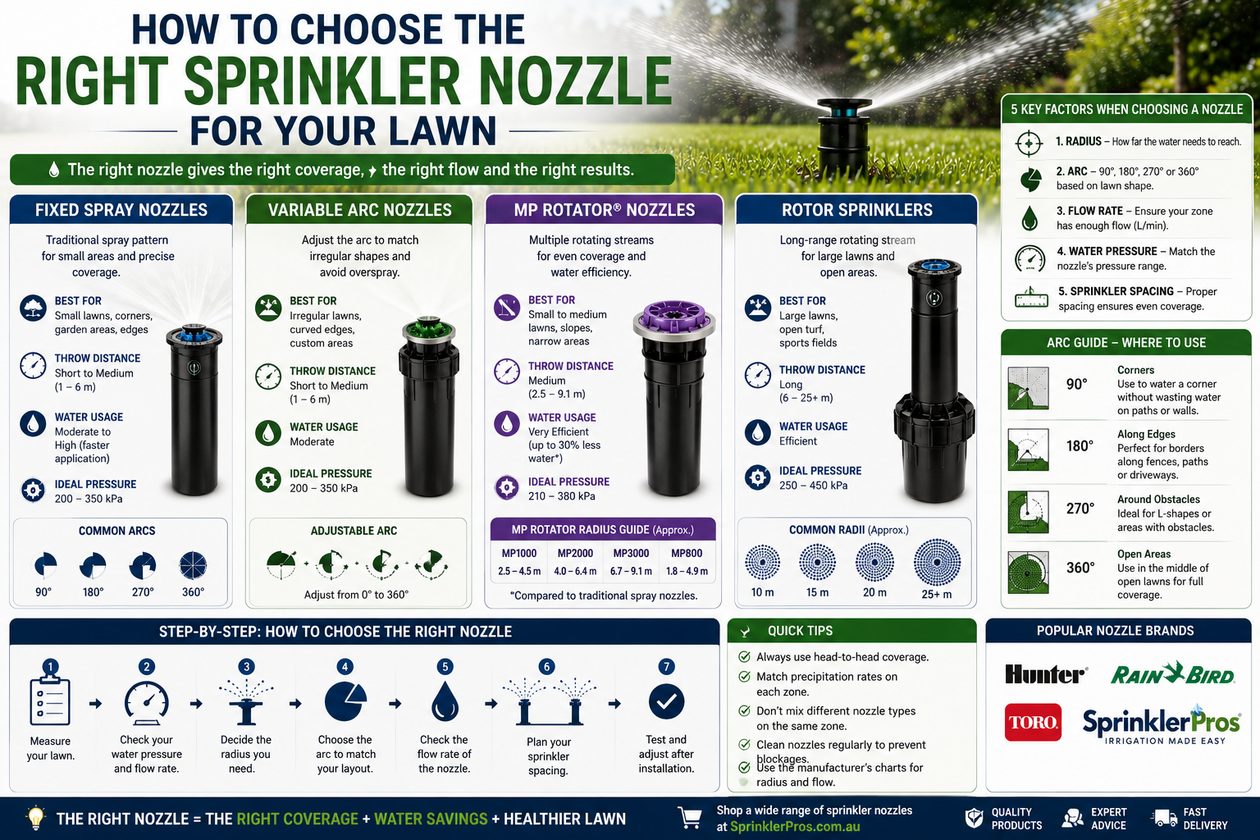

How to Choose the Right Sprinkler Nozzle for Your Lawn

Choosing the right sprinkler nozzle might seem like a small part of designing an irrigation system.

It isn’t.

The nozzle controls important characteristics of your sprinkler, including:

Water flow
Spray pattern
Radius
Arc
Distribution
Precipitation rate

Choosing the wrong nozzle can result in:

Dry patches
Overwatering
Water spraying onto paths
Poor coverage
Excessive runoff
Uneven lawn growth
Pressure problems

Whether you’re replacing an old nozzle or designing a completely new irrigation system, choosing the correct nozzle is essential.

In this guide, we’ll explain the different types of sprinkler nozzles and show you how to select the right one for your lawn.

What Is a Sprinkler Nozzle?

A sprinkler nozzle is the component that determines how water exits a sprinkler body.

For example, a pop-up sprinkler body can often accept different nozzle configurations.

The nozzle can determine:

Radius → how far the water travels

Arc → how much of a circle is watered

Flow → how much water is used

Pattern → how water is distributed

This means the same sprinkler body can potentially be configured for different areas simply by changing the nozzle.

Why Is Choosing the Right Nozzle Important?

Imagine you have a sprinkler in the corner of your lawn.

You don’t want it spraying:

The driveway
The footpath
Your house
The fence

You want the water directed onto the lawn.

A 90° nozzle may be appropriate for a corner.

Along the edge of a lawn, a 180° nozzle may be more suitable.

In an open area, a 360° nozzle may be appropriate.

The correct nozzle can therefore make your irrigation system much more efficient.

The 5 Things You Need to Know Before Choosing a Nozzle

Before selecting a nozzle, determine:

1. Required radius

How far does the sprinkler need to throw?

2. Required arc

Does the sprinkler need to cover:

90°
180°
270°
360°
A variable angle?

3. Available water pressure

Does your system provide enough pressure for the nozzle?

4. Available flow

How much water can the zone supply?

5. Sprinkler spacing

How far apart are the sprinkler heads?

These five factors should guide your nozzle selection.

What Is Sprinkler Nozzle Radius?

Radius is the distance from the sprinkler to the edge of the watered area.

For example:

5 metre radius

means the sprinkler is designed to throw water approximately 5 metres under its specified operating conditions.

If your lawn is 10 metres wide, you might initially think:

5 m + 5 m = 10 m

But sprinkler spacing should not be based on maximum radius alone.

You need to consider:

Operating pressure
Wind
Head-to-head coverage
Manufacturer specifications
Precipitation rate

What Is Sprinkler Nozzle Arc?

Arc determines the portion of the circle that the nozzle waters.

Common patterns include:

90° — Quarter Circle

Best for corners.

180° — Half Circle

Best for edges.

270° — Three-Quarter Circle

Useful for some irregular layouts.

360° — Full Circle

Best for open areas.

Some variable-arc nozzles allow you to adjust the watering angle to suit irregular lawn shapes.

SprinklerPros currently stocks Rain Bird variable-arc nozzles alongside fixed and specialty nozzle options. (Sprinklerpros)

90° vs 180° vs 360° Nozzles

Imagine a rectangular lawn.

Corner

Use approximately:

90°

Edge

Use approximately:

180°

Centre

Use approximately:

360°

This basic approach can help prevent water from being sprayed outside the lawn.

What Is Sprinkler Nozzle Flow Rate?

Flow rate is the amount of water the nozzle uses.

It is commonly measured in:

L/min — litres per minute

For example, suppose one nozzle uses:

5 L/min

and you have four identical sprinklers.

The theoretical zone demand would be:

5 × 4 = 20 L/min

This needs to be compared with your available water flow and operating pressure.

That’s why nozzle selection also affects how many sprinklers you can operate on one zone.

For more information, see our guide:

How Many Sprinklers Can You Run on One Zone?

Don’t Choose a Nozzle Based Only on Radius

This is one of the biggest irrigation mistakes.

A homeowner may see:

“10 metre radius”

and immediately choose that nozzle.

But you also need to consider:

Pressure
Flow
Arc
Precipitation rate
Spacing
Soil
Lawn shape

A nozzle that technically reaches the lawn may still provide poor distribution.

Fixed Spray Nozzles

Traditional fixed spray nozzles produce a relatively consistent spray pattern.

They are commonly available in:

Quarter-circle
Half-circle
Full-circle
Strip patterns

They’re particularly useful for:

Small lawns
Small garden areas
Corners
Narrow strips
Simple rectangular layouts

Rain Bird’s nozzle range includes fixed spray, rotary spray, bubbler and high-efficiency nozzle options. (Rain Bird Store)

Variable Arc Nozzles

Variable-arc nozzles allow you to adjust the spray angle.

This can be useful for irregular lawns.

For example, imagine a lawn shaped like an:

A standard 90°, 180° or 360° nozzle may not perfectly match the shape.

A variable-arc nozzle can allow you to adjust the coverage more precisely.

This can reduce unnecessary watering of:

Paths
Driveways
Buildings
Garden beds

SprinklerPros currently carries Rain Bird variable-arc nozzle products. (Sprinklerpros)

Rotary Nozzles

Rotary nozzles are different from traditional fixed spray nozzles.

Instead of producing a conventional fan-shaped spray, they distribute water through rotating streams.

Examples include:

Hunter MP Rotators
Rain Bird R-VAN rotary nozzles

SprinklerPros currently stocks both Hunter MP Rotators and Rain Bird R-VAN rotary nozzles. (Sprinklerpros)

What Is a Hunter MP Rotator?

Hunter MP Rotators are multi-stream rotating nozzles designed to apply water more slowly and uniformly than traditional spray nozzles.

Hunter’s specifications state that standard MP Rotators have a matched precipitation rate of approximately 10 mm/hr, while the MP800 family is approximately 20 mm/hr. (Hunter Industries)

Hunter’s published design guide also recommends head-to-head coverage when laying out MP Rotators. (Hunter Industries)

This makes MP Rotators an interesting option for:

Residential lawns
Narrow areas
Irregular lawns
Slopes
Runoff-prone areas

MP Rotator Nozzle Sizes

Hunter offers different MP Rotator families for different coverage distances.

For example, Hunter lists standard:

MP-1000

for approximately:

2.5–4.5 m radius

MP-2000

for approximately:

4.0–6.4 m radius

MP-3000

for approximately:

6.7–9.1 m radius

under specified operating conditions. (Hunter Industries)

This demonstrates an important point:

Don’t choose an MP Rotator simply because it’s an MP Rotator.

Choose the correct model for the required radius.

MP800 vs Standard MP Rotator

Hunter’s MP800 range is designed for shorter-radius applications.

Hunter specifies approximately:

1.8–3.5 m

for MP815 models and:

2.5–4.9 m

for MP820 models, depending on configuration and operating conditions. (Hunter Industries)

There is another important difference.

Standard MP Rotators have approximately:

10 mm/hr

matched precipitation.

MP800 models have approximately:

20 mm/hr.

Hunter therefore recommends zoning MP800 models separately from standard MP Rotators to maintain matched precipitation within a zone. (Hunter Industries)

What Is a Strip Nozzle?

Strip nozzles are designed for narrow areas.

Imagine a lawn:

1.5 m wide × 10 m long

A standard circular nozzle would waste water.

A strip nozzle can be designed specifically for this type of narrow space.

Hunter’s MP Rotator range includes left-corner, right-corner and side-strip configurations. (Hunter Industries)

These can be useful for:

Side passages
Narrow nature strips
Long garden strips
Narrow lawn areas

What Is a Corner Nozzle?

A corner nozzle is designed to water a specific corner area.

Instead of using:

360°

you might use:

90°

or a specialised corner pattern.

This can help keep water inside the lawn.

Choosing a Nozzle for a Corner

For a typical rectangular lawn:

Corner → 90°

This means the nozzle only waters approximately one quarter of the circle.

If the sprinkler is positioned correctly, most of its water should land on the lawn.

Choosing a Nozzle Along an Edge

For an edge:

180°

may be appropriate.

For example:

House

────────────

● → → →

The sprinkler can distribute water toward the lawn without unnecessarily spraying behind it.

Choosing a Full-Circle Nozzle

A 360° nozzle is generally used where the sprinkler is surrounded by the area that needs watering.

For example:

Lawn

↑ 💧 ↑

← ● →

↓ 💧 ↓

A full-circle nozzle can be suitable in open areas.

How Water Pressure Affects Your Nozzle

Pressure is extremely important.

A nozzle may be designed to produce a particular radius at a specified pressure.

If pressure is too low:

Radius decreases
Coverage decreases
Spray may become uneven

If pressure is too high:

Misting can increase
Distribution may deteriorate
Water can be wasted

Always check the manufacturer’s performance specifications.

For example, Hunter’s standard MP Rotator specifications list operating pressure ranges of approximately 210–380 kPa for several standard models. (Hunter Industries)

How Flow Affects Nozzle Selection

Your irrigation zone has a finite amount of available water.

For example:

Available flow = 30 L/min

If each nozzle uses:

5 L/min

then the theoretical maximum is:

30 ÷ 5 = 6 nozzles

But this is only a basic flow calculation.

You still need to consider:

Pressure
Pipe losses
Valve capacity
Pipe size
Elevation

This is why nozzle selection and zone design need to be considered together.

How Nozzle Selection Affects Watering Uniformity

Imagine two sprinklers.

Sprinkler A

Large flow

Sprinkler B

Small flow

If they’re on the same zone without appropriate design, they may apply different amounts of water.

The result could be:

Overwatered area

next to:

Underwatered area

Matched precipitation is therefore important.

What Is Matched Precipitation?

Matched precipitation means sprinklers in a zone are designed to apply water at similar rates.

This is particularly important when using different arcs.

For example:

90°

180°

360°

should ideally be selected so the different sprinklers apply water at compatible rates.

Hunter’s standard MP Rotator range is designed around matched precipitation across different arcs and radii. (Hunter Industries)

Why Sprinkler Spacing Matters

Nozzle selection cannot be separated from sprinkler spacing.

Imagine a nozzle with a:

6 m radius

If your sprinkler heads are spaced:

12 m apart

you may achieve reasonable head-to-head coverage under the correct conditions.

But if they’re:

18 m apart

you may have a large dry area between them.

Always design the sprinkler layout and nozzle together.

Head-to-Head Coverage

A good sprinkler layout generally aims for:

Head-to-head coverage

For example:

●────────●

The spray from one sprinkler should reach toward the next sprinkler.

This improves uniformity.

Hunter specifically recommends head-to-head coverage when designing MP Rotator layouts. (Hunter Industries)

Choosing a Nozzle for a Small Lawn

For a small lawn, consider:

Traditional spray nozzle

Good for:

Small areas
Short distances
Simple shapes

MP Rotator

Good for:

Small-medium areas
Lower application rates
Irregular areas

Short-radius MP800

Useful where the required throw distance is relatively short. (Hunter Industries)

Choosing a Nozzle for a Large Lawn

For larger lawns, you may need to move beyond spray nozzles entirely.

Consider:

Rotors
Large-area rotary sprinklers
Larger MP Rotators

If the required throw distance is substantial, a dedicated rotor may be more appropriate than a pop-up nozzle.

See our guide:

Pop-Up Sprinklers vs Rotors vs MP Rotators

Choosing a Nozzle for a Narrow Lawn

For narrow strips:

Strip nozzle

can be an excellent option.

Examples include:

Side-strip
Left-corner strip
Right-corner strip

The objective is to match the nozzle pattern to the shape of the lawn.

Choosing a Nozzle for a Sloped Lawn

For slopes, consider a nozzle with an appropriate application rate.

A high application rate can contribute to runoff when the soil cannot absorb water quickly enough.

Rotary nozzles such as MP Rotators can be useful in suitable applications because of their slower application rate.

However, the overall irrigation schedule and soil conditions still matter.

Choosing a Nozzle for Clay Soil

Clay soils can have relatively slow infiltration.

If water is applied faster than the soil can absorb it, runoff can occur.

Consider:

Lower application rates
Shorter watering cycles
Soak periods
Appropriate sprinkler spacing
Correct nozzle selection

MP Rotators can be useful in appropriate applications because their standard range has a relatively low matched precipitation rate. (Hunter Industries)

Choosing a Nozzle for Sandy Soil

Sandy soils can drain relatively quickly.

This means irrigation scheduling becomes important.

You may need to consider:

Watering frequency
Soil moisture
Plant requirements
Root depth
Application rate

Don’t simply increase the nozzle flow.

Design the system around the soil and plants.

Spray Nozzle vs MP Rotator

This is one of the most common choices.

Spray nozzle

Best for:

Small areas
Short throw
Simple shapes
Fast application

MP Rotator

Best for:

Small-medium lawns
Irregular shapes
Slopes
Slower application
Water-conscious systems

Hunter positions the MP Rotator as a high-efficiency alternative to traditional spray nozzles. (Hunter Industries)

Hunter MP Rotator vs Rain Bird R-VAN

Both are rotary nozzle technologies.

Hunter MP Rotators use multiple rotating streams, while Rain Bird offers R-VAN rotary nozzles as part of its nozzle range.

SprinklerPros currently stocks both. (Sprinklerpros)

When comparing them, look at:

Radius
Arc
Flow
Pressure
Precipitation rate
Availability
Replacement parts
Compatibility with your sprinkler body

Don’t choose solely because one brand is more familiar.

Hunter vs Rain Bird Fixed Spray Nozzles

Both manufacturers offer conventional spray nozzle options.

The correct nozzle should be selected based on:

Arc + radius + pressure + flow + spacing

not simply:

Brand

Your system design matters more than the logo on the nozzle.

Can You Mix Different Nozzles on One Zone?

Yes, but you need to be careful.

Different nozzle types can have different:

Flow rates
Precipitation rates
Pressure requirements
Application patterns

If you mix them without considering those differences, the zone may water unevenly.

Whenever possible, use nozzles with compatible precipitation characteristics.

Can You Mix 90° and 180° Nozzles?

Yes.

In fact, this is very common.

For example:

Corners → 90°

Edges → 180°

Centre → 360°

The key is to ensure the nozzles are appropriately matched for precipitation and coverage.

Can You Mix MP Rotators With Spray Nozzles?

Technically, different nozzle technologies can exist on the same property.

But they generally shouldn’t be thrown onto one zone without considering their application rates.

Hunter’s design guidance specifically discusses zoning different sprinkler categories appropriately. (Hunter Industries)

A better approach is often:

Zone 1 → Standard sprays

Zone 2 → MP Rotators

Zone 3 → Rotors

This allows each group to have an appropriate watering schedule.

How to Replace a Sprinkler Nozzle

Replacing a nozzle is usually straightforward.

Step 1

Turn off the irrigation system.

Step 2

Locate the sprinkler.

Step 3

Remove the existing nozzle according to the manufacturer’s instructions.

Step 4

Install the replacement nozzle.

Step 5

Set the arc.

Step 6

Turn the system on.

Step 7

Check the radius and coverage.

Step 8

Adjust if necessary.

Always make sure the replacement nozzle is compatible with the sprinkler body.

When Should You Replace a Nozzle?

Consider replacing a nozzle if:

Spray pattern has changed
Radius has decreased
Nozzle is damaged
Nozzle is blocked
Water is spraying unevenly
Lawn has developed dry areas
The irrigation layout has changed

A damaged nozzle can affect the entire performance of a zone.

How to Clean a Blocked Nozzle

If a nozzle is blocked:

Turn off the system.
Remove the nozzle.
Inspect for dirt or debris.
Clean according to the manufacturer’s recommendations.
Reinstall it.
Test the sprinkler.

If the nozzle is damaged or worn, replacement is generally preferable to trying to repair it.

Common Sprinkler Nozzle Mistakes

Mistake 1: Choosing by colour alone

Colour coding varies by manufacturer and product family.

Always check the actual model.

Mistake 2: Ignoring pressure

A nozzle’s advertised radius depends on operating conditions.

Mistake 3: Using the wrong arc

A full-circle nozzle in a corner can waste water.

Mistake 4: Ignoring flow

The nozzle contributes to total zone demand.

Mistake 5: Poor sprinkler spacing

Even the best nozzle cannot compensate for badly spaced sprinkler heads.

Mistake 6: Mixing incompatible precipitation rates

This can create overwatering and underwatering within the same zone.

Mistake 7: Choosing maximum radius

Maximum radius doesn’t automatically mean correct spacing.

A Simple Nozzle Selection Method

Use this process:

Step 1 — Measure the area

Determine the lawn dimensions.

Step 2 — Draw the lawn

Mark corners, edges and obstacles.

Step 3 — Check pressure

Determine your available operating pressure.

Step 4 — Check flow

Determine available L/min.

Step 5 — Choose sprinkler type

Spray, rotary nozzle or rotor.

Step 6 — Determine radius

Choose a nozzle that can cover the required distance.

Step 7 — Determine arc

Choose:

90° / 180° / 270° / 360°

or a variable arc.

Step 8 — Check flow

Add the flow requirements for every nozzle in the zone.

Step 9 — Check spacing

Design for appropriate overlap.

Step 10 — Test

Run the system and adjust.

Example: Choosing Nozzles for a Rectangular Lawn

Imagine your lawn is:

8 m × 10 m

You might begin with:

Four corners

90° nozzles

Four sides

180° nozzles

Centre

360° nozzle

But don’t automatically install this exact layout.

First check the selected nozzle’s radius and pressure requirements.

If the nozzle is designed for a 4 m radius, your layout needs to account for that.

If the lawn requires 5–6 m coverage, a different nozzle may be required.

Example: Choosing Nozzles for an L-Shaped Lawn

An L-shaped lawn is more difficult.

A standard circular spray may water areas outside the lawn.

Instead, you may use:

90° nozzles
180° nozzles
Variable-arc nozzles
Strip nozzles
MP Rotators

The objective is to match the spray pattern to the lawn.

Nozzle Selection Checklist

Before purchasing a nozzle, check:

☐ Sprinkler body compatibility

☐ Required radius

☐ Required arc

☐ Operating pressure

☐ Flow rate

☐ Precipitation rate

☐ Sprinkler spacing

☐ Soil type

☐ Lawn shape

☐ Zone capacity

☐ Head-to-head coverage

☐ Manufacturer specifications

Frequently Asked Questions

What sprinkler nozzle should I use?

Choose a nozzle based on the required radius, arc, pressure, flow and sprinkler spacing. There is no single nozzle that is best for every lawn.

What does a sprinkler nozzle do?

The nozzle controls how water leaves the sprinkler, including its flow, radius, arc and spray pattern.

What size sprinkler nozzle do I need?

The correct size depends on the required coverage and the sprinkler’s operating pressure. Check the manufacturer’s performance chart for the specific nozzle.

Should I use a 90° or 180° nozzle?

Use approximately 90° for corners and 180° for edges when the lawn layout suits those patterns.

What nozzle should I use in the middle of a lawn?

A 360° nozzle may be suitable for an open area, provided the radius and flow match the lawn and system.

Are MP Rotators better than spray nozzles?

Not universally. MP Rotators can offer advantages such as slower application and rotating streams, while conventional sprays can be useful for smaller areas requiring fast application.

Are MP Rotators more water efficient?

Hunter states that standard MP Rotators have a matched precipitation rate of approximately 10 mm/hr and are designed as high-efficiency rotating-stream nozzles. (Hunter Industries)

Can I put different nozzles on the same zone?

Yes, but you need to consider flow and precipitation rates. Poorly matched nozzles can result in uneven watering.

How often should sprinkler nozzles be replaced?

There is no universal replacement interval. Replace them when they become damaged, worn, blocked or no longer provide the intended spray pattern.

Why is my sprinkler not reaching far enough?

Possible causes include:

Low pressure
Blocked nozzle
Incorrect nozzle
Too many sprinklers on the zone
Undersized pipe
Damaged sprinkler

Can I use a different brand nozzle in my sprinkler?

Compatibility depends on the sprinkler body and nozzle design. Check the manufacturer’s specifications before mixing brands.

Final Verdict: Choose the Nozzle Before You Choose the Sprinkler Layout

The right sprinkler nozzle can make a huge difference to irrigation performance.

Don’t choose a nozzle simply because:

“It looks right.”

Instead, start with:

Lawn size

↓

Lawn shape

↓

Required radius

↓

Required arc

↓

Water pressure

↓

Available flow

↓

Sprinkler spacing

↓

Nozzle selection

↓

Zone design

A good nozzle should provide the right amount of water at the right pressure and distribute it across the intended area.

For a simple lawn:

Corners → 90°

Edges → 180°

Open areas → 360°

For more complex areas:

Variable arc / strip / rotary nozzles

may be more appropriate.

For water-conscious applications:

MP Rotators

can be an excellent option when correctly designed.

Find the Right Sprinkler Nozzle at SprinklerPros

SprinklerPros currently carries a range of sprinkler nozzle options from Hunter, Rain Bird, Toro and SprinklerPros, including MP Rotators, specialty arcs, Rain Bird sprays, variable-arc nozzles and other irrigation products. (Sprinklerpros)

Explore the SprinklerPros sprinkler nozzle range to find the right nozzle for your irrigation project.

Before purchasing, make sure you know your:

Radius + arc + pressure + flow + sprinkler spacing.

If you’re unsure which nozzle you need, start with your lawn measurements and water supply.

The best nozzle isn’t necessarily the one with the biggest radius — it’s the one that provides the right coverage for your lawn.
