Hunter MP1000 vs MP2000 vs MP3000: Which MP Rotator Is Right for You?

Choosing the correct Hunter MP Rotator can be confusing.

You may have seen products labelled:

  • MP800
  • MP1000
  • MP2000
  • MP3000

and wondered:

“What’s the difference?”

The main difference is the coverage range each model is designed for.

Choosing the wrong model can result in:

  • Poor coverage
  • Dry patches
  • Overspray
  • Watering paths and driveways
  • Uneven irrigation
  • Incorrect zone flow

The good news is that choosing the right MP Rotator becomes much easier once you understand radius, arc, pressure and spacing.

In this guide, we’ll compare the MP1000, MP2000 and MP3000 and explain which one may be appropriate for different lawn applications.

What Is a Hunter MP Rotator?

The Hunter MP Rotator is a rotary nozzle designed to distribute water through multiple rotating streams rather than a conventional fixed spray.

MP Rotators are commonly installed on compatible pop-up sprinkler bodies.

Instead of producing one continuous fan-shaped spray, the nozzle creates rotating streams that gradually cover the irrigation area.

This makes the MP Rotator different from a traditional fixed spray nozzle.

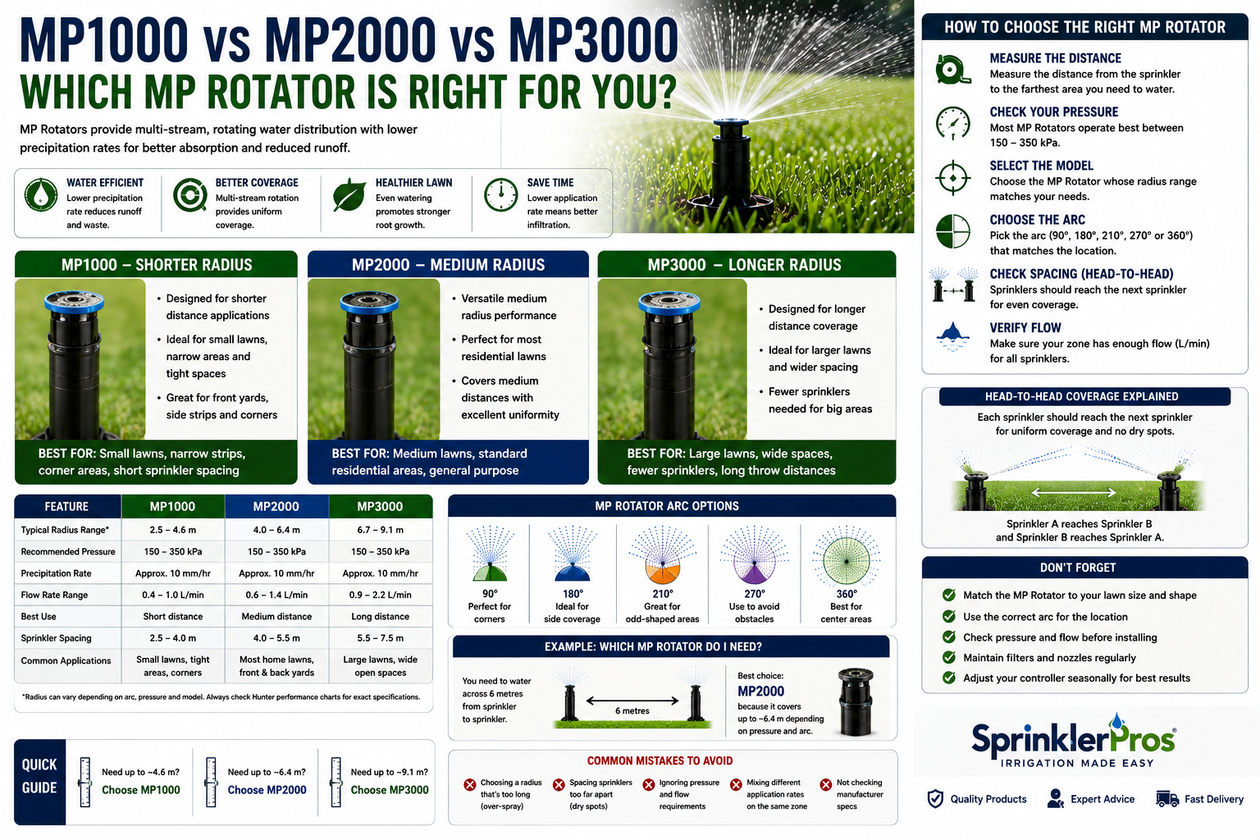

MP1000 vs MP2000 vs MP3000 at a Glance

The easiest way to understand the range is to think about required radius.

Model

General Application

Approximate Radius Category

MP1000

Shorter residential areas

Short

MP2000

Medium residential areas

Medium

MP3000

Larger residential areas

Longer

MP800

Very short-radius areas

Extra short

The exact radius depends on:

  • Operating pressure
  • Arc
  • Model
  • Installation
  • Manufacturer specifications

Always check the current Hunter performance chart before selecting a nozzle.

MP1000: Shorter-Radius Applications

The MP1000 is generally intended for shorter-radius applications than the MP2000 and MP3000.

It can be useful for:

  • Smaller lawns
  • Residential garden areas
  • Narrower sections
  • Shorter sprinkler spacing
  • Areas where a longer throw would cause overspray

Imagine a lawn where the required sprinkler radius is relatively short.

Using an MP3000 could potentially send water beyond the intended area.

A shorter-radius MP1000 may be more appropriate.

When Should You Choose an MP1000?

Consider an MP1000 when your required radius falls within its specified performance range.

It can be useful for:

Small front lawns

Where sprinklers are relatively close together.

Narrow lawn areas

Where a long throw would spray outside the grass.

Small garden spaces

Where precise coverage is more important than maximum distance.

Smaller zones

Where the required coverage distance is limited.

MP2000: Medium-Radius Applications

The MP2000 sits between the shorter-radius MP1000 and longer-radius MP3000.

It is designed for medium-radius applications.

This makes it useful for many residential lawns.

For example:

Medium-sized rectangular lawn

↓

MP2000

↓

Head-to-head coverage

can provide a practical irrigation layout when the site conditions and hydraulic design are appropriate.

When Should You Choose an MP2000?

Consider an MP2000 when:

  • The lawn requires a medium radius
  • MP1000 doesn’t reach far enough
  • MP3000 would provide excessive radius
  • You have suitable operating pressure
  • The sprinkler spacing matches the manufacturer’s performance data

The important point is:

Choose based on the required radius, not simply the size of the lawn.

MP3000: Longer-Radius Applications

The MP3000 is designed for longer-radius applications than the MP1000 and MP2000.

It can be useful for:

  • Larger lawns
  • Wider areas
  • Longer sprinkler spacing
  • Larger residential landscapes

If your sprinklers need to reach farther, the MP3000 may be worth considering.

But don’t choose it just because it has the largest radius.

If the lawn is small, a longer radius could create:

  • Overspray
  • Water on paths
  • Water on driveways
  • Uneven coverage

When Should You Choose an MP3000?

Consider an MP3000 when:

  • You need a longer radius
  • The lawn is relatively large
  • Sprinklers are spaced farther apart
  • The available pressure supports the selected configuration
  • The manufacturer’s performance data matches your site

Always measure the distance between sprinklers before choosing the nozzle.

MP1000 vs MP2000 vs MP3000: The Main Difference

The simplest explanation is:

MP1000

Shorter radius

MP2000

Medium radius

MP3000

Longer radius

But there is much more to selecting the correct MP Rotator.

You also need to consider:

Arc

Pressure

Flow

Spacing

Coverage

Soil

Lawn shape

What Does Radius Mean?

Radius is the distance from the sprinkler to the edge of its irrigation pattern.

For example:

If a sprinkler has a radius of:

5 metres

it is designed to throw water approximately 5 metres from the sprinkler under the specified operating conditions.

Radius is not the same as diameter.

Radius

5 m

Diameter

10 m

This distinction is important when planning sprinkler spacing.

How Do You Know Which MP Rotator Radius You Need?

Measure the distance from the sprinkler location to the area you need to cover.

For example:

Sprinkler A

↓

5 metres

↓

Sprinkler B

You need a sprinkler capable of reaching approximately that distance under actual operating conditions.

Don’t simply select a nozzle because its model number sounds appropriate.

Check the manufacturer’s performance chart.

What Is Head-to-Head Coverage?

Head-to-head coverage is one of the most important concepts in sprinkler design.

It means:

One sprinkler reaches the next sprinkler.

For example:

MP Rotator A

→

MP Rotator B

and:

MP Rotator B

→

MP Rotator A

This overlap helps improve irrigation uniformity.

Why Head-to-Head Coverage Matters With MP Rotators

You may install an MP2000 because it sounds suitable for your lawn.

But if the sprinklers are too far apart, the MP2000 may not provide sufficient overlap.

You could then get:

  • Dry patches
  • Uneven grass
  • Increased runtime
  • Poor irrigation efficiency

Correct spacing is just as important as selecting the correct nozzle.

MP1000 vs MP2000 vs MP3000: Don’t Choose by Lawn Size Alone

This is a common mistake.

People often ask:

“I have a large lawn. Should I buy MP3000?”

Not necessarily.

The correct question is:

“What radius does my irrigation layout require?”

A large lawn may be divided into smaller sections.

A small lawn may contain a long narrow section.

The required radius can therefore vary significantly across the same property.

Can You Use Different MP Rotators in the Same Zone?

Yes, different models can potentially be used in a properly designed system.

For example:

  • MP1000 in a small corner
  • MP2000 in a medium section
  • MP3000 in a larger section

However, you need to consider application rates and compatibility.

Don’t randomly mix different sprinkler technologies and assume they will all apply the same amount of water.

What Is Matched Precipitation?

Matched precipitation means sprinklers are selected so different arcs and configurations apply water at compatible rates.

For example, you might have:

90°

180°

360°

MP Rotators in the same zone.

The objective is to maintain relatively consistent application across the irrigated area.

This is one of the reasons manufacturer performance data is important.

MP Rotator Arc Options

MP Rotators are available in different arc configurations.

Common patterns include:

  • 90°
  • 180°
  • 360°
  • Adjustable arc options depending on model

The appropriate arc depends on the sprinkler’s location.

Which MP Rotator for a Corner?

For a typical rectangular lawn corner, a:

90° pattern

may be appropriate.

For example:

SPRINKLER
    ↘
      ↘
        LAWN

The goal is to keep the water within the intended area.

Which MP Rotator for a Side?

A:

180° pattern

may be suitable for sprinklers positioned along the edge of a lawn.

This allows water to travel inward rather than unnecessarily spraying behind the sprinkler.

Which MP Rotator for the Centre?

A:

360° pattern

may be suitable for a sprinkler located within the lawn.

However, the exact layout depends on the lawn dimensions and sprinkler spacing.

MP Rotator Pressure Requirements

Pressure is extremely important.

A nozzle doesn’t automatically perform at its advertised radius regardless of the water supply.

Performance can change depending on operating pressure.

Insufficient pressure can cause:

  • Reduced radius
  • Poor stream formation
  • Uneven coverage

Excessive pressure can contribute to:

  • Misting
  • Poor distribution
  • Excessive flow

Always use the manufacturer’s recommended pressure and performance data.

What Happens If an MP Rotator Has Low Pressure?

You may notice:

  • Shorter radius
  • Weak streams
  • Poor coverage
  • Incomplete rotation
  • Dry areas

Before replacing the MP Rotator, check whether the entire zone is affected.

If every sprinkler is weak, the problem may be:

  • Water supply
  • Valve
  • Pipe
  • Filter
  • Zone flow

rather than the nozzle.

What Happens If Pressure Is Too High?

Excessive pressure can affect irrigation performance.

Potential symptoms include:

  • Fine mist
  • Poor distribution
  • Excessive flow
  • Wind drift

If pressure is too high, appropriate pressure regulation may be required depending on the system.

MP Rotator Flow Rate

Flow is normally measured in:

L/min

The actual flow depends on:

  • Model
  • Arc
  • Pressure
  • Radius setting
  • Manufacturer configuration

This means you should not assume:

MP1000 = one fixed flow

or:

MP2000 = one fixed flow.

Use the manufacturer’s performance chart for the exact configuration.

Why Flow Matters

Your water supply has a limited flow capacity.

Suppose your available supply is:

30 L/min

but your irrigation zone requires:

45 L/min.

The system may experience low pressure and poor sprinkler performance.

This is why you should calculate the total flow of every nozzle operating in a zone.

How Many MP Rotators Can You Run on One Zone?

There isn’t one universal number.

It depends on:

  • Available flow
  • Operating pressure
  • Nozzle model
  • Arc
  • Radius
  • Pipe size
  • Valve
  • Pipe length

For example, a zone with several low-flow MP Rotators may have a very different flow requirement from a zone containing larger-flow sprinklers.

Always calculate the total zone demand.

MP Rotator vs Traditional Spray Nozzle

This is one of the biggest reasons people consider MP Rotators.

Traditional spray nozzle

Generally produces a fixed fan-shaped spray.

MP Rotator

Produces multiple rotating streams.

The choice depends on the application.

Advantages of MP Rotators

MP Rotators can offer:

  • Rotating streams
  • Multiple radius options
  • Multiple arc options
  • Lower application rates than many conventional sprays
  • Useful coverage for irregular areas
  • Compatibility with suitable pop-up bodies

They can be a strong option for residential irrigation.

Limitations of MP Rotators

They aren’t perfect for every situation.

Potential considerations include:

  • They require appropriate operating pressure
  • They generally apply water more slowly than conventional spray nozzles
  • Incorrect spacing can cause poor coverage
  • They need appropriate nozzle selection
  • They should be designed as part of the complete irrigation system

Are MP Rotators Better Than Spray Nozzles?

Not always.

They’re different technologies designed for different applications.

Choose based on:

Area

Radius

Pressure

Flow

Soil

Spacing

Application rate

rather than choosing a product simply because it is more advanced.

MP Rotator vs Rotor

MP Rotators and rotors are both rotary irrigation products, but they’re designed for different applications.

MP Rotator

Typically installed as a nozzle on a compatible pop-up body.

Often suitable for:

  • Residential lawns
  • Smaller areas
  • Medium-radius applications

Rotor

A complete rotating sprinkler designed for longer-radius applications.

Often suitable for:

  • Larger lawns
  • Larger landscapes
  • Longer throw distances

Can You Replace a Spray Nozzle With an MP Rotator?

In many applications, yes.

MP Rotators are designed for use on compatible pop-up sprinkler bodies.

Before upgrading, check:

  • Sprinkler body compatibility
  • Available pressure
  • Flow
  • Required radius
  • Spacing

Simply swapping the nozzle doesn’t guarantee the new system will perform correctly.

Why an MP Rotator May Not Reach Its Advertised Radius

The listed radius is based on specified operating conditions.

Your installation may have:

  • Lower pressure
  • Different elevation
  • Long pipe runs
  • Undersized pipe
  • Excessive zone demand
  • Flow restrictions

As a result, the actual field performance may differ.

How Wind Affects MP Rotators

Wind can affect any above-ground irrigation spray.

Even rotating streams can be displaced by strong wind.

This can cause:

  • Uneven watering
  • Overspray
  • Dry areas
  • Water landing outside the lawn

If wind is a major issue, sprinkler placement and scheduling become particularly important.

Are MP Rotators Good for Slopes?

They can be useful in some sloped applications because their application characteristics can be slower than conventional sprays.

However, slope irrigation requires more than simply selecting an MP Rotator.

You should also consider:

  • Soil infiltration
  • Slope angle
  • Sprinkler spacing
  • Application rate
  • Runtime
  • Cycle-and-soak scheduling

MP Rotators and Clay Soil

Clay soils can have relatively slow infiltration.

If water is applied too quickly, it may run off.

A lower application rate can be beneficial in appropriate situations.

However, the irrigation schedule still needs to match the soil and landscape.

MP Rotators and Sandy Soil

Sandy soil can drain relatively quickly.

The irrigation schedule may therefore need to account for:

  • Infiltration
  • Water-holding capacity
  • Frequency
  • Runtime

The nozzle alone doesn’t determine the watering schedule.

How to Choose the Right MP Rotator

Use this process.

Step 1 — Measure the area

Determine the distance the sprinkler needs to cover.

Step 2 — Determine the required radius

Measure sprinkler-to-sprinkler distance.

Step 3 — Select the model

Choose an MP Rotator model whose specified radius matches the application.

Step 4 — Select the arc

Choose the appropriate arc for the sprinkler location.

Step 5 — Check pressure

Make sure the system can provide the required operating pressure.

Step 6 — Calculate flow

Add the flow requirements of all sprinklers in the zone.

Step 7 — Check coverage

Confirm that you have appropriate overlap.

Example: Choosing an MP Rotator for a Small Lawn

Imagine:

Sprinkler spacing = 4 metres

You don’t necessarily want a nozzle designed for a much longer radius.

A shorter-radius model may be more appropriate if its specified performance matches your operating conditions.

Then choose:

90°

for corners and:

180°

for sides where appropriate.

Example: Choosing an MP Rotator for a Medium Lawn

Imagine:

Sprinkler spacing = 6 metres

A medium-radius MP Rotator may be appropriate if the manufacturer’s specifications support that radius at your available pressure.

Again, don’t choose purely from the model number.

Check the performance chart.

Example: Choosing an MP Rotator for a Large Lawn

Imagine:

Sprinkler spacing = 9 metres

A longer-radius model may be appropriate.

If the required radius exceeds the practical performance of the MP Rotator range, a rotor may be a better option.

What If the MP1000 Doesn’t Reach?

Don’t immediately replace it with an MP2000.

First check:

  • Pressure
  • Flow
  • Filter
  • Valve
  • Nozzle
  • Pipe
  • Sprinkler spacing

If the MP1000 is operating correctly but the design requires a longer radius, then a different model may be appropriate.

What If the MP3000 Oversprays?

If the MP3000 is spraying beyond the lawn:

  • Check the arc
  • Check radius adjustment if supported
  • Check sprinkler location
  • Consider a shorter-radius model

The goal is to match the nozzle to the area.

Can MP Rotators Reduce Water Waste?

They can help improve irrigation application in appropriate designs, but installing an MP Rotator doesn’t automatically guarantee lower water consumption.

Efficiency depends on:

  • Correct radius
  • Correct arc
  • Proper spacing
  • Pressure
  • Flow
  • Runtime
  • Controller programming

A poorly designed MP Rotator system can still waste water.

MP Rotators and Watering Time

Because MP Rotators can have slower application rates than conventional sprays, watering times may need to be adjusted.

Don’t simply copy the runtime from an old spray-nozzle system.

Instead, consider the irrigation system’s:

  • Application rate
  • Soil
  • Landscape requirements
  • Weather
  • Coverage

Don’t Mix Spray Nozzles and MP Rotators Without Planning

A common mistake is replacing only a few spray nozzles with MP Rotators.

You may then have:

Spray nozzle

  • Attachment.tiff

MP Rotator

on the same zone.

These products can have significantly different application characteristics.

The same runtime may therefore produce uneven watering.

If you upgrade a zone, review the complete zone design.

What Is the Best MP Rotator for Your Lawn?

There isn’t one universal best model.

Choose MP1000 when:

You need a shorter radius within its specified operating range.

Choose MP2000 when:

You need a medium radius within its specified operating range.

Choose MP3000 when:

You need a longer radius within its specified operating range.

Consider MP800 when:

You need an especially short radius and the model’s specifications suit the application.

Consider a rotor when:

The required radius is beyond the practical range of rotary nozzles.

MP1000 vs MP2000 vs MP3000: Simple Decision

Use this as a starting point:

Small / short area

→ MP1000

Medium area

→ MP2000

Longer area

→ MP3000

But always verify:

Radius + pressure + flow + arc + spacing

before purchasing.

Frequently Asked Questions

What is the difference between MP1000, MP2000 and MP3000?

The main difference is their intended radius range. MP1000 is for shorter applications, MP2000 for medium applications and MP3000 for longer applications.

Which is better, MP1000 or MP2000?

Neither is universally better. Choose based on the radius required by your irrigation layout.

Which is better, MP2000 or MP3000?

Choose the model whose specified radius matches the required sprinkler spacing and available operating pressure.

How far does an MP1000 spray?

Its actual radius depends on the specific configuration and operating pressure. Check the current Hunter performance chart for the exact model, arc and pressure.

How far does an MP2000 spray?

The radius depends on configuration and pressure. Use the manufacturer’s performance specifications rather than assuming a single fixed distance.

How far does an MP3000 spray?

The MP3000 is designed for longer-radius applications, but exact performance depends on model configuration and operating pressure.

Can I install MP Rotators on existing pop-up sprinklers?

MP Rotators are designed for compatible pop-up sprinkler bodies. Confirm compatibility before installation.

Are MP Rotators better than spray nozzles?

They aren’t automatically better. They provide different application characteristics and can be advantageous for appropriate residential applications.

Do MP Rotators use less water?

They can have lower application rates than many conventional spray nozzles, but total water consumption depends on flow, pressure, runtime, arc and number of sprinklers.

Can MP Rotators work with low water pressure?

They require appropriate operating pressure for their specified performance. If pressure is too low, radius and distribution can suffer.

Can I mix MP1000 and MP2000 in the same zone?

It may be possible when the system is properly designed, but you should consider application rates, flow and coverage.

Can I mix MP Rotators and spray nozzles?

It is generally better to design zones around compatible application rates rather than randomly mixing technologies.

Which MP Rotator should I use for a corner?

A suitable 90° configuration is often used for corners, provided its radius and flow match the application.

Which MP Rotator should I use along a lawn edge?

A 180° configuration can be appropriate for many edge locations, depending on the lawn shape.

Which MP Rotator should I use in the middle of a lawn?

A 360° configuration may be suitable for a centre sprinkler when the layout and radius are appropriate.

Why is my MP Rotator not reaching far enough?

Check operating pressure, zone flow, pipe restrictions, filter, valve and sprinkler spacing before replacing the nozzle.

Why is my MP Rotator spraying too far?

Check the radius setting if supported, arc, sprinkler position and whether a shorter-radius model is more appropriate.

Can MP Rotators be used on slopes?

They can be suitable for some sloped applications, particularly where a slower application rate is beneficial, but the complete irrigation design must account for runoff and infiltration.

Final Verdict: Choose by Radius, Not the Model Number

The easiest mistake to make with MP Rotators is choosing the model based on the name.

Instead of thinking:

“I have a big lawn, so I’ll buy MP3000.”

think:

“How far does each sprinkler need to throw?”

Then consider:

Radius

↓

Arc

↓

Pressure

↓

Flow

↓

Spacing

↓

Coverage

That is the correct way to choose an MP Rotator.

In simple terms:

MP1000 → shorter radius

MP2000 → medium radius

MP3000 → longer radius

But the manufacturer’s current performance data should always be used to confirm the exact radius and flow at your operating pressure.

Shop Hunter MP Rotators at SprinklerPros

If you’re replacing spray nozzles or designing a new irrigation system, selecting the correct MP Rotator is only one part of the job.

You may also need:

  • Compatible pop-up sprinkler bodies
  • MP Rotator nozzles
  • Solenoid valves
  • Irrigation pipe
  • Irrigation fittings
  • Filters
  • Pressure regulators
  • Irrigation controllers

Choose the nozzle based on the actual irrigation requirements of your lawn.

Measure the distance.

Check your pressure.

Calculate your flow.

Choose the appropriate radius.

Select the correct arc.

Then test the completed system.

A properly selected MP Rotator can help create consistent irrigation coverage while making better use of your available water supply.

MP Rotator Selection Checklist

Before ordering, check:

☐ Required radius

☐ Sprinkler spacing

☐ Lawn shape

☐ Arc required

☐ Operating pressure

☐ Available flow

☐ Existing sprinkler body compatibility

☐ Nozzle flow

☐ Zone capacity

☐ Head-to-head coverage

☐ Overspray risk

☐ Soil type

☐ Slope

☐ Controller schedule

Don’t choose the MP Rotator by model number alone. Choose it based on the job it needs to do.
