Hunter MP Rotator vs Rain Bird R-VAN: Which Is Better?

If you’re choosing rotary nozzles for a residential irrigation system, two names come up again and again:

Hunter MP Rotator

and

Rain Bird R-VAN

Both are designed to replace or complement conventional spray-nozzle systems in appropriate applications.

Both use rotating streams rather than a traditional fixed spray pattern.

Both are available in multiple radius and arc options.

So which one should you choose?

Hunter MP Rotator or Rain Bird R-VAN?

The answer depends on:

  • Required radius
  • Water pressure
  • Available flow
  • Lawn shape
  • Sprinkler spacing
  • Application rate
  • Adjustment preferences
  • Existing sprinkler bodies
  • Maintenance requirements

In this guide, we’ll compare the two systems and explain where each one can make sense.

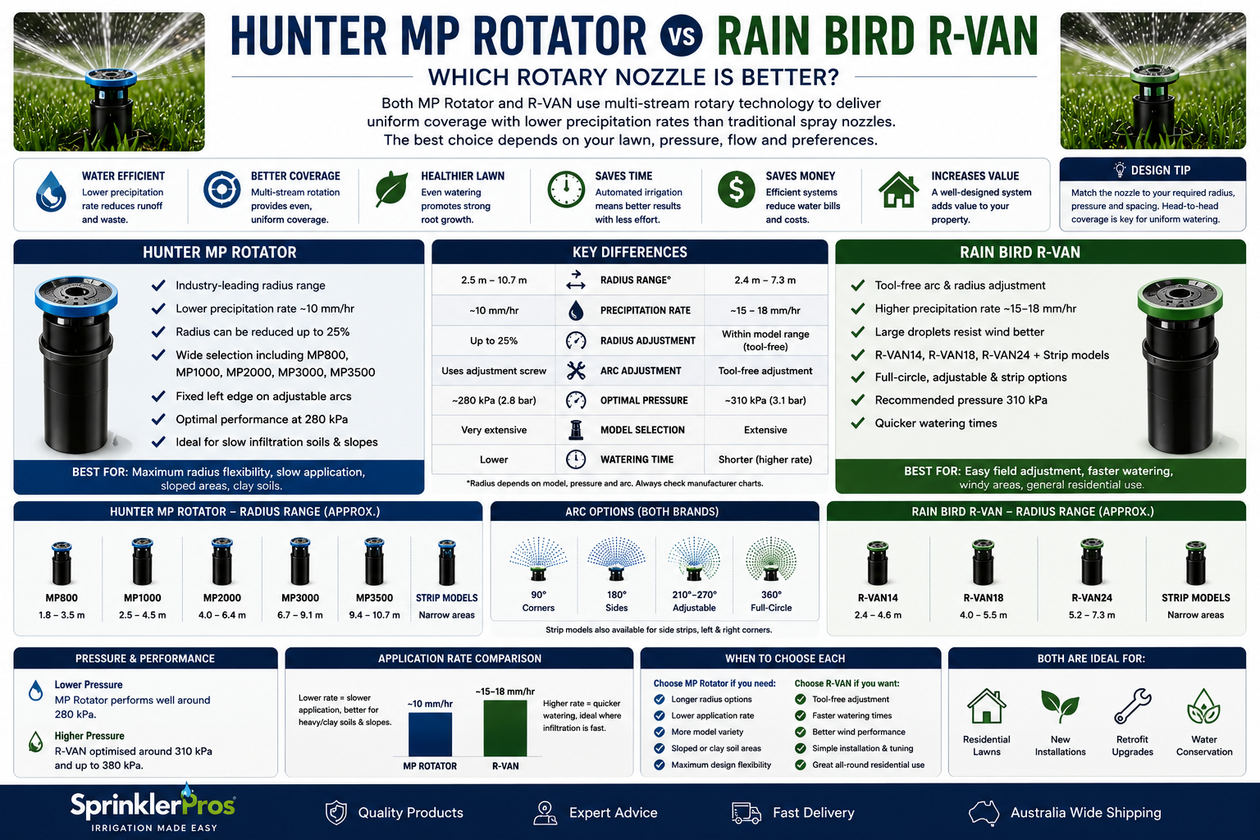

MP Rotator vs R-VAN: Quick Comparison

Feature

Hunter MP Rotator

Rain Bird R-VAN

Rotary multi-stream nozzle

Yes

Yes

Adjustable arc models

Yes

Yes

Full-circle models

Yes

Yes

Strip models

Yes

Yes

Radius options

Wide range

Wide range

Radius adjustment

Up to about 25% on standard MP models

Adjustable within model limits

Recommended operating pressure

Around 280 kPa for optimal MP performance

Around 310 kPa recommended

Typical application rate

Around 10 mm/hr for standard MP range

Around 15–18 mm/hr depending on model/spacing

Tool-free arc adjustment

Model dependent

Strong advantage

Small-medium residential lawns

Excellent

Excellent

Irregular areas

Excellent

Excellent

Hunter states its standard MP Rotators achieve optimal performance around 2.8 bar / 280 kPa, while Rain Bird recommends around 3.1 bar / 45 psi for R-VAN rotary nozzles. (Hunter Industries)

What Is a Hunter MP Rotator?

The Hunter MP Rotator is a multi-stream rotary nozzle designed for installation on compatible spray bodies.

Instead of producing a conventional fan-shaped spray, it distributes water using multiple rotating streams.

Hunter’s standard MP range includes:

  • MP1000
  • MP2000
  • MP3000
  • MP3500
  • MP800 series
  • Strip-pattern models

Hunter’s current reference data lists approximate radii of:

MP1000: 2.5–4.5 m
MP2000: 4.0–6.4 m
MP3000: 6.7–9.1 m
MP3500: 9.4–10.7 m (Hunter Industries)

That gives the MP Rotator range a broad spread from compact residential areas through to relatively long-radius applications.

What Is a Rain Bird R-VAN?

Rain Bird R-VAN is also a rotary nozzle system designed to produce rotating streams.

The current R-VAN range includes:

  • R-VAN14
  • R-VAN18
  • R-VAN24
  • Full-circle versions
  • Strip-pattern models

Rain Bird lists approximate spacing/radius ranges of:

R-VAN14: 2.4–4.6 m
R-VAN18: 4.0–5.5 m
R-VAN24: 5.2–7.3 m (Rain Bird)

Rain Bird also offers strip patterns including left corner, right corner and side-strip options. (Rain Bird)

Radius Comparison

One of the easiest ways to compare these products is by required distance.

Shorter Radius

Hunter

MP1000:

2.5–4.5 m

Rain Bird

R-VAN14:

2.4–4.6 m

These products overlap heavily.

For a lawn requiring around 3–4 metres of coverage, either system may potentially be appropriate depending on pressure, spacing and design.

Medium Radius

Hunter MP2000

Approximately:

4.0–6.4 m

Rain Bird R-VAN18

Approximately:

4.0–5.5 m

Hunter provides a little more published maximum radius in this category. (Hunter Industries)

Longer Radius

Hunter MP3000

Approximately:

6.7–9.1 m

Rain Bird R-VAN24

Approximately:

5.2–7.3 m

For longer residential throw distances, the MP3000 reaches beyond the published R-VAN24 range. Hunter also offers MP3500 for approximately 9.4–10.7 m applications. (Hunter Industries)

This can make Hunter particularly attractive where longer rotary-nozzle coverage is required without moving to a conventional rotor.

Which Has the Better Radius Range?

If maximum radius is your priority:

Hunter MP Rotator has the broader long-range offering.

If your lawn is within roughly:

2.5–7 m

both brands offer plenty of options.

The important thing is to choose a nozzle that matches the actual sprinkler spacing rather than choosing the brand with the largest maximum radius.

Operating Pressure: MP Rotator vs R-VAN

Pressure is one of the most important differences to consider.

Hunter states optimal MP Rotator performance and uniformity are achieved around:

280 kPa / 2.8 bar

Rain Bird lists R-VAN pressure operation from approximately:

210–380 kPa

with a recommended pressure around:

310 kPa / 3.1 bar. (Hunter Industries)

That doesn’t mean one is automatically better.

It means your available operating pressure should influence the choice.

Which Is Better for Lower Pressure?

If your irrigation system operates more comfortably around the MP Rotator’s recommended pressure, Hunter may fit the hydraulic design better.

But don’t select a nozzle purely because your static pressure appears high enough.

You need to know the pressure available while the zone is running.

Low pressure can cause:

  • Reduced radius
  • Poor distribution
  • Weak streams
  • Dry areas

Precipitation Rate Comparison

This is another significant difference.

Hunter’s standard MP Rotator family is generally designed around approximately:

10 mm/hr

matched precipitation. (Hunter Industries)

Rain Bird’s R-VAN published performance data commonly shows approximately:

15–18 mm/hr

depending on pressure and spacing configuration. (Rain Bird)

That means R-VAN can generally apply water faster than the standard MP Rotator range.

Is Lower Precipitation Better?

Not automatically.

A lower application rate can be useful where:

  • Soil absorbs water slowly
  • Runoff is a concern
  • Lawn is sloped
  • Longer application times are acceptable

A higher application rate can be useful where:

  • You want shorter watering windows
  • Soil can absorb the water
  • Your irrigation design supports it

The best precipitation rate depends on the property.

MP Rotator for Clay Soil

Clay soils can absorb water relatively slowly.

If irrigation applies water faster than the soil can absorb it, runoff may occur.

Because the standard MP Rotator range applies water at around 10 mm/hr, it can be attractive for some clay-soil and slope applications.

However:

No nozzle automatically solves runoff.

You still need to consider:

  • Soil condition
  • Slope
  • Runtime
  • Cycle-and-soak scheduling
  • Sprinkler spacing

R-VAN for Residential Lawns

R-VAN can work very well for residential lawns where its application rate and radius range match the landscape.

Rain Bird specifically promotes R-VAN for:

  • High uniformity
  • Matched precipitation
  • Larger droplets
  • Easy maintenance
  • Tool-free adjustment. (Rain Bird)

This can make R-VAN particularly attractive for installers who value fast field adjustment.

Arc Adjustment

Both systems provide adjustable-arc options.

Hunter MP Rotators include adjustable arc models such as:

90°–210°

and:

210°–270°

plus full-circle models.

Hunter uses a fixed left edge and adjustment ring on these models. (Hunter Industries)

Rain Bird R-VAN adjustable models cover:

45°–270°

with separate 360° full-circle models. (Rain Bird)

Which Has Easier Arc Adjustment?

Rain Bird promotes R-VAN’s tool-free arc and radius adjustment as a key feature. (Rain Bird)

That can be convenient when you’re standing in the garden adjusting several sprinklers.

Hunter MP Rotators are also adjustable, but radius adjustment uses the nozzle adjustment screw.

If ease of field adjustment is one of your priorities:

R-VAN has a practical advantage.

Radius Adjustment

Hunter states that standard MP Rotators can have their radius reduced by up to approximately:

25%

while maintaining automatic matched precipitation. (Hunter Industries)

This gives you some flexibility if the nozzle is slightly over-throwing the lawn.

But radius adjustment shouldn’t be used to compensate for choosing the wrong model.

If you need a dramatically shorter radius, select the correct nozzle instead.

R-VAN Radius Adjustment

Rain Bird R-VAN models also allow radius adjustment within the model’s supported range.

Rain Bird advises that arc and radius should be adjusted while the irrigation system is operating. (Rain Bird)

Again:

Choose the correct base model first.

Then use radius adjustment for fine-tuning.

Strip Nozzles

Both systems offer solutions for narrow areas.

These can be useful for:

  • Nature strips
  • Side lawns
  • Narrow front yards
  • Lawn beside driveways
  • Long rectangular turf

Rain Bird offers R-VAN left-corner, right-corner and side-strip models, including a side-strip pattern around 1.5 × 9.1 m. (Rain Bird)

Hunter also offers MP Rotator strip-pattern options.

MP Rotator vs R-VAN for Narrow Lawns

This is close.

Both manufacturers have specialist strip options.

The correct choice should come down to:

  • Lawn width
  • Lawn length
  • Pressure
  • Flow
  • Existing sprinkler bodies
  • Product availability

Don’t try to make a normal circular nozzle work on a narrow rectangular strip if a specialised strip nozzle is available.

Wind Performance

Rain Bird specifically highlights the larger droplets produced by R-VAN as helping water cut through wind more effectively. (Rain Bird)

That’s potentially useful for exposed lawn areas.

However, all overhead irrigation is affected by wind to some degree.

For windy sites:

  • Avoid watering during strong wind
  • Use appropriate pressure
  • Maintain correct spacing
  • Schedule irrigation during calmer conditions

Which Is Better in Wind?

R-VAN has a strong design claim around larger water droplets.

But irrigation scheduling is still critical.

Even the best rotary nozzle can provide poor coverage if operated during strong wind.

Flow Rate

There isn’t one flow rate for either system.

Flow varies with:

  • Nozzle model
  • Arc
  • Pressure
  • Radius

This means you must calculate every proposed sprinkler in the zone.

For example:

4 nozzles × individual flow

=

Total zone flow

Then compare that with your available water supply.

Can R-VAN and MP Rotator Be Used on the Same Zone?

I generally wouldn’t design a zone by casually mixing them.

Why?

Their precipitation rates can differ.

Standard MP Rotators are typically around:

10 mm/hr

while R-VAN can be closer to:

15–18 mm/hr.

Running both for the same amount of time could create uneven water application. (Hunter Industries)

For better control, group similar precipitation technologies together.

Can You Mix Different MP Rotator Models?

Yes, when the design and precipitation characteristics are compatible.

For example:

  • MP1000
  • MP2000
  • MP3000

can potentially serve different radius requirements within a properly designed system.

Hunter designs the standard MP range around matched precipitation. (Hunter Industries)

Can You Mix Different R-VAN Models?

Likewise, Rain Bird markets R-VAN around matched precipitation, helping different R-VAN models work within a coordinated irrigation design. (Rain Bird)

You still need to calculate:

  • Flow
  • Pressure
  • Radius
  • Spacing

for every sprinkler.

Existing Hunter System: Which Should You Choose?

If you already have compatible Hunter spray bodies and you’re happy with the existing system, MP Rotators can be a natural upgrade path.

Hunter states MP Rotators can retrofit onto conventional spray heads or shrub adapters. (Hunter Industries)

Check the exact compatibility of your existing sprinkler body before purchasing.

Existing Rain Bird System

R-VAN is an obvious option for users already using compatible Rain Bird spray bodies.

Rain Bird’s R-VAN range is designed around its spray-body ecosystem, including pressure-regulated options for maintaining appropriate nozzle performance.

Again, confirm compatibility with the specific body you’re using.

Hunter MP Rotator vs Rain Bird R-VAN for Small Lawns

For shorter distances:

Hunter MP1000

Approximately:

2.5–4.5 m

Rain Bird R-VAN14

Approximately:

2.4–4.6 m

There is very little difference in broad radius capability here. (Hunter Industries)

I’d choose based on:

  • Available pressure
  • Preferred application rate
  • Existing sprinkler bodies
  • Adjustment preference

Best for Medium Lawns

This is where:

MP2000

and:

R-VAN18

become natural competitors.

MP2000 reaches approximately:

4.0–6.4 m

while R-VAN18 covers approximately:

4.0–5.5 m. (Hunter Industries)

If you need slightly more radius without moving to a larger sprinkler category, MP2000 has an advantage.

Best for Larger Lawns

Hunter has a clearer advantage in rotary-nozzle range at longer distances.

MP3000:

6.7–9.1 m

MP3500:

9.4–10.7 m

Rain Bird’s R-VAN24 reaches approximately:

5.2–7.3 m. (Hunter Industries)

For very large lawns, though, consider whether a proper rotor is more appropriate than either rotary-nozzle system.

When Should You Use a Rotor Instead?

If you require longer throw distances, a dedicated rotor may provide a better system design.

Don’t force an MP Rotator or R-VAN to operate at the absolute edge of its range just because you want to avoid using rotors.

Compare:

  • Required radius
  • Flow
  • Pressure
  • Number of sprinkler heads
  • Pipe sizing

Sometimes:

Rotor > rotary nozzle

for a large open lawn.

MP Rotator vs R-VAN for Slopes

I’d lean toward:

MP Rotator

when a lower application rate is particularly valuable.

Its approximately 10 mm/hr standard precipitation rate can help apply water more gradually. (Hunter Industries)

But R-VAN can still work very well on slopes when:

  • Properly spaced
  • Correctly scheduled
  • Matched to the soil
  • Used with cycle-and-soak where necessary

MP Rotator vs R-VAN for Fast Watering

If your soil and landscape can handle the application rate and you want a shorter watering window:

R-VAN may have an advantage

because its published precipitation rate is generally higher than standard MP Rotators. (Rain Bird)

Again, faster isn’t automatically better.

Maintenance

Both products require basic irrigation maintenance.

Check regularly for:

  • Blocked nozzles
  • Incorrect arc
  • Changed radius
  • Debris
  • Damaged sprinkler bodies
  • Pressure problems

Rain Bird specifically markets R-VAN around hassle-free maintenance and tool-free adjustment. (Rain Bird)

Hunter MP Rotators are also widely serviceable and adjustable.

Which Is Easier for DIY?

For a DIY homeowner:

R-VAN advantage

Tool-free adjustment can be convenient.

MP Rotator advantage

Very broad model selection and long-established performance charts make it easy to design around specific radius requirements.

Both are very achievable for DIY when the hydraulic design is correct.

Which Is More Water Efficient?

Be careful with this question.

Water efficiency isn’t determined by brand alone.

A properly designed R-VAN system may be much more efficient than a poorly designed MP Rotator system.

Likewise, a properly designed MP system may outperform an incorrectly spaced R-VAN system.

Efficiency depends on:

  • Coverage
  • Pressure
  • Application rate
  • Runtime
  • Soil
  • Weather
  • Arc
  • Radius
  • Maintenance

Hunter MP Rotator Advantages

✔ Broad radius range

The MP family extends into longer-radius applications.

✔ Lower standard precipitation rate

Useful where slow application is desirable.

✔ Matched precipitation

Designed to help maintain consistent watering across compatible standard MP models.

✔ Up to 25% radius adjustment

Useful for fine-tuning coverage. (Hunter Industries)

✔ Strong residential product range

Multiple standard, short-radius and strip models.

Hunter MP Rotator Disadvantages

✘ Longer watering times

Lower precipitation can require longer controller runtimes.

✘ Correct pressure matters

Poor pressure can significantly affect performance.

✘ Adjustment may require a tool

Depending on what you’re adjusting.

Rain Bird R-VAN Advantages

✔ Tool-free adjustment

A major convenience during setup.

✔ Higher application rate

Can reduce irrigation runtime where appropriate.

✔ Large droplets

Rain Bird specifically highlights wind performance.

✔ Matched precipitation

Useful for multi-nozzle system design.

✔ Good residential radius range

Covers many common lawn dimensions. (Rain Bird)

Rain Bird R-VAN Disadvantages

✘ Shorter maximum rotary-nozzle range

Compared with Hunter’s MP3000/MP3500 options.

✘ Higher recommended operating pressure

Worth considering on lower-pressure systems.

✘ Faster precipitation isn’t ideal everywhere

Clay soils and steep slopes may benefit from slower application.

Which One Would We Choose?

It depends on the job.

Small lawn

Either

Medium residential lawn

Either

Long radius

Hunter MP Rotator

Very slow application desired

Hunter MP Rotator

Fast field adjustment

Rain Bird R-VAN

Higher precipitation / shorter runtime desired

Rain Bird R-VAN

Existing Hunter irrigation system

MP Rotator is an obvious candidate

Existing Rain Bird system

R-VAN is an obvious candidate

Our Overall Verdict

There is no universal winner.

But if we had to summarise:

🏆 Best for model/radius flexibility:

Hunter MP Rotator

🏆 Best for easy adjustment:

Rain Bird R-VAN

🏆 Best for slow application:

Hunter MP Rotator

🏆 Best for faster application:

Rain Bird R-VAN

🏆 Best overall:

Whichever one fits your hydraulic and lawn design properly.

That last point matters more than the brand.

Example 1: 4-Metre Sprinkler Spacing

Your lawn requires:

4 m

between sprinklers.

Possible options include:

Hunter MP1000

or:

Rain Bird R-VAN14

Both cover approximately this radius category. (Hunter Industries)

Then compare:

  • Pressure
  • Flow
  • Application rate
  • Existing sprinkler body

Example 2: 6-Metre Spacing

You require:

6 m

coverage.

Hunter MP2000 can reach approximately:

6.4 m

under its published range.

R-VAN18 reaches approximately:

5.5 m. (Hunter Industries)

In this situation:

MP2000 may be the more natural choice.

Example 3: 7-Metre Spacing

Possible choices may include:

MP3000

or:

R-VAN24

depending on operating conditions.

R-VAN24 covers up to approximately:

7.3 m

while MP3000 extends up to around:

9.1 m. (Hunter Industries)

Either could potentially work depending on the complete system design.

Don’t Choose Based on Brand Loyalty

This is particularly important for SprinklerPros customers.

Both Hunter and Rain Bird manufacture quality professional irrigation products.

Instead of asking:

“Which company is better?”

ask:

“Which nozzle fits this area better?”

Look at:

Radius

  • Attachment.tiff

Pressure

  • Attachment.tiff

Flow

  • Attachment.tiff

Precipitation

  • Attachment.tiff

Spacing

  • Attachment.tiff

Maintenance

Then choose.

Frequently Asked Questions

Is Hunter MP Rotator better than Rain Bird R-VAN?

Not universally. MP Rotator offers a broader long-radius range and slower standard precipitation, while R-VAN offers convenient tool-free adjustment and a higher application rate.

Does MP Rotator use less water than R-VAN?

Total water use depends on flow and runtime. Standard MP Rotators generally apply water more slowly, but that doesn’t automatically mean the landscape receives less total water.

Which has the longer radius?

Hunter’s MP range extends farther, with MP3000 and MP3500 covering distances beyond the standard R-VAN range. (Hunter Industries)

Which has the lower precipitation rate?

Standard Hunter MP Rotators are around 10 mm/hr, compared with roughly 15–18 mm/hr for many R-VAN configurations. (Hunter Industries)

Which is easier to adjust?

Rain Bird R-VAN has a strong advantage with tool-free arc and radius adjustment. (Rain Bird)

Can I use R-VAN and MP Rotators on the same zone?

It’s generally better to avoid mixing products with significantly different precipitation rates unless the irrigation design has specifically accounted for it.

Which one is better for clay soil?

The slower application rate of standard MP Rotators can make them attractive where infiltration is slow, but scheduling and soil conditions still matter.

Which is better for windy conditions?

Rain Bird specifically promotes R-VAN’s larger droplets for improved wind resistance. Actual performance still depends on pressure, spacing and weather. (Rain Bird)

What pressure does an MP Rotator need?

Hunter identifies approximately 280 kPa as the optimal operating pressure for standard MP Rotator performance. (Hunter Industries)

What pressure does R-VAN need?

Rain Bird lists approximately 210–380 kPa operating range and recommends around 310 kPa. (Rain Bird)

Should I use a rotor instead?

If your lawn requires distances beyond the practical rotary-nozzle range, a dedicated rotor may be the better option.

Final Verdict: MP Rotator or R-VAN?

Both are excellent rotary nozzle systems.

Choose Hunter MP Rotator if you prioritise:

  • Broader radius choices
  • Longer maximum throw
  • Lower standard precipitation
  • MP1000 / MP2000 / MP3000 flexibility
  • Slow application

Choose Rain Bird R-VAN if you prioritise:

  • Tool-free adjustment
  • Faster precipitation
  • Large-droplet rotary streams
  • Easy field adjustment
  • Rain Bird system compatibility

But before buying either one, measure:

Sprinkler spacing

↓

Required radius

↓

Water pressure

↓

Available flow

↓

Arc

↓

Lawn shape

Then compare the product specifications.

The best rotary nozzle isn’t the Hunter or Rain Bird nozzle with the best marketing — it’s the nozzle that matches your irrigation design.

Shop MP Rotators and R-VAN at SprinklerPros

SprinklerPros currently carries both Hunter and Rain Bird irrigation products, including Hunter MP Rotators and Rain Bird R-VAN rotary nozzles. (Sprinklerpros)

That means you don’t need to choose a brand before you’ve designed the system.

Measure the property first.

Determine the required radius.

Check pressure and flow.

Then compare the appropriate Hunter and Rain Bird options.

Design first. Compare second. Buy third.
