Hunter Node Wiring Diagram & Solenoid Connection Guide

The Hunter Node is one of the most popular battery-operated irrigation controllers used throughout Australia. Whether you're installing a new irrigation system or replacing an existing controller, proper wiring is essential for reliable operation.

This guide explains how to wire a Hunter Node controller, connect solenoid valves correctly, and troubleshoot common wiring issues.

Understanding Hunter Node Wiring

A Hunter Node controller operates irrigation valves by sending a low-voltage electrical signal through dedicated zone wires.

Each irrigation valve requires:

  • One common wire
  • One zone wire

The controller activates a valve by completing the electrical circuit between the common wire and the selected zone wire.

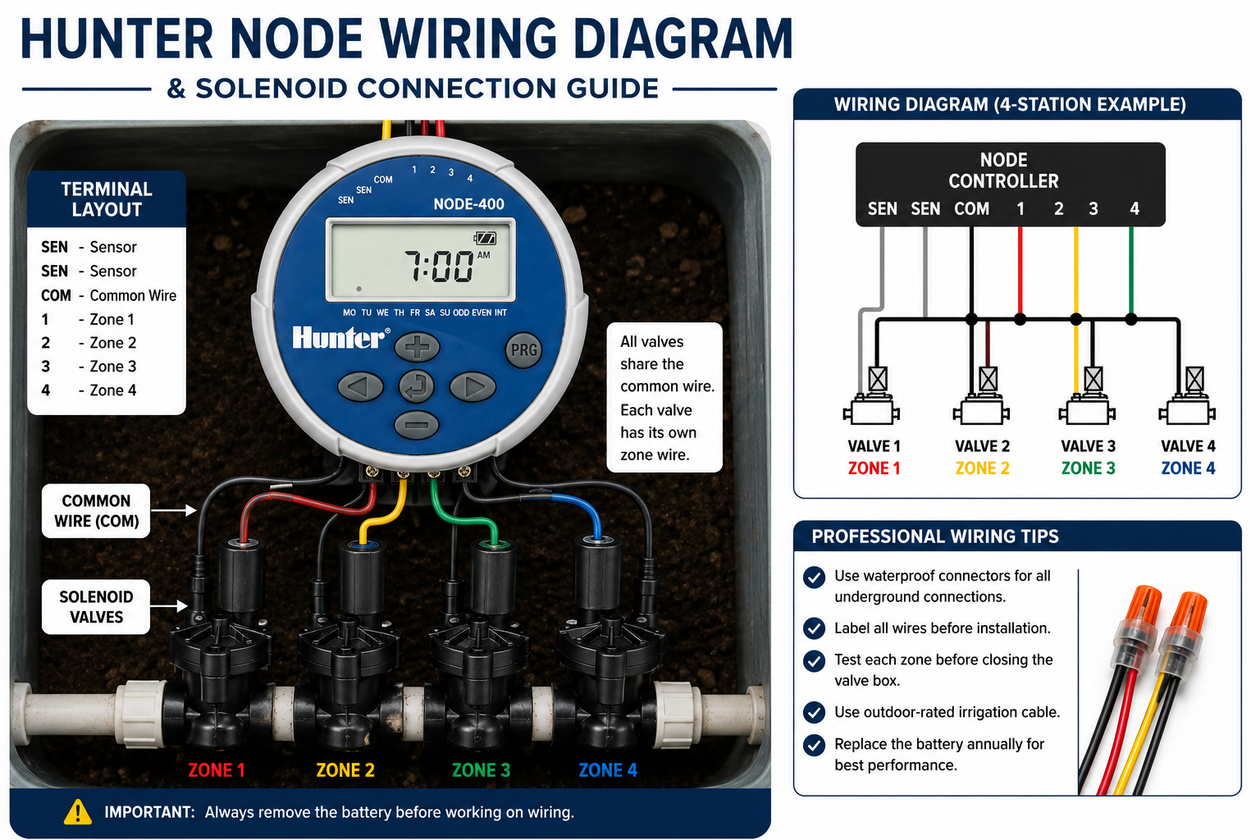

Basic Hunter Node Wiring Diagram

A typical 4-station Hunter Node wiring setup looks like this:

Common Wire

The common wire is shared between all valves.

Zone Wires

Each valve receives its own zone wire:

  • Zone 1 ā†’ Valve 1
  • Zone 2 ā†’ Valve 2
  • Zone 3 ā†’ Valve 3
  • Zone 4 ā†’ Valve 4

All valves share the same common wire connection.

Hunter Node Terminal Layout

Most Hunter Node controllers include:

COM Terminal

Used for the common wire.

Station Terminals

Used for individual irrigation zones:

  • 1 = Zone 1
  • 2 = Zone 2
  • 3 = Zone 3
  • 4 = Zone 4

Sensor Terminal (if installed)

Used for:

  • Rain sensors
  • Soil moisture sensors

How To Wire A Hunter Node Controller

Step 1 ā€“ Turn Off Water Supply

Before working on valves or wiring:

  • Shut off water supply
  • Remove battery from controller

This prevents accidental operation.

Step 2 ā€“ Connect Common Wire

Connect one wire from every solenoid valve together.

These wires connect to:

COM Terminal

This shared wire is called the common wire.

Step 3 ā€“ Connect Zone Wires

Each valve receives its own dedicated wire.

Example:

Valve 1

Connect to Station 1

Valve 2

Connect to Station 2

Valve 3

Connect to Station 3

Valve 4

Connect to Station 4

Step 4 ā€“ Waterproof Connections

Always use:

  • Waterproof gel connectors
  • Waterproof joiners
  • Outdoor-rated cable

Poor connections are the most common cause of irrigation failures.

Step 5 ā€“ Install Battery

Install a fresh battery and power up the controller.

Step 6 ā€“ Test Every Zone

Run each station manually:

  • Zone 1
  • Zone 2
  • Zone 3
  • Zone 4

Verify each valve opens correctly.

Common Hunter Node Wiring Mistakes

Mixing Up Common And Zone Wires

This is one of the most common installation mistakes.

Symptoms:

  • Zones won't operate
  • Multiple valves activate
  • Controller errors

Loose Wire Connections

Loose joins can cause:

  • Intermittent operation
  • Valve failures
  • Controller errors

Always secure connections properly.

No Waterproof Connectors

Underground moisture can cause:

  • Corrosion
  • Electrical shorts
  • Failed valves

Use waterproof connectors for every underground join.

Wrong Valve Wiring

Each valve must connect to:

  • Common wire
  • Correct zone terminal

Incorrect wiring can activate the wrong irrigation zone.

Hunter Node Wiring Troubleshooting

Zone Not Working

Check:

  • Zone wire connection
  • Solenoid condition
  • Battery condition
  • Valve operation

Multiple Zones Running Together

Possible causes:

  • Crossed zone wires
  • Wiring short
  • Incorrect terminal connection

Controller Turns On But Valve Doesn't Open

Check:

  • Solenoid coil
  • Common wire
  • Valve blockage
  • Battery condition

Recommended Products For Hunter Node Installations

For best performance, use:

Hunter Node Controllers

Suitable for battery-operated irrigation systems.

Hunter Solenoid Valves

Reliable and compatible with Hunter controllers.

Waterproof Wire Connectors

Essential for underground installations.

Irrigation Cable

High-quality multi-core irrigation cable improves reliability.

Professional Wiring Tips

  • Label every wire before installation
  • Use colour-coded wiring
  • Test zones before burying valves
  • Keep wiring diagrams for future maintenance
  • Replace damaged wiring immediately

These simple steps save hours of troubleshooting later.

Frequently Asked Questions

How many valves can a Hunter Node control?

Depending on the model:

  • 1 Station
  • 2 Station
  • 4 Station

Does every valve need a common wire?

Yes.

All valves share one common wire connection.

Can I use normal electrical connectors?

No.

Always use waterproof irrigation connectors.

Why won't my Hunter Node activate a valve?

The most common causes are:

  • Flat battery
  • Loose wiring
  • Faulty solenoid
  • Damaged valve
