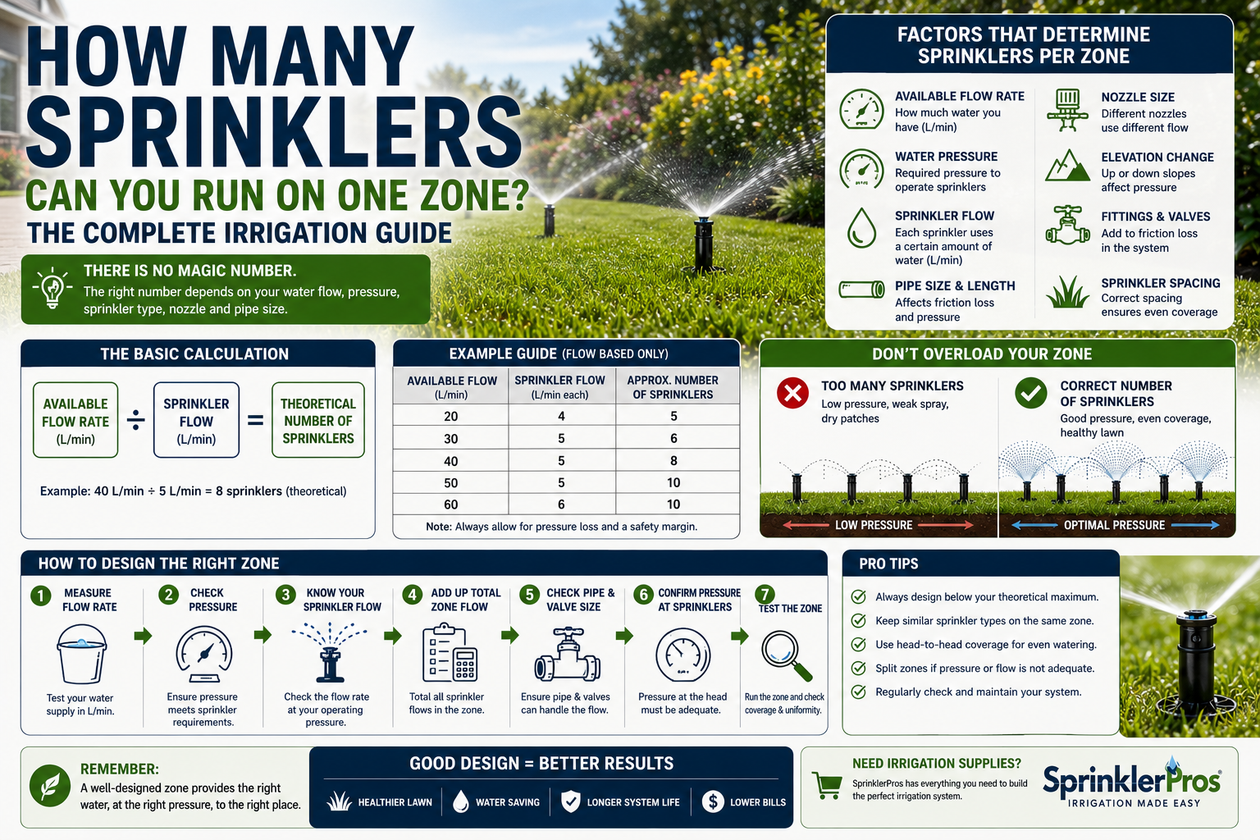

How Many Sprinklers Can You Run on One Zone? Complete Irrigation Guide
One of the most common questions when designing an automatic irrigation system is:
How many sprinklers can I run on one zone?
Unfortunately, there isn’t one number that works for every irrigation system.
You might be able to run 4 sprinklers on one zone, while another property could run 10 or more.
It depends on:
- Available water flow
- Water pressure
- Sprinkler type
- Nozzle size
- Sprinkler spacing
- Pipe size
- Pipe length
- Elevation
- Fittings
- Required operating pressure
The most important thing to understand is:
You don’t determine the number of sprinklers first. You determine how much water your zone can supply, then design the zone around that capacity.
In this guide, we’ll explain how to calculate sprinkler zone capacity and how to avoid the most common irrigation design mistakes.
Quick Answer: How Many Sprinklers Per Zone?
As a very rough example:
|
Available Flow |
Sprinkler Flow |
Approximate Number |
|---|---|---|
|
20 L/min |
4 L/min |
5 |
|
30 L/min |
5 L/min |
6 |
|
40 L/min |
5 L/min |
8 |
|
50 L/min |
5 L/min |
10 |
|
60 L/min |
6 L/min |
10 |
However, these are simple flow calculations only.
You should not design an irrigation zone using this table alone.
Pressure, pipe friction, elevation, sprinkler performance and a suitable safety margin also need to be considered.
The Most Important Number: Flow Rate
The first thing you need to know is how much water your property can supply.
Flow rate is usually measured in:
Litres per minute (L/min)
For example, suppose your water supply can provide:
40 L/min
Your sprinkler nozzles require:
5 L/min each
The simple calculation is:
40 ÷ 5 = 8 sprinklers
So you might initially think you can run:
8 sprinklers
But that doesn’t necessarily mean 8 sprinklers will operate correctly.
Why?
Because your system also needs enough pressure.
Flow Rate vs Water Pressure
This is where many DIY irrigation designs go wrong.
Flow rate
Flow tells you:
How much water is available.
Pressure
Pressure tells you:
How strongly that water can operate the irrigation equipment.
You need both.
A sprinkler might require a particular operating pressure to achieve its advertised radius.
If pressure drops too much, the sprinkler may not reach its intended distance.
That can result in:
- Dry patches
- Poor overlap
- Weak spray
- Uneven watering
- Reduced coverage
Example: Why Flow Alone Isn’t Enough
Imagine your property has:
Available flow = 40 L/min
You have sprinklers that use:
5 L/min each
The basic calculation says:
40 ÷ 5 = 8
But if you put all 8 sprinklers on one zone, the system may experience pressure loss.
This can happen because water must travel through:
- Pipe
- Valves
- Fittings
- Elbows
- Tees
- Risers
- Sprinkler bodies
All of these can contribute to pressure loss.
So instead of designing right at the theoretical maximum, you need to allow for the actual hydraulic performance of the system.
How to Calculate Sprinklers Per Zone
Use this as your starting calculation:
Available flow ÷ sprinkler flow = theoretical sprinkler capacity
For example:
40 L/min ÷ 5 L/min = 8
The theoretical capacity is:
8 sprinklers
But your actual zone may need fewer depending on pressure and system design.
A better approach is:
Step 1
Measure available flow.
Step 2
Determine required operating pressure.
Step 3
Look up the sprinkler’s flow at that pressure.
Step 4
Add the flow requirements of all sprinklers in the zone.
Step 5
Check the pipe and valve capacity.
Step 6
Confirm pressure at the sprinkler heads.
Step 7
Test the completed zone.
How to Measure Your Available Flow
You can get a rough measurement using a simple flow test.
One basic method is to measure how long it takes to fill a container of known volume.
For example:
Suppose you fill a:
10-litre bucket
in:
15 seconds
There are 60 seconds in a minute.
So:
60 ÷ 15 = 4
You could fill the bucket approximately 4 times per minute.
Therefore:
10 L × 4 = 40 L/min
Your measured flow would be approximately:
40 L/min
This is a useful starting point for irrigation planning.
However, actual available flow at the irrigation system can vary depending on the plumbing arrangement and pressure.
Why You Should Measure Flow Under Real Conditions
Don’t assume the flow from a tap automatically represents the flow available at every sprinkler.
Your system may include:
- Long pipe runs
- Small pipe
- Filters
- Valves
- Backflow devices
- Pumps
- Elevation changes
- Multiple fittings
These can affect system performance.
For larger irrigation projects, proper hydraulic calculations are recommended.
Sprinkler Flow Rate Matters
Not all sprinklers use the same amount of water.
For example:
Small spray nozzle
May use relatively little water.
Rotary nozzle
May use a different flow rate depending on model and pressure.
Rotor
Can require substantially more water depending on nozzle and operating conditions.
This means you cannot simply say:
“I can run 8 sprinklers.”
You need to know:
Which sprinklers and which nozzles?
How Many Pop-Up Sprinklers Can You Run on One Zone?
Pop-up sprinklers come in many different configurations.
A sprinkler body may be fitted with different nozzles.
The nozzle affects:
- Flow
- Radius
- Arc
- Distribution
For example, a quarter-circle nozzle may have a different flow requirement from a full-circle nozzle.
That means:
4 × 90° sprinklers
may require a different total flow than:
4 × 360° sprinklers
even if the sprinkler bodies are identical.
How Many MP Rotators Can You Run on One Zone?
MP Rotators are another example where the answer depends on the exact model and nozzle.
Different MP Rotator models can have different:
- Radius
- Arc
- Flow
- Pressure requirements
You should use the manufacturer’s performance data for the specific nozzle and operating pressure.
For example, don’t calculate your zone based on:
“An MP Rotator uses X litres per minute.”
Instead, identify:
Exact model + nozzle + arc + operating pressure
and use the corresponding flow specification.
How Many Rotors Can You Run on One Zone?
Rotors generally use more water than many small spray nozzles, although actual flow depends heavily on the rotor model and nozzle.
For example, a large lawn might require:
4 rotors
while another system might require:
6 rotors
The correct number depends on the total flow and pressure available.
Large rotor zones often require more careful pipe sizing than small residential spray zones.
Don’t Mix Sprinklers Without Checking Precipitation
One of the biggest mistakes in irrigation design is mixing different sprinkler types on the same zone.
For example:
Pop-up spray
Rotor
MP Rotator
may have different application rates.
Even if they can technically operate at the same pressure, they may not apply water at the same rate.
This can result in:
One area being overwatered
while:
Another area remains dry.
Whenever possible, group sprinklers with similar application characteristics together.
What Is Head-to-Head Coverage?
Head-to-head coverage means the water from one sprinkler reaches toward the next sprinkler.
For example:
● → 💧 ← ●
The goal is to provide overlapping coverage.
This is particularly important for lawn irrigation.
You shouldn’t determine the number of sprinklers simply by asking:
“How far can this sprinkler spray?”
Instead, ask:
“How should these sprinklers be spaced to achieve appropriate coverage?”
Example: A 10 × 10 Metre Lawn
Imagine you have a:
10 m × 10 m lawn
You may initially think:
“One sprinkler in the middle should cover it.”
But a single sprinkler may not provide adequate uniformity.
A better layout could involve sprinklers positioned around the perimeter and/or within the lawn depending on the sprinkler’s performance characteristics.
For example:
●────────●
│ │
│ │
●────────●
The exact layout depends on the sprinkler’s radius, pressure, nozzle and manufacturer’s recommended spacing.
Why Corners Are Important
Corners can be difficult to irrigate efficiently.
A full-circle sprinkler in a corner would waste water outside the lawn.
Instead, a quarter-circle nozzle may be more appropriate.
For example:
90° nozzle → corner
180° nozzle → edge
360° nozzle → open area
This can significantly improve water efficiency.
How Many Sprinklers Can You Run on a 25mm Pipe?
There is no universal number.
Pipe size alone does not determine zone capacity.
You also need to know:
- Pipe length
- Flow rate
- Pressure
- Pipe material
- Elevation
- Number of fittings
- Valve size
- Sprinkler requirements
A short 25 mm pipe run can perform very differently from a long 25 mm pipe run.
So don’t use:
“25 mm pipe = X sprinklers”
as a fixed rule.
Does Bigger Pipe Mean More Sprinklers?
Generally, larger pipe can reduce friction losses and allow greater flow capacity.
For example:
19 mm pipe
may be appropriate for some smaller systems.
25 mm pipe
may be appropriate for larger residential zones.
32 mm or larger
may be appropriate for higher-flow systems.
But pipe size should be selected based on the hydraulic design.
Simply installing the largest pipe possible isn’t necessarily the best solution either.
How Pipe Length Affects Sprinkler Performance
Imagine two systems.
System A
25 mm pipe
10 metre run
System B
25 mm pipe
100 metre run
They are not hydraulically equivalent.
The longer pipe creates more opportunity for friction losses.
As pipe length increases, pressure at the end of the line can decrease.
This is particularly important when sprinklers are located far from the valve.
How Elevation Affects Irrigation Zones
Elevation can significantly affect irrigation pressure.
If the sprinkler zone goes uphill, pressure can decrease.
If the system goes downhill, pressure can increase.
This means a flat property and a sloping property may require different irrigation designs even if they have the same lawn size.
For properties with significant elevation changes, consider:
- Pressure regulation
- Check valves
- Separate zones
- Appropriate sprinkler selection
- Hydraulic calculations
What Happens If You Put Too Many Sprinklers on One Zone?
This is one of the most common irrigation problems.
You may notice:
Sprinklers don’t pop up properly
The pressure may be too low.
Sprinklers don’t reach their advertised radius
Insufficient pressure can reduce throw distance.
Some sprinklers work better than others
Pressure may vary throughout the zone.
Dry patches appear
Poor coverage results from inadequate sprinkler performance.
Sprinklers mist
Excessive pressure can also create problems.
Watering takes longer
You may need longer run times to compensate for poor distribution.
Signs Your Zone Has Too Many Sprinklers
Look for:
✔ Weak spray
✔ Reduced radius
✔ Sprinklers failing to pop up fully
✔ Large differences in coverage
✔ Dry areas
✔ Excessive misting
✔ Pressure dropping when multiple sprinklers operate
If you see these symptoms, the zone may need to be redesigned.
How to Fix a Zone With Too Many Sprinklers
You have several options.
Option 1: Split the Zone
Instead of:
8 sprinklers
create:
Zone 1 = 4 sprinklers
Zone 2 = 4 sprinklers
The controller operates them separately.
Option 2: Use Lower-Flow Nozzles
Depending on the application, you may be able to select nozzles with lower flow requirements.
However, don’t simply install a smaller nozzle without checking whether it still provides the required coverage.
Option 3: Increase Pipe Size
If the existing pipe is causing significant friction losses, a larger pipe may improve hydraulic performance.
However, changing pipe size isn’t always the simplest or most economical solution.
Option 4: Redesign the Sprinkler Layout
Sometimes the problem isn’t the number of sprinklers.
It may be:
- Poor spacing
- Incorrect sprinkler type
- Incorrect nozzle
- Wrong arc
- Poor zone grouping
A complete redesign may be the best solution.
Can I Run Sprinklers and Drip Irrigation on the Same Zone?
Usually, it is better to keep them separate.
For example:
Zone 1
Lawn sprinklers
Zone 2
Garden dripline
Why?
Because they have different:
- Pressure requirements
- Flow rates
- Application rates
- Watering schedules
For a mixed garden, separate zones generally provide much better control.
How Many Sprinklers Can a Tap Run?
This depends entirely on the tap’s available flow and pressure.
Don’t use the tap’s pipe diameter alone to determine capacity.
Measure or establish:
Available flow
and:
Available operating pressure
Then compare those numbers with your sprinkler requirements.
A small tap with good flow and pressure may perform better than a larger-looking connection with poor supply conditions.
Can a Water Pump Run More Sprinklers?
A properly selected pump can provide additional flow and/or pressure where the existing water supply is insufficient.
However, pump selection needs to consider:
- Required flow
- Required pressure
- Total head
- Pipe size
- Suction conditions
- Pump efficiency
- Water source
Don’t simply buy a high-powered pump and connect it to an existing irrigation system.
The entire system should be designed around the pump’s performance curve.
How Many Zones Does My Property Need?
There is no fixed number.
A small property may need:
2–3 zones
A medium property may need:
4–6 zones
A larger property may require:
6+ zones
But the number should be determined by:
- Available water supply
- Lawn size
- Garden size
- Irrigation type
- Flow requirements
- Plant requirements
- Pressure
- Property layout
A good zone isn’t necessarily the one with the most sprinklers.
It’s the zone where the equipment operates correctly.
Example: Designing a 40 L/min System
Let’s say you have:
Available flow = 40 L/min
And your sprinkler requires:
5 L/min
The theoretical maximum is:
40 ÷ 5 = 8 sprinklers
However, instead of designing directly at the maximum, you may decide to create:
Zone 1
4 sprinklers
20 L/min
Zone 2
4 sprinklers
20 L/min
This provides additional capacity for pressure losses and system conditions.
The exact design still needs to be checked against the sprinkler manufacturer’s pressure requirements.
Example: Different Nozzles on the Same System
Suppose you have:
Sprinkler A
4 L/min
Sprinkler B
5 L/min
Sprinkler C
6 L/min
If you install:
2 × A
2 × B
2 × C
Your total flow is:
8 + 10 + 12 = 30 L/min
So the zone requires approximately:
30 L/min
before accounting for other hydraulic losses.
This is why you should calculate the flow of every sprinkler/nozzle, rather than assuming every sprinkler uses the same amount of water.
The Importance of Operating Pressure
Sprinkler specifications often provide performance data at different pressures.
For example, a sprinkler may have:
- Different radius at different pressures
- Different flow at different pressures
- Different distribution characteristics at different pressures
This means:
5 L/min at one pressure
doesn’t necessarily tell you everything about the sprinkler.
You need to know the complete operating condition.
Why Manufacturer Data Matters
When designing an irrigation zone, use the manufacturer’s technical data for the specific product.
Look for:
- Pressure
- Flow
- Radius
- Arc
- Precipitation rate
- Nozzle size
- Recommended spacing
This is much more reliable than using generic internet calculators.
SprinklerPros stocks irrigation products from manufacturers including Hunter and Rain Bird, whose technical specifications can be used to select the appropriate equipment for an irrigation design.
A Simple Zone Design Formula
For a basic starting point:
Total zone flow = sprinkler 1 + sprinkler 2 + sprinkler 3 + …
Then compare:
Total zone flow
against:
Available system flow
For example:
5 + 5 + 5 + 5 = 20 L/min
Therefore:
Zone demand = 20 L/min
If your available supply is significantly above this and pressure remains adequate, the zone may be suitable.
But remember:
Flow capacity alone does not confirm a successful zone.
What Is the Best Number of Sprinklers Per Zone?
There isn’t a magic number.
Instead, aim for a zone where:
- Sprinklers operate at their required pressure
- Total flow is within the available supply
- Coverage is consistent
- Pipe sizing is appropriate
- Sprinklers have appropriate spacing
- Nozzles are correctly selected
- The zone can be scheduled effectively
In some situations:
3 sprinklers = correct
In another:
8 sprinklers = correct
And in a large system:
12+ sprinklers = possible
The design determines the answer.
Sprinkler Zone Design Checklist
Before finalising a zone, check:
☐ Available water flow
☐ Operating pressure
☐ Sprinkler model
☐ Nozzle model
☐ Nozzle arc
☐ Sprinkler flow
☐ Total zone flow
☐ Pipe size
☐ Pipe length
☐ Valve capacity
☐ Elevation
☐ Sprinkler spacing
☐ Head-to-head coverage
☐ Precipitation rate
☐ Controller capacity
☐ Final zone testing
Common Mistakes When Calculating Sprinklers Per Zone
Mistake 1: Counting sprinkler heads
You cannot say:
“I have 8 sprinklers, so I need an 8-sprinkler zone.”
Every sprinkler can have a different flow requirement.
Mistake 2: Ignoring the nozzle
The nozzle can determine the actual flow of a spray body.
Mistake 3: Ignoring pressure
A system can have enough theoretical flow but still fail because operating pressure is inadequate.
Mistake 4: Ignoring pipe length
Long pipe runs can increase friction losses.
Mistake 5: Mixing irrigation types
Dripline and sprinklers generally shouldn’t be treated as identical equipment.
Mistake 6: Designing at the absolute maximum
A theoretical calculation isn’t necessarily a good practical design.
Frequently Asked Questions
How many sprinklers can I run on one zone?
There is no universal number. Calculate the total flow required by the sprinklers and compare it with the available flow and pressure.
How many pop-up sprinklers can I put on one zone?
It depends on the nozzle flow, operating pressure, pipe size, pipe length and available water supply.
How many MP Rotators can I run on one zone?
The number depends on the exact MP Rotator model, nozzle, arc, pressure and available flow.
Can I run 10 sprinklers on one zone?
Potentially, yes. But only if the available water supply, pressure, pipework and sprinkler specifications support the total demand.
How do I know if I have too many sprinklers on one zone?
Weak spray, reduced radius, incomplete pop-up, uneven coverage and dry areas can indicate that the zone is overloaded or poorly designed.
Should I split my irrigation into more zones?
If your current zones don’t have enough flow or pressure, splitting them can be an effective solution.
Does bigger pipe allow more sprinklers?
Larger pipe can reduce friction losses and support higher flow, but the actual number of sprinklers still depends on the complete hydraulic design.
Can I run sprinklers from an outdoor tap?
Possibly. You need to determine the available flow and pressure before designing the zone.
Can a pump increase the number of sprinklers?
A correctly selected pump can provide the flow and pressure required for a larger system, but pump selection should be based on the complete irrigation design.
Should all sprinklers on one zone be the same?
They don’t necessarily need to be identical, but sprinklers on the same zone should have compatible pressure, application rate and watering requirements.
Final Answer: How Many Sprinklers Per Zone?
So, how many sprinklers can you actually run?
There is no universal number.
The correct number is determined by:
Available flow
Required pressure
Sprinkler flow
Nozzle selection
Pipe size
Pipe length
Elevation
Sprinkler spacing
The simplest calculation is:
Available flow ÷ sprinkler flow = theoretical number of sprinklers
But a proper irrigation design goes further than that calculation.
For example, if you have 40 L/min available and each sprinkler uses 5 L/min, the theoretical capacity is 8 sprinklers.
That doesn’t automatically mean you should install 8 sprinklers on the same zone.
The sprinklers still need to operate at the correct pressure and provide the required coverage.
The golden rule:
Design the zone around hydraulic capacity, not the number of sprinkler heads.
A properly designed irrigation zone will give you better coverage, fewer dry spots, more reliable sprinkler performance and a more efficient irrigation system.
If you’re designing a new irrigation system, start with our guide:
How to Design a Sprinkler System for Your Lawn
Then choose the appropriate sprinklers, nozzles, valves, pipe and controller for your project.
Need irrigation equipment? SprinklerPros supplies sprinklers, rotors, nozzles, valves, controllers, pipe and fittings for residential and professional irrigation systems.
