Product Description
The Complete Smart Control Solution

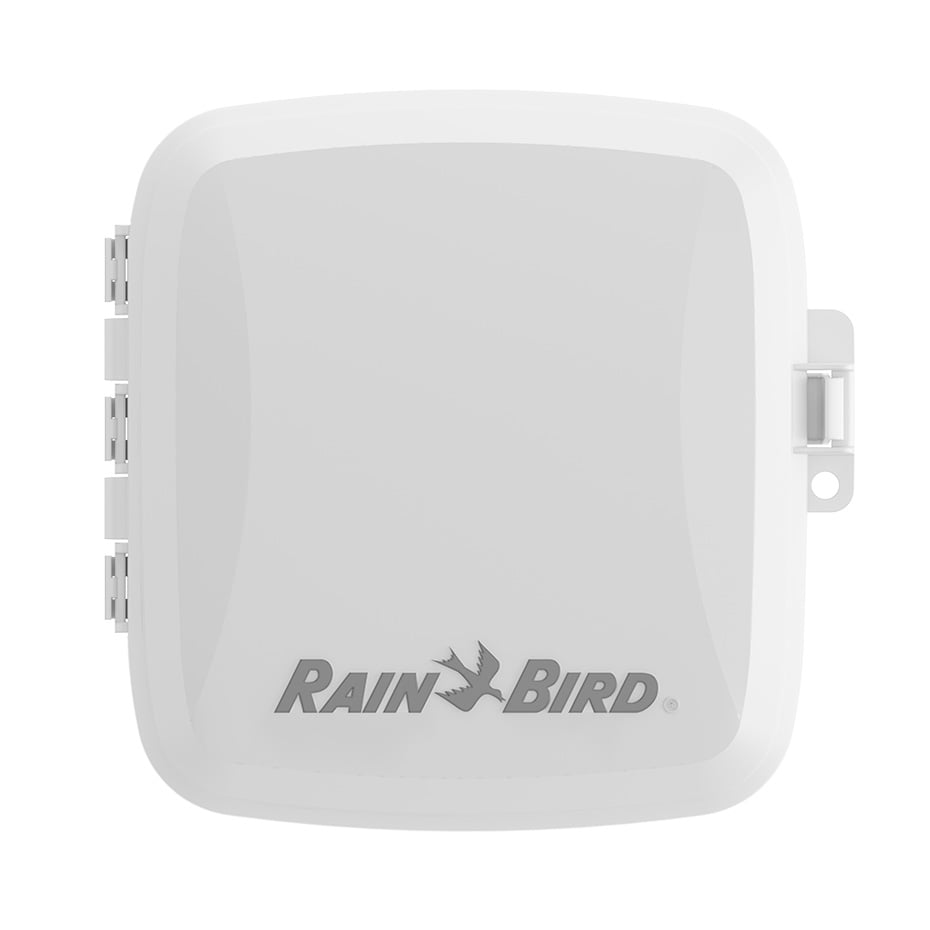

With the NEW Rain Bird RC2 Smart Irrigation Control Solution you can confidently manage your system from anywhere.
- NEW Quick Pair Technology for seamless set-up
- WiFi access for real-time alerts and automatic weather adjustments that can save water and money
- Controller access through the Rain Bird mobile app with or without WiFi
Features
Worry-Free System Install
Schedule templates for easy configurations
Quick pair technology
Wireless access point for complete system access without WiFi
Multi-Lingual to set-up in native language
Seamless Remote Management and Control
WiFi connected for remote site management.
With our free professional app you can use your phone like a wireless remote to water a single zone, all zones, or set a custom schedule.
Manage and monitor all irrigation events and warnings real-time.
Smart and Responsible
Weather data from local weather sources automatically adjust system run times on a daily basis. Your yard receives only the water it needs while saving up to 50% in water.
WaterSense certified with superior programming capabilities designed to meet the most stringent water restrictions. Â
Specs
Operating Specifications
2.4 GHz (only) WiFi router compatible with WEP and WPA security settings
Compatible with iOS 8.0 and Android 6 (Marshmallow) or later mobile devices
Operating Temperature: 14° F (-10° C) to 149°F (65°C)
Storage Temperature: -40°F (-40°C) to 150°F (66°C)
Operating Humidity: 95% max @ 40°F to 120°F (4°C to 49°C) non-condensing environment
Master Valve Control
Pre-Installed Power Cord (120V Model Only)
8-Station Capacity
4, 6, and 8 station indoor only models available in some international markets.
3 Programs, 4 Start times/program
Electrical Specifications
Input required: 120V∿, 60Hz,0.23A(International models:230V∿, 50-60Hz, 0.14A)
Output:Â 24V~, 60Hz, 1.0A Maximum (International models: 24V~, 50-60Hz, 1.0A Maximum) for outdoor models, .6A Maximum for indoor models
Regulatory Compliance
120V Models: UL, FCC, ISED
230V Outdoor Models: CE, UKCA, ACMA RCM
230V Indoor Models: CE
Dimensions
Width:Â 7.92 in. (20.1 cm)
Height:Â 7.86 in. (20.0 cm)
Depth:Â 3.51 in. (9.0 cm)
Indoor Only Models (for some international markets): Height: 16.8 cm, Width: 16.7 cm, Depth: 4 cm
