Pedrollo SS304 Multistage Submersible Pump 240V 0.37 KW 80 L/Min

Product Code NKm2/2
Availabilityin stock
Brand Pedrollo

$1,231.98
per
Tax included. Shipping calculated at checkout.

Product Description

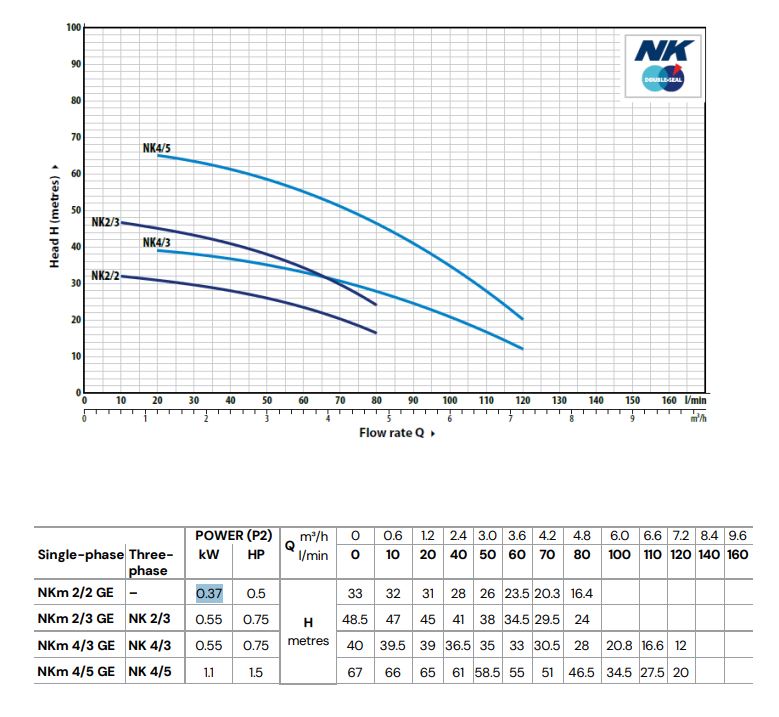

Specifications

Pump Model

Kw

Hp

Max Flow L/Min.

Max Head (m)

AMPS

Voltage

Connection Outlet (mm)

Cable

Size(mm) Height

Width

GW

Phase

NKm2/2

1.37

0.5

33

80

3.9

240

32

10

459

135

13

Single

 Application

  • Suitable for use with clean water in domestic, civil and agricultural applications
  • such as the distribution of water in combination with pressure
  • tanks, for the irrigation of gardens and orchards and for pressure
  • boosting, etc.

Features

  • Stainless steel AISI 304 pump body and motor sleeve
  • Noryl FE1520PW impeller
  • Stainless steel AISI 304 diaphragms complete with anti-wear ring
  • Mech seal, silicon carbide graphite NBR
  • Thermal overload protection
  • Up to 20 metres maximum immersion depth
  • Can be supplied complete with pre-wired, heavy-duty electronic controller

Construction

  • EXTERNAL SLEEVE Stainless steel AISI 304 complete with threaded delivery port in compliance with ISO 228/1
  • SUCTION FILTER Stainless steel AISI 304 complete with anti-vibration supports
  • MOTOR SLEEVE Stainless steel AISI 304
  • IMPELLERS AND DIFFUSERS Noryl FE1520PW
  • DIAPHRAGMS Stainless steel AISI 304
  • MOTOR SHAFT Stainless steel AISI 431
  • TWO MECHANICAL SEALS SEPARATED BY AN OIL CHAMBER
  • Seal Model STA-17 ST1-16
  • Shaft Diameter Ø 17 mm Ø 16 mm
  • Position Motor side Pump side
  • Materials
  • Stationary ring Ceramic Silicon carbide
  • Rotational ring Graphite Graphite

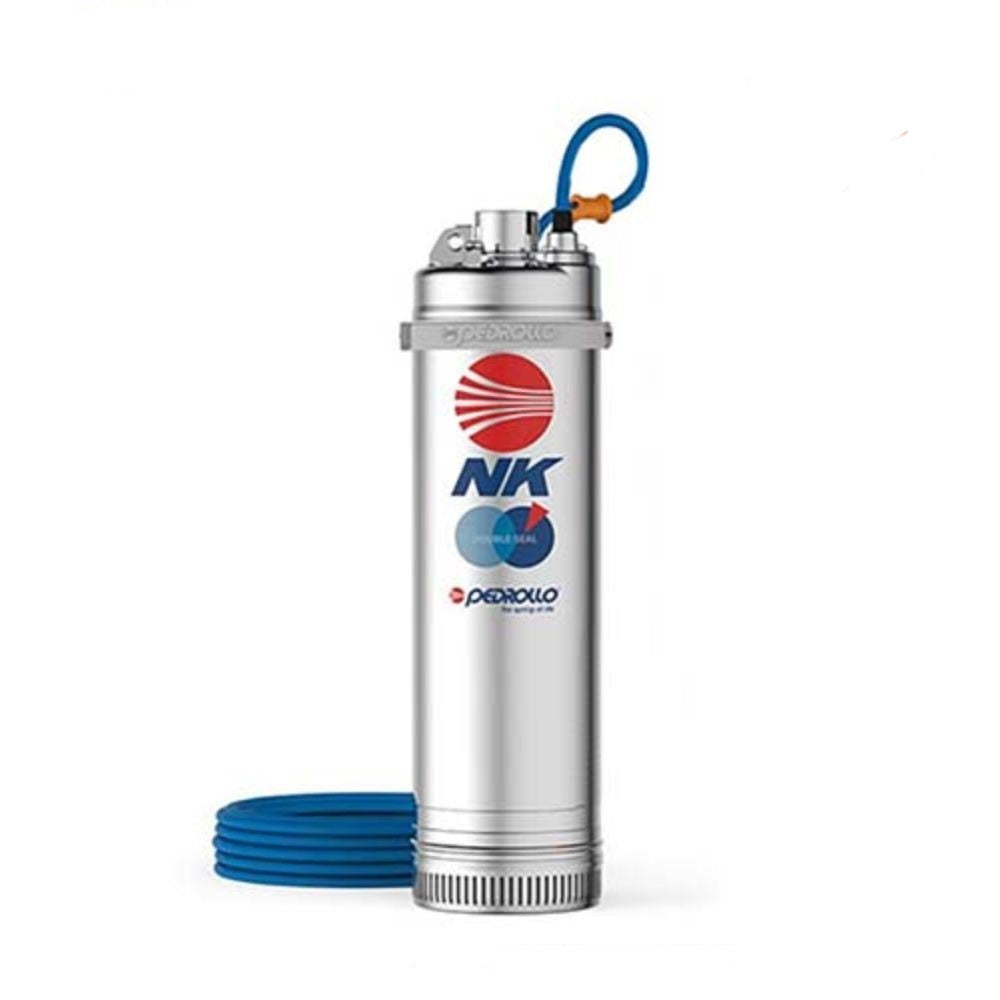

The product image shown is for illustration purpose only
