Oase Vitronic UVC Clarifier 11/18/24/36/55 Watt With 2 Years Warranty

Product Code 57370
Availabilityin stock
Brand Oase

$298.06
per
Tax included. Shipping calculated at checkout.

Product Description

Description

  • Clear pond water via UVC clarification
  • Highly effective against suspended algae, bacteria and germs
  • Can be combined with almost all off the shelf filters

Specification

Power

11 Watt

18 Watt

24 Watt

36 Watt

55 Watt

Rated voltage + frequency

230 V / 50 Hz

220 - 240 V / 50/60 Hz

220 - 240 V / 50/60 Hz

220 - 240 V / 50/60 Hz

220 - 240 V / 50/60 Hz

Power consumption - W

14 Watt

18 Watt

24 Watt

36 Watt

55 Watt

PoWatter cable length - m

3 m

5 m

5 m

5 m

5 m

Net weight

1.300 kg

2.120 kg

2.250 kg

2.280 kg

2.300 kg

Guarantee - years

2 Years

2 Years

2 Years

2 Years

2 Years


11 Watt

18 Watt

24 Watt

36 Watt

55 Watt

Temperature display

No

No

No

No

No

UVC operating hours meter

No

No

No

No

No

Function check

Visual

Visual

Visual

Visual

Visual

Number of inlets  pc.

1 Units

1 Units

1 Units

1 Units

2 Units

Connection inlet - mm

19 / 25 / 32 / 38 mm

25 / 32 / 38 mm

25 / 32 / 38 mm

25 / 32 / 38 mm

25 / 32 / 38 mm

Connection inlet

¾"", 1"", 1 ¼"", 1 ½""

1"", 1 ¼"", 1 ½""

1"", 1 ¼"", 1 ½""

1"", 1 ¼"", 1 ½""

1"", 1 ¼"", 1 ½""

Number of outlets  pc.

1 Units

2 Units

2 Units

2 Units

1 Units

Connections outlet - mm

19 / 25 / 32 / 38 mm

25 / 32 / 38 mm

25 / 32 / 38 mm

25 / 32 / 38 mm

25 / 32 / 38 mm

Connections outlet

¾"", 1"", 1 ¼"", 1 ½""

1"", 1 ¼"", 1 ½""

1"", 1 ¼"", 1 ½""

1"", 1 ¼"", 1 ½""

1"", 1 ¼"", 1 ½""

Max. flow rate - l/h

1700 l/h

3500 l/h

4500 l/h

6000 l/h

8500 l/h

Max. operating pressure  bar

0.5 bar

0.6 bar

0.6 bar

0.6 bar

0.6 bar

Suitable for ponds up to max.  m³

10 m³

20 m³

25 m³

40 m³

60 m³

Suitable for ponds with fish stock  m³

5 m³

10 m³

12.5 m³

20 m³

30 m³

Suitable for ponds with koi  m³

2.5 m³

5 m³

6.5 m³

10 m³

15 m³

Connection to



BioSmart 18000/36000, BioTec ScreenMatic² 40 - 60000

BioSmart 18000/36000, BioTec ScreenMatic² 40 - 60000

BioSmart 18000/36000, BioTec ScreenMatic² 40 - 60000



 Characteristics

  • Elimination of suspended algae (green water)
  • Reduction of harmful bacteria and pathogen level
  • Visual function check of the UVC bulb
  • Quick release for easy bulb change and cleaning of the quartz glass
  • Direct installation on the BioSmart filter (only Vitronic 18-36 W)
  • High quality workmanship with impact resistant plastic housing
  • Easy installation thanks to an extensive range of connection accessories
  • Incl. high quality UVC bulb
  • 100% protection against eye damage
  • Suitable for ponds up to 10.0 m³

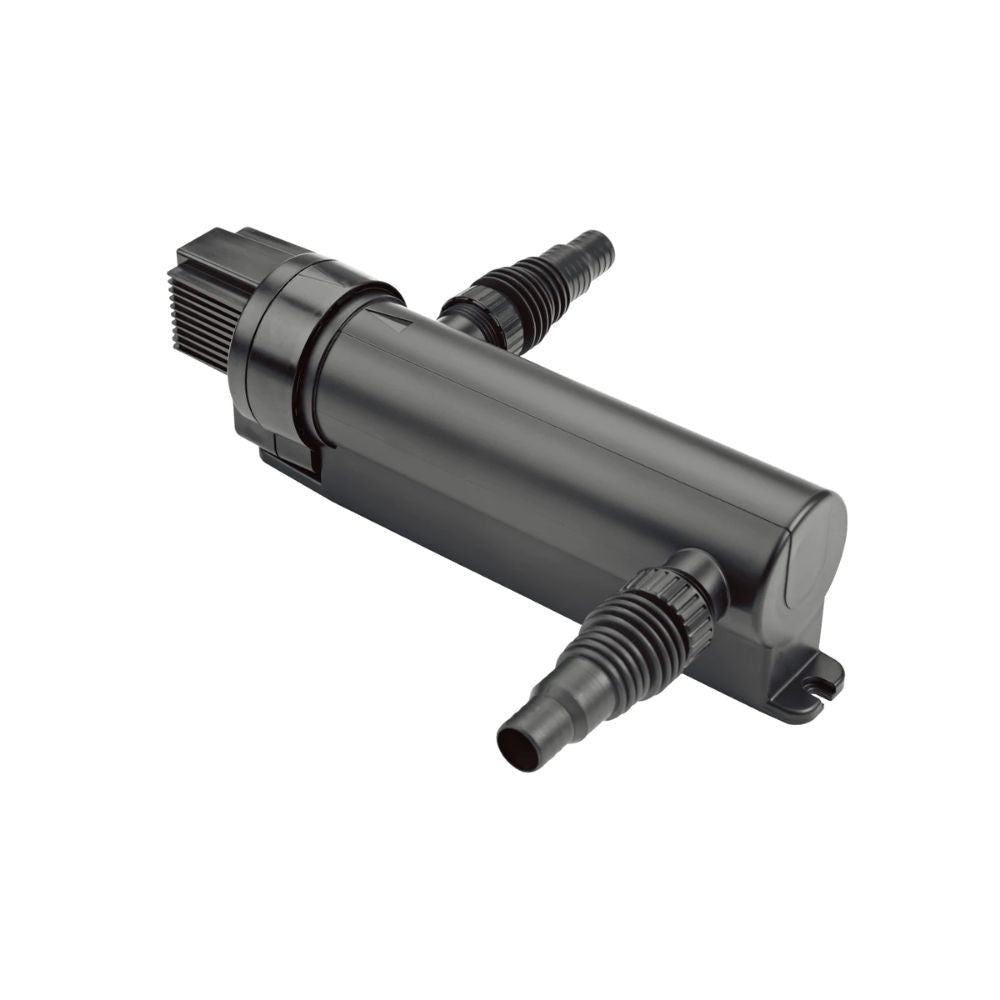

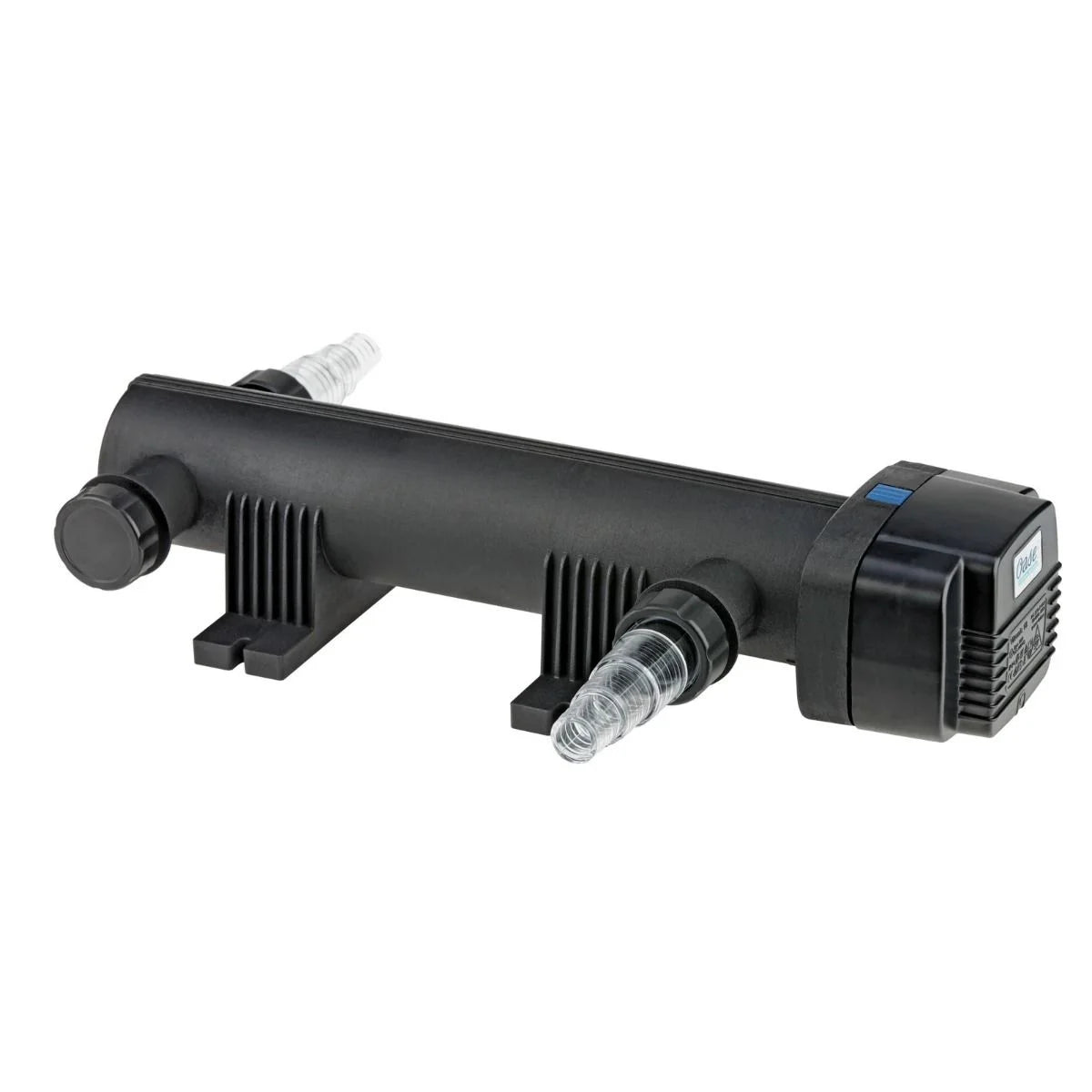

The product image shown is for illustration purpose only

"
