Layne Bowler Submersible Pump SU8RXM Bare Pump
Product Description
Description
- 29 Lps to 51 Lps - 6 BSP Outlet
The Layne Bowler Submersible Pump is designed for high performance and energy-efficiency. It is also built for long-lasting reliability. Standard sizes available include 6, 7 & 8-inch bowl diameters with capacities from 100 to 1200 GPM.
Submersible turbine pumps perform with the same hydraulics as lineshaft turbines. These pumps are found in deep-setting, high-head applications where the practical limits of long drive shafts and multiple shaft bearings are exceeded. They are also installed where dust, fumes, and/or high or low temperatures would affect the driver or discharge head sealing arrangement. Because the pump is located above the motor, water enters the pump through a screen located between the pump and motor. The pump curve for a submersible pump is very similar to a vertical turbine pump.
Submersible turbines are driven by a submersible motor coupled directly to the bowl shaft. The discharge piping requires only a simple discharge elbow at the discharge surface. There is no packing box or mechanical seal to maintain. Power to the motor is conducted via a waterproof cable.
|
Model |
Size |
Kw |
|
SU8RXM1-A |
8" |
15 |
|
SU8RXM2-A |
8" |
22 |
|
SU8RXM3-A |
8" |
37 |
|
SU8RXM4-A |
8" |
45 |
|
SU8RXM5-A |
8" |
55 |
|
SU8RXM6-A |
8" |
75 |
 Market Sectors:
- Industrial
- Agricultural
- Municipal
Applications:
- Deep Well Water Supply
- In-Line Booster
- Service Water
- Irrigation
- Mine Dewatering

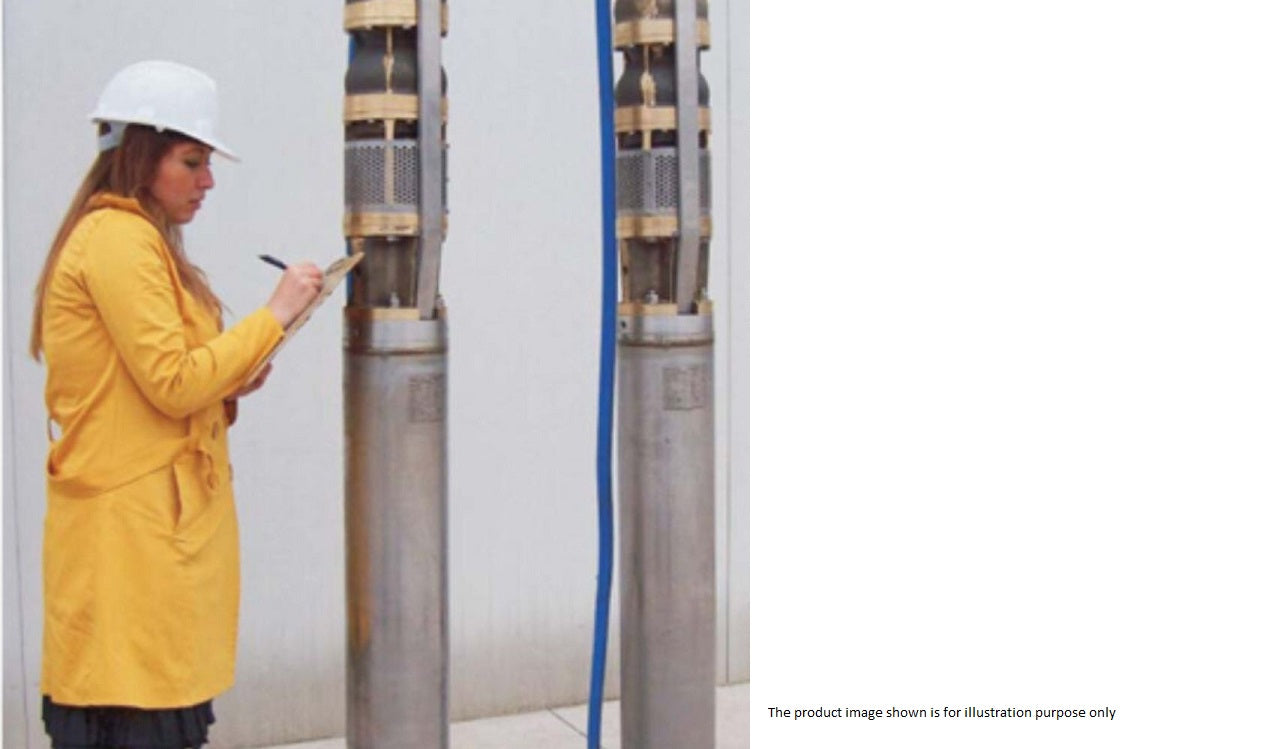

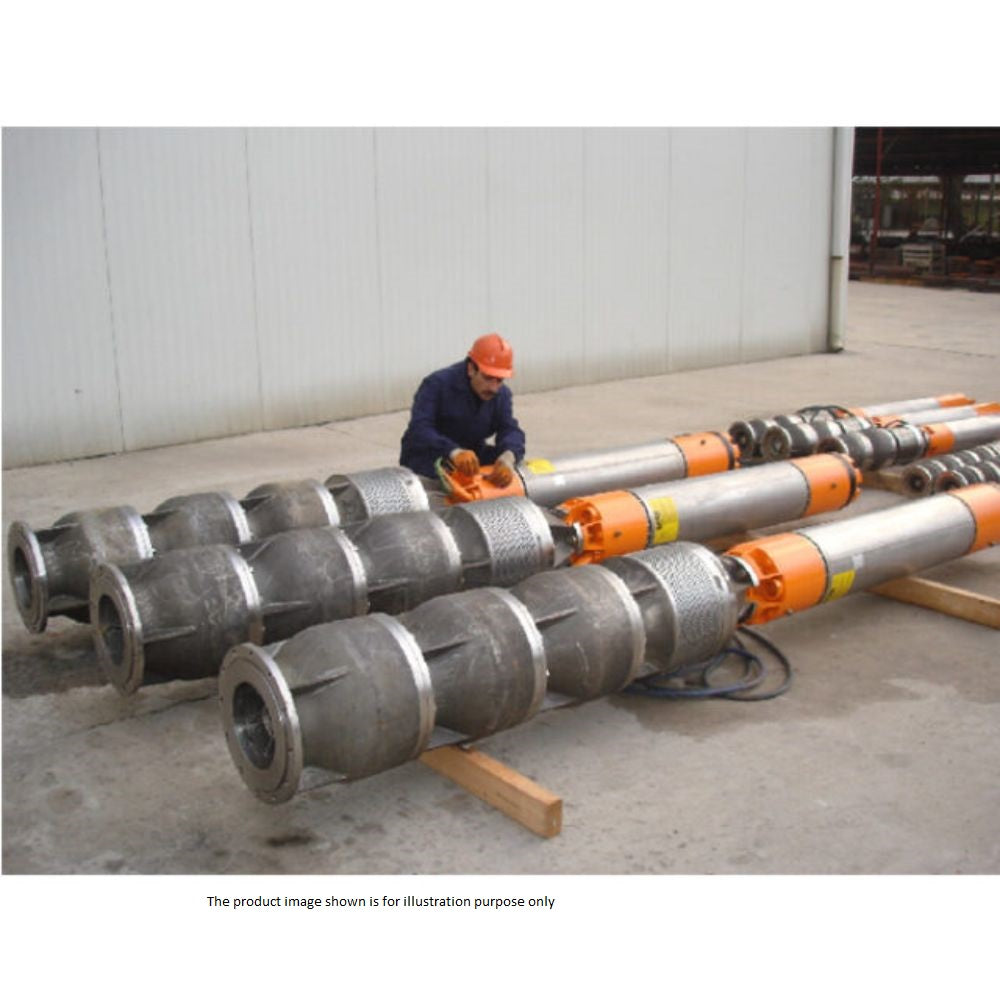

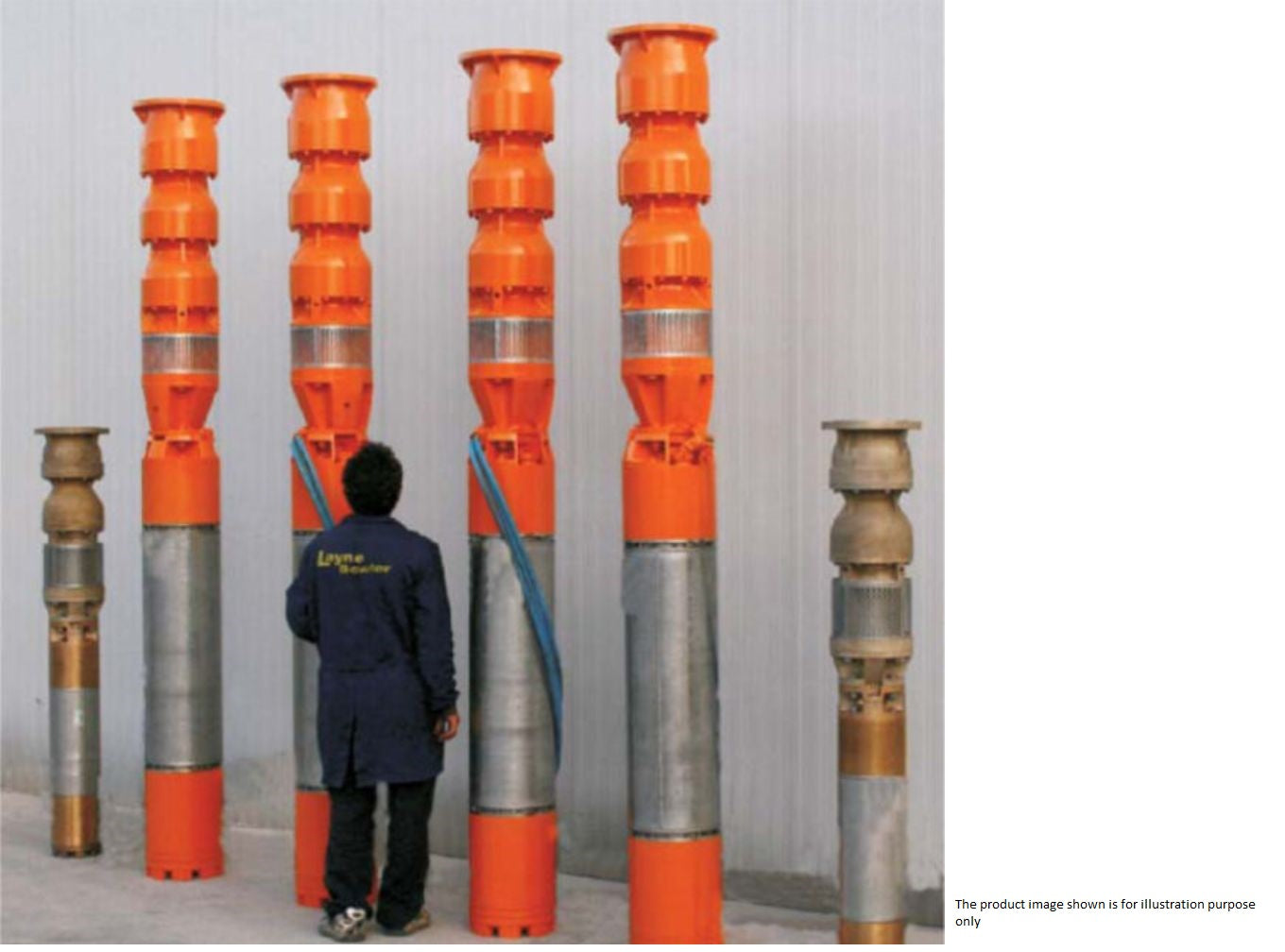

The product image shown is for illustration purpose only
