Layne Bowler Submersible Pump SU7SLh Bare Pump

Description

• 20 Lps to 42 Lps - 5 BSP Outlet

The Layne Bowler Submersible Pump is designed for high performance and energy-efficiency. It is also built for long-lasting reliability. Standard sizes available include 6, 7 & 8-inch bowl diameters with capacities from 100 to 1200 GPM.
Submersible turbine pumps perform with the same hydraulics as lineshaft turbines. These pumps are found in deep-setting, high-head applications where the practical limits of long drive shafts and multiple shaft bearings are exceeded. They are also installed where dust, fumes, and/or high or low temperatures would affect the driver or discharge head sealing arrangement. Because the pump is located above the motor, water enters the pump through a screen located between the pump and motor. The pump curve for a submersible pump is very similar to a vertical turbine pump.

Submersible turbines are driven by a submersible motor coupled directly to the bowl shaft. The discharge piping requires only a simple discharge elbow at the discharge surface. There is no packing box or mechanical seal to maintain. Power to the motor is conducted via a waterproof cable.

   Market Sectors:

• Industrial
• Agricultural
• Municipal

Applications:

• Deep Well Water Supply
• In-Line Booster
• Service Water
• Irrigation
• Mine Dewatering

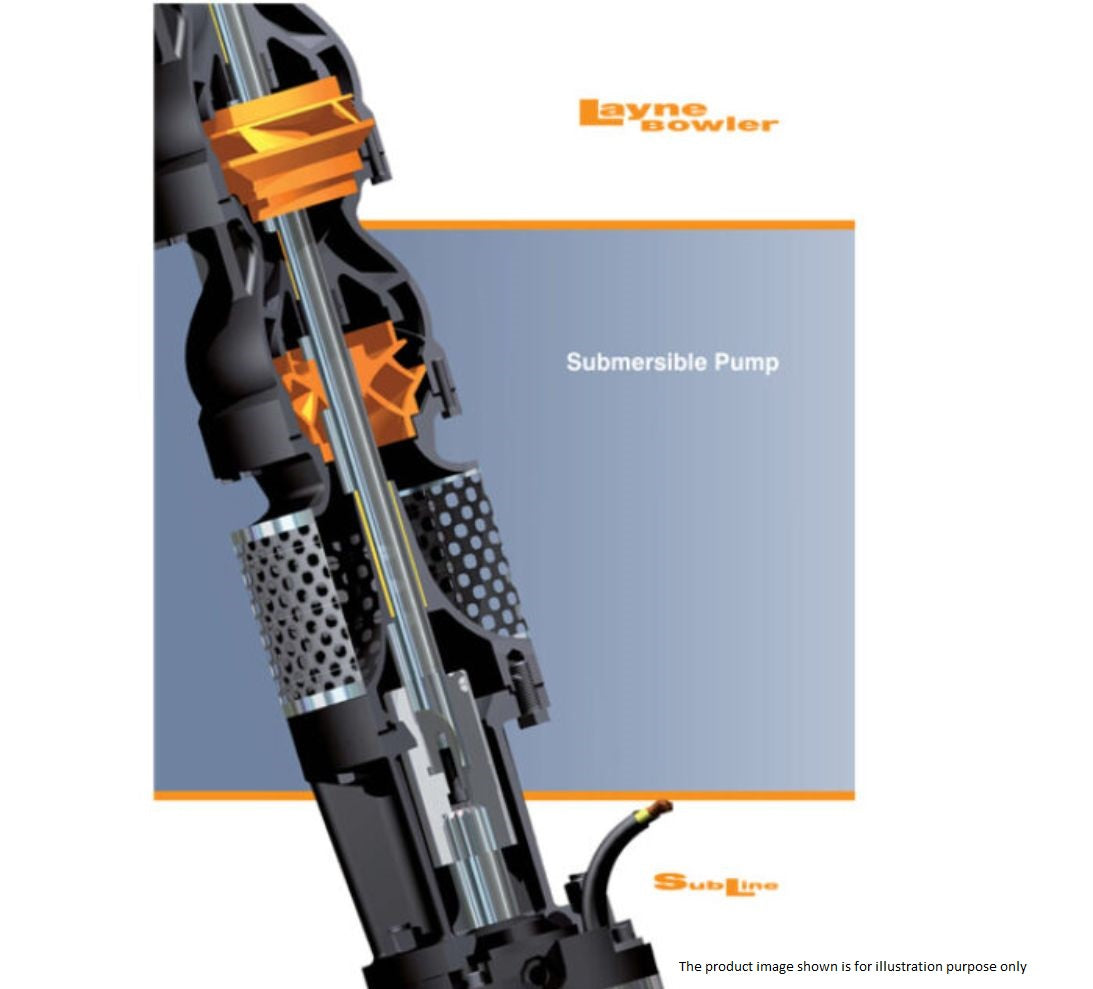

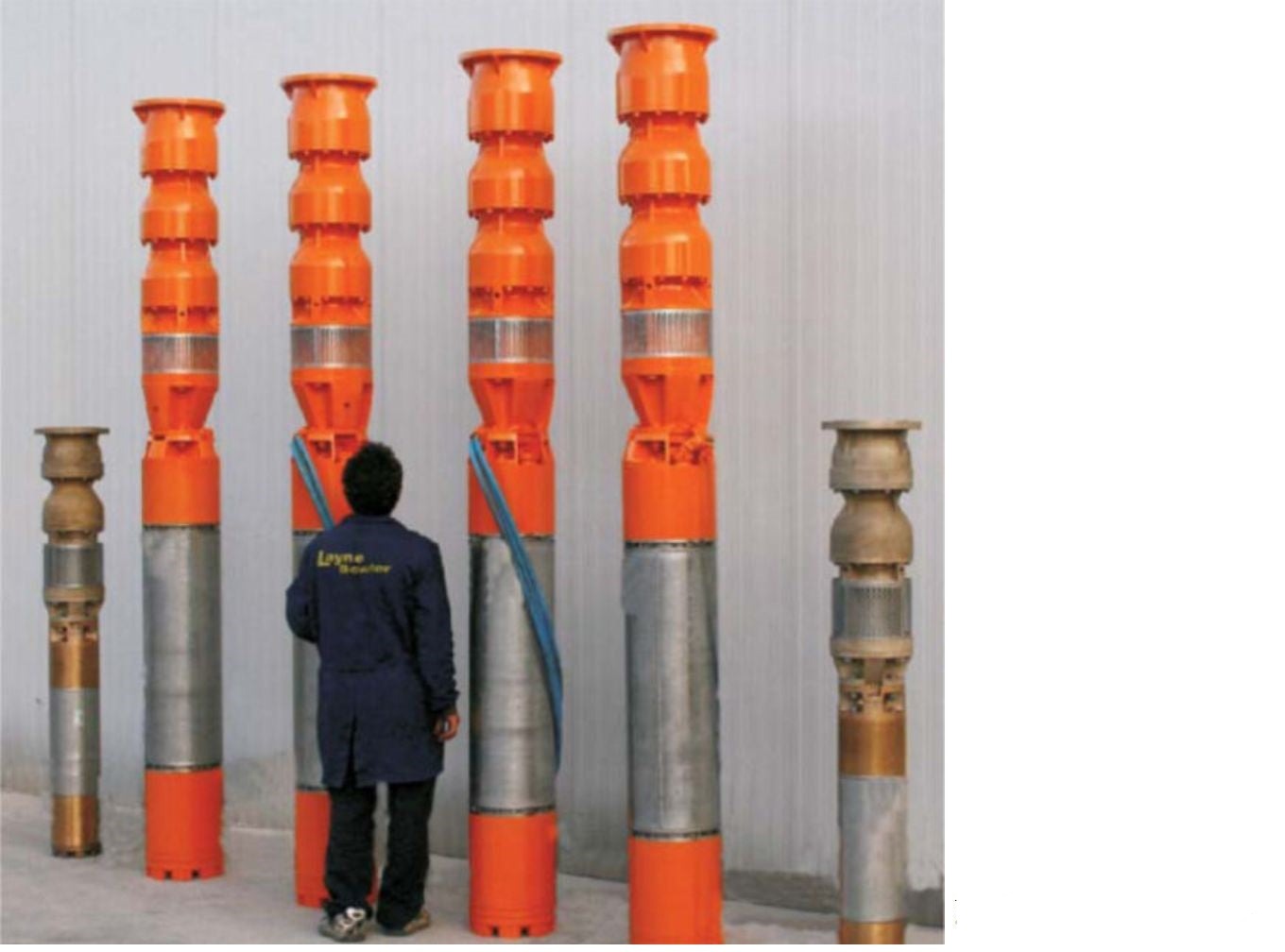

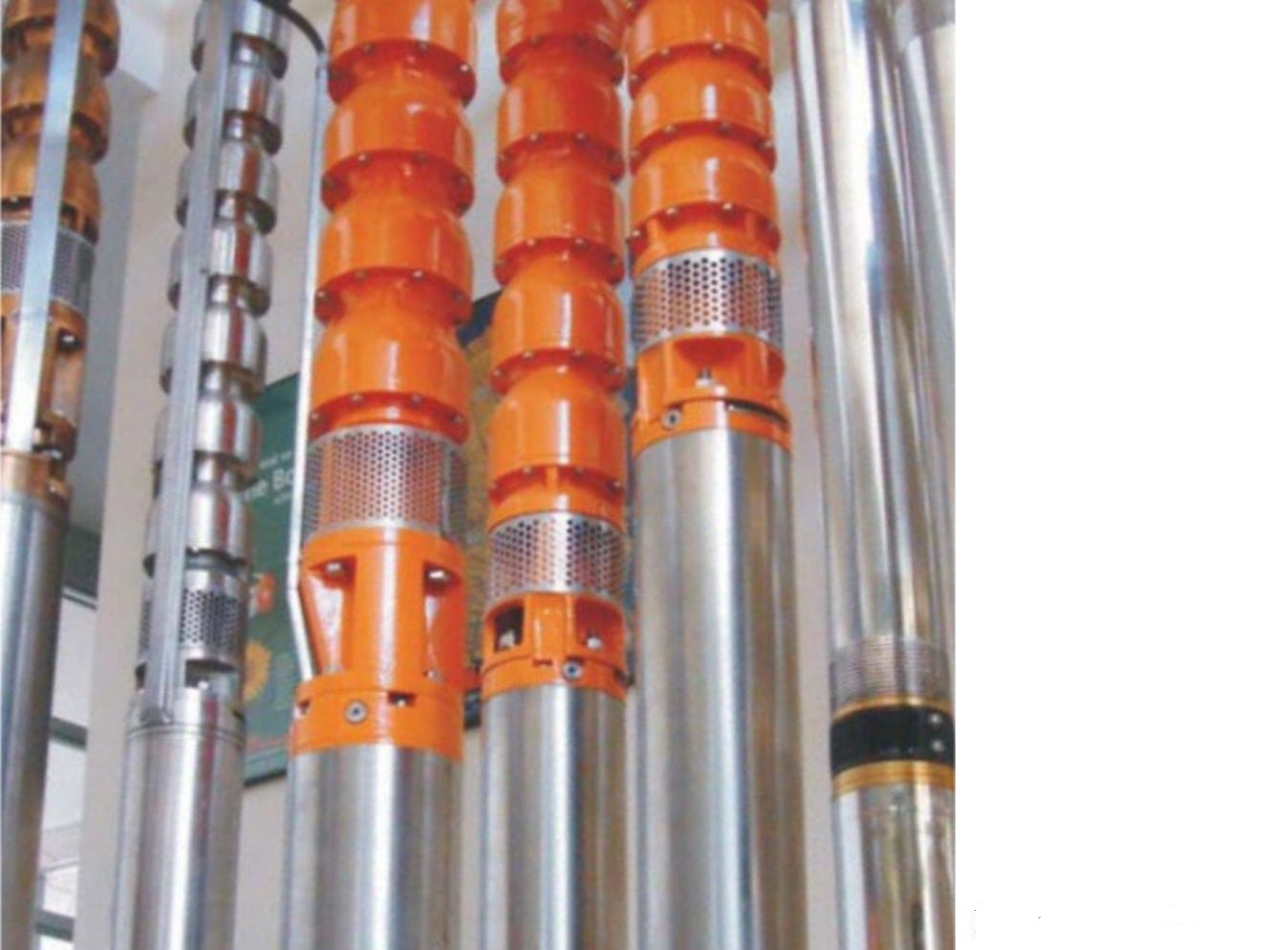

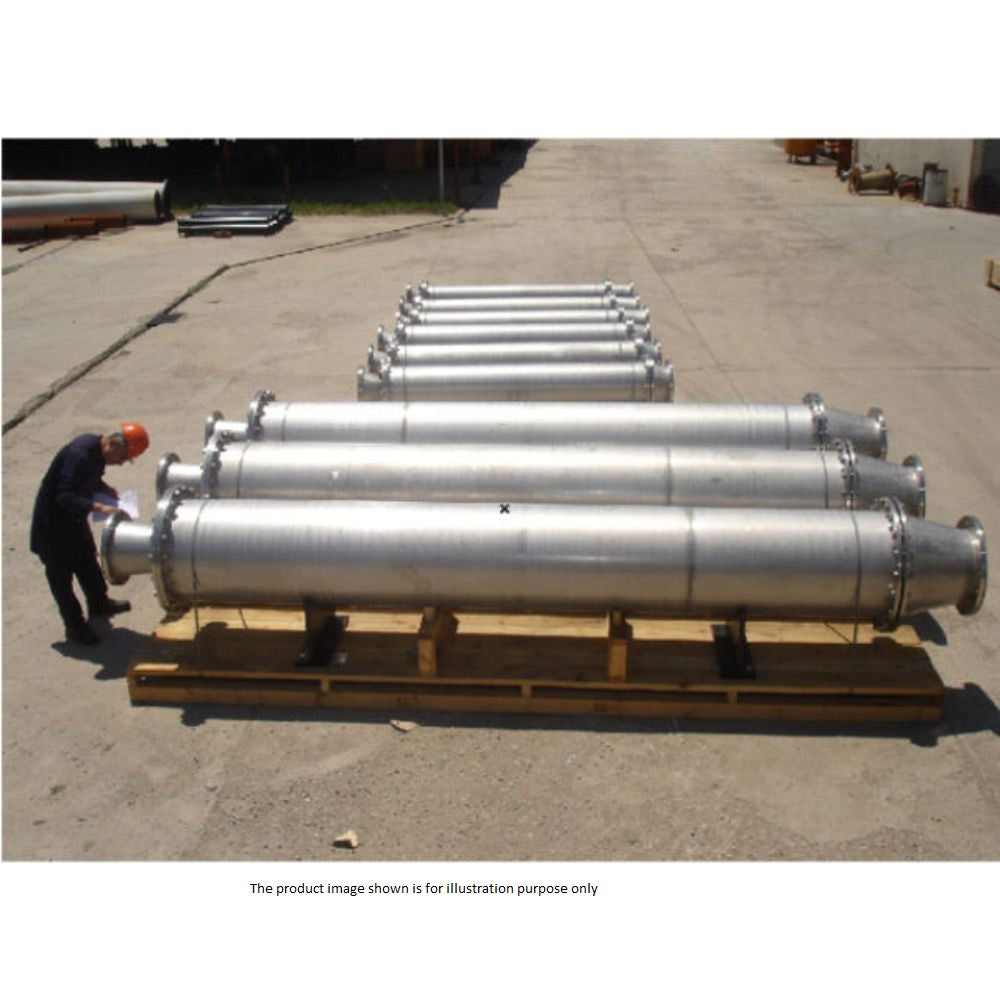

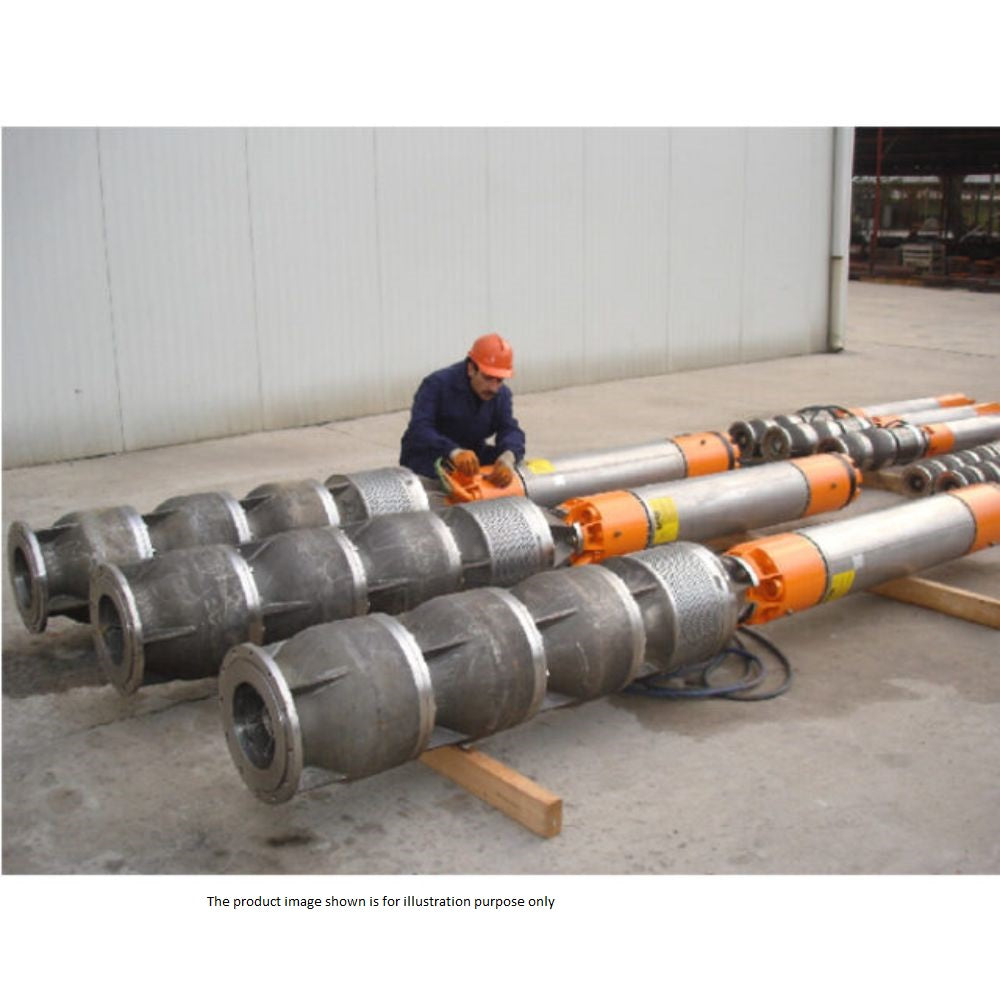

The product image shown is for illustration purpose only
