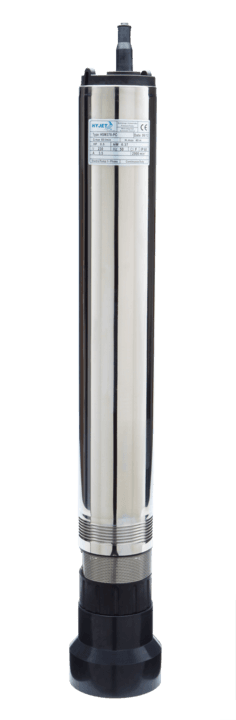

Hyjet Multistage Submersible Pump With In Built Pressure Controller
$900.00
Tax included.
Shipping calculated at checkout.
Product Description
Specifications:
|
Pump Model |
HSM750-PC |
HSM1100-PC |
|
POWER (KW) |
0.75 |
1.5 |
|
HP |
1 |
1.5 |
|
MAX FLOW L/Min |
115 |
98 |
|
MAX HEAD (M) |
36 |
36 |
|
Voltage |
240 |
240 |
|
CONNECTION Outlet (mm) |
25 |
25 |
|
CONNECTION Inlet (mm) |
|
|
|
CABLE |
5 |
16 |
|
PHASE |
Single |
Single |
|
Size (mm) Height/Length |
540 |
950 |
|
Size (mm) Width |
160 |
100 |
|
GW |
16 |
13 |
Applications
- Household water supply & irrigation Submersible installation
- Water transfer
- Pressure boosting
- Industrial wash down
Features
- Fully automatic pressure system
- Run dry protection
- Inbuilt electronic controls
- Automatic reset
- Quiet operation
Constructions
- Pump casing: Stainless steel AISI 304
- Motor shaft: Stainless steel AISI 304
- Impellers: Techno polymer
- Diffuser: Techno polymer
- Double mechanical seal: silicon carbide, graphite / ceramic, graphite
- Motor IP68
- Cooled motor (by water) of Class F and thermal protection
- Electric power cable HO7RN 5m with 3 pin
The product image shown is for illustration purpose only
