Frequently Asked Questions
What makes the Holman CO1609 different from a standard tap timer?
Can I use the CO1609 for a greenhouse?
Product Description

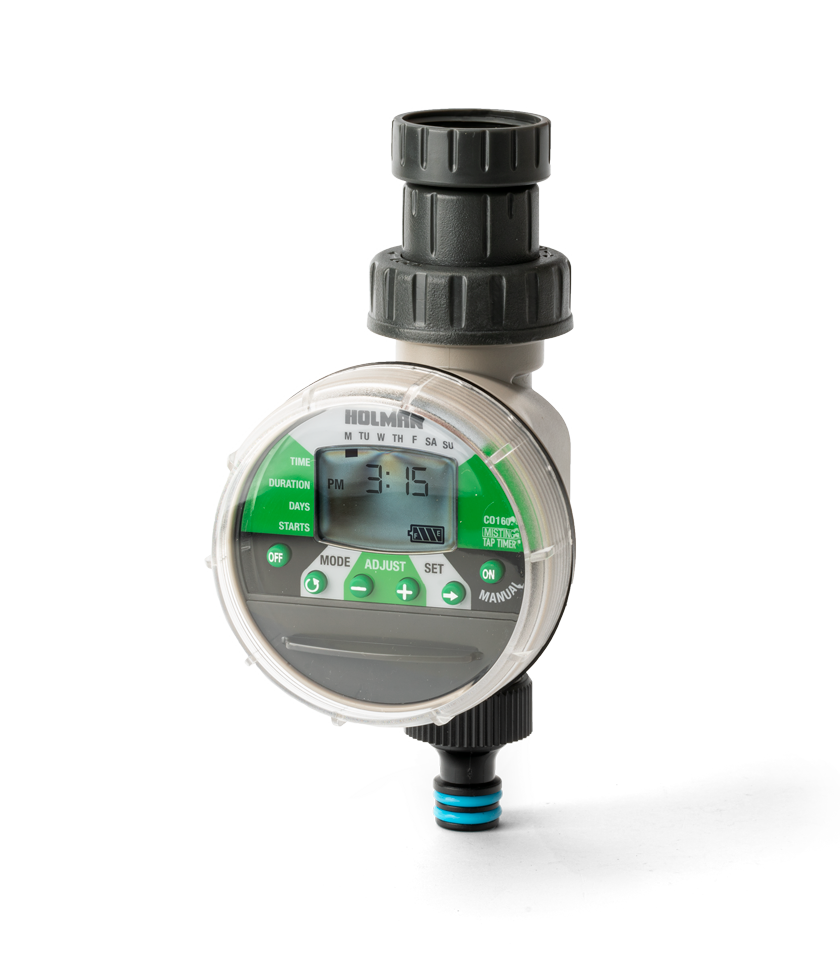

The Holman CO1609 Misting Tap Timer provides automatic control for misting systems, greenhouses, vertical gardens and other applications requiring short, repeated watering intervals.
Unlike a standard tap timer, the CO1609 is designed specifically for cyclical misting, allowing you to set a START TIME and STOP TIME and then control how long the water remains ON and OFF during that period.
For example, you can program the timer to start at 6:00 am, run the misting system for 5 seconds, stop for 40 seconds, and continue repeating this cycle until the programmed stop time.
The timer supports watering intervals in seconds, minutes and hours, providing the precision needed for misting applications and greenhouse watering. It can also be operated automatically or manually when required.
Key Features
- Designed specifically for misting systems
- Automatic and manual operation
- 7-day watering schedule
- Programmable START and STOP times
- Adjustable ON and OFF intervals
- Programming in seconds, minutes and hours
- Ideal for short-burst misting
- Suitable for greenhouses and vertical gardens
- Easy-to-read digital display

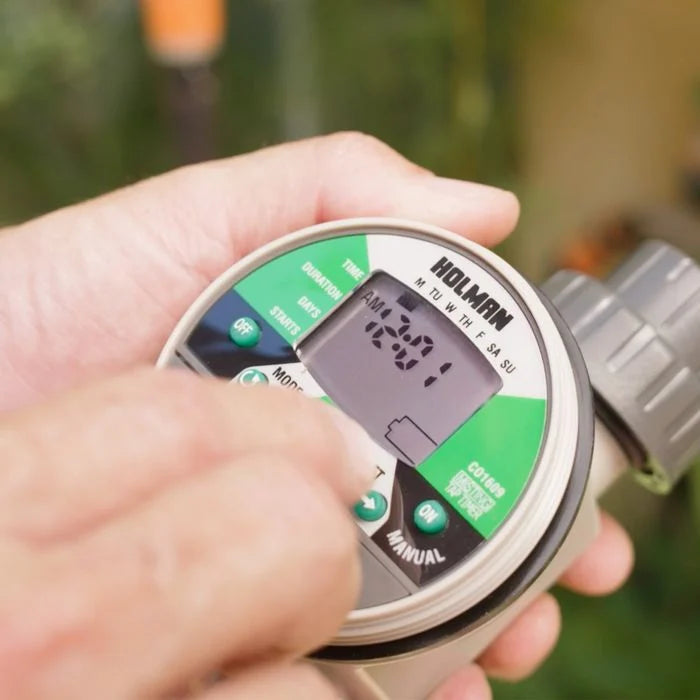

- 6-button programming
- 9V battery powered
- 12mm snap-on outlet connection
- Operating pressure from 100–600 kPa
- Recommended for use with a pressure reducer where appropriate
- 2-year warranty
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Holman |
| Model | CO1609 |
| Product Code | CO1609 |
| Product Type | Misting Tap Timer |
| Material | Plastic |
| Colour | Grey |
| Battery | 1 × 9V alkaline battery |
| Battery Included | No |
| Fitting Size | 12mm |
| Fitting Type | Snap-on |
| Minimum Pressure | 100 kPa |
| Maximum Pressure | 600 kPa |
| Installation | Above ground |
| Weight | 0.23 kg |
| Dimensions | 111 × 85 × 165 mm |
| Warranty | 2 years |
Specifications are based on Holman's current product information.
Flow Rate
| Water Pressure | Flow Rate |
|---|---|
| 100 kPa | 17.8 L/min |
| 200 kPa | 21.8 L/min |
| 300 kPa | 27.8 L/min |
| 400 kPa | 32.0 L/min |
| 500 kPa | 35.8 L/min |
Ideal Applications
- Outdoor patio misting
- Cooling outdoor entertaining areas
- Greenhouses
- Vertical gardens
- Plant propagation
- Nursery applications
- Misting systems
- Short-burst irrigation
- Garden watering systems
Holman specifically describes the timer as suitable for misting kits, vertical gardens, greenhouses and systems requiring multiple starts with a delay function.
What's Included
- 1 × Holman CO1609 Misting Tap Timer
- 1 × Universal Tap Adaptor
- 1 × 12mm Snap-on Connector
- 1 × User Manual
9V battery is not included.
Important Installation Information
The CO1609 has an operating pressure range of 100–600 kPa. Holman recommends using a pressure reducer where appropriate. The timer should also not be used in freezing conditions and has a minimum working temperature of 3°C.
