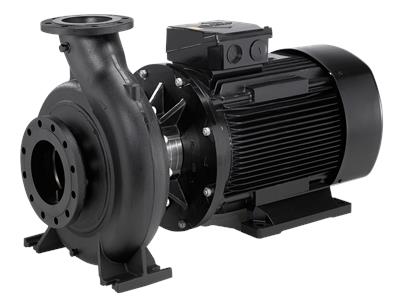

Grundfos NB 32-160.1 2-Polle NB : Close Coupled End-Suction Pump (EN 733)
$3,196.00
Tax included.
Shipping calculated at checkout.
Product Description
NB: with fixed speed motor.
NBE: variable speed motor, with built-in frequency converter - available on request
End-suction close-coupled pumps according to EN 733
Specification:
Ambient temperature : 0°C to +40°C
Liquid temperature : Clean water / Glycol: -25°C to +120°C
Shaft seal : Clean water / Glycol: BQQE (Rubber bellows seal / Silicon carbide / Silicon carbide / EPDM) - Others on request
Supply voltage : Up to 3 kW - 3 x 220-240 Volt D/380-415 Volt Y 50 Hz
From 4 kW to 5.5 kW - 3 x 380-415 Volt D 50 Hz
From 7.5 kW - 3 x 380-415 Volt D/660-690 Volt Y 50 Hz
Efficiency class : IE3
Enclosure class : IP55
Material : Cast iron housing / Bronze impeller / Stainless steel AISI 304 shaft / Brass wear ring
Connections : DIN Flange
Base Plate : Available on request - refer to Page 4.33 Variable Speed Option: Available on request
Motor Speed : 2900 rpm
Warranty : 2 Years
| Inlet | Outlet | P2 [kW] | PN [bar] |
| DN 50 | DN 32 | 1.50 | 16 |
| 2.20 | 16 | ||
| 3.00 | 16 | ||
| 4.00 | 16 |
