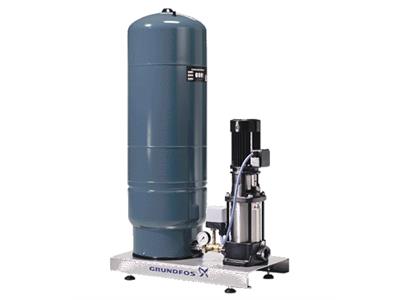

Grundfos Hydro Solo-S CR3 -3 Phase Fixed Speed Pressure Booster Set With One Vertical Multistage CR Pump
$4,679.00
Tax included.
Shipping calculated at checkout.
Product Description
Ambient temperature : From 0°C to +40°C
Liquid temperature : From 0°C to +60°C
Mains supply : 1~ is 1 x 200-240 Volt N, PE 50 Hz, 3~ is 3 x 380-415 Volt, PE 50 Hz
Base Plate : Stainless steel AISI 304
Manifold : Stainless steel AISI 316
Valving : Isolation valve and non-return valve
Tank : Included in the scope of supply
Includes : Discharge pressure switch & pressure gauge
Pump mechanical seal : HQQE (Silicon Carbide / Silicon Carbide / EPDM)
Enclosure class : IP 55
Motor efficiency : IE3
Note : P2 is nominal motor power
Warranty : 2 Years
The product image shown is for illustration purpose only
| Inlet | Outlet | Tank Vol. [L] | P2 [kW] |
| 1 phase | |||
| Rp 1 1/4" | Rp 1 1/4" | 80 PN10 | 0.55 |
| 80 PN10 | 0.75 | ||
| 80 PN10 | 0.75 | ||
| 80 PN10 | 0.75 | ||
| 80 PN10 | 1.10 | ||
| 80 PN10 | 1.10 | ||
| 80 PN10 | 1.10 | ||
| 80 PN10 | 1.10 | ||
| 80 PN16 | 1.50 | ||
| 80 PN16 | 1.50 | ||
| 80 PN16 | 2.20 | ||
| 3 phase | |||
| Rp 1 1/4" | Rp 1 1/4" | 80 PN10 | 0.75 |
| 80 PN10 | 1.10 | ||
| 80 PN10 | 1.10 | ||
| 80 PN10 | 1.10 | ||
| 80 PN10 | 1.10 | ||
| 80 PN16 | 1.50 | ||
| 80 PN16 | 1.50 | ||
| 80 PN16 | 2.20 |
