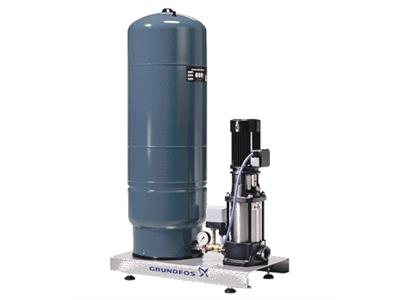

Grundfos Hydro Solo-S CR10-3 Phase Fixed Speed Pressure Booster Set With One Vertical Multistage CR Pump
$5,876.00
Tax included.
Shipping calculated at checkout.
Product Description
Ambient temperature: From 0°C to +40°C
Liquid temperature: From 0°C to +60°C
Mains supply: 1~ is 1 x 200-240 Volt N, PE 50 Hz, 3~ is 3 x 380-415 Volt, PE 50 Hz
Base Plate: Stainless steel AISI 304
Manifold: Stainless steel AISI 316
Valving: Isolation valve and non-return valve
Tank: Included in the scope of supply
Includes: Discharge pressure switch and pressure gauge
Pump mechanical seal: HQQE (Silicon Carbide / Silicon Carbide / EPDM)
Enclosure class: IP 55
Motor efficiency: IE3
Note: P2 is nominal motor power
Warranty : 2 Years
The product image shown is for illustration purpose only
| Inlet | Outlet | Tank Vol. [L] | P2 [kW] |
| 1 phase | |||
| Rp 1 1/2" | Rp 1 1/2" | 80 PN10 | 1.50 |
| 130 PN10 | 1.50 | ||
| 80 PN10 | 2.20 | ||
| 130 PN10 | 2.20 | ||
| 80 PN10 | 2.20 | ||
| 130 PN10 | 2.20 | ||
| 3 phase | |||
| Rp 1 1/2" | Rp 1 1/2" | 80 PN10 | 1.50 |
| 130 PN10 | 1.50 | ||
| 80 PN10 | 2.20 | ||
| 130 PN10 | 2.20 | ||
| 80 PN10 | 2.20 | ||
| 130 PN10 | 2.20 | ||
| 80 PN10 | 3.00 | ||
| 130 PN10 | 3.00 | ||
| 80 PN16 | 4.00 |
