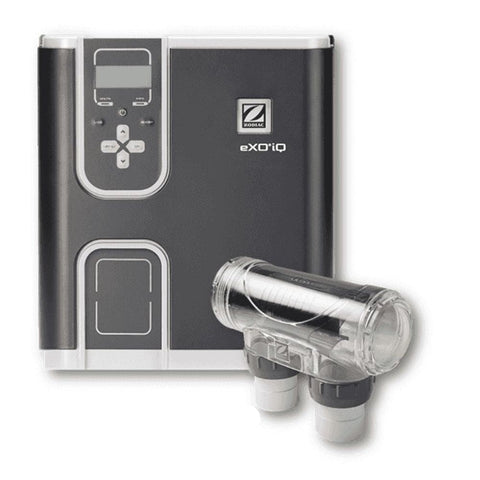

Zodiac Iq Chlorinator Exo Large/Exo Mid
Product Description
Description
The chlorinator that knows best
The next generation of premium chlorinators is here. Packed with a range of fantastic new features with upgrades available for ORP and pH management, the all-new eXO® iQ has all the features of the eXO® with the option of connecting to our popular iAquaLink system for increased convenience and control.
- iAquaLink technology
- Long-life RP cell
- Smart temperature sensor
- Variable speed pump control
- Viable with saltwater and mineral salt pools
- Upgrades available for pH and ORP management
Specifications
|
Model No. |
eXO® iQ Mid |
eXO® iQ Large |
|
Recommended pool size '000L (in mild climate) |
75 |
100 |
|
Nominal chlorine production |
25 g/h |
35 g/h |
|
Operating mode(s) |
Normal = adjustable by 10% increments from 0% - 100%. Low Mode = adjustable range 0 to 30%. Boost Mode = continuous 100% for 24hrs. |
Normal = adjustable by 10% increments from 0% - 100%. Low Mode = adjustable range 0 to 30%. Boost Mode = continuous 100% for 24hrs. |
|
Equipment control |
Filter pump: Any single speed pump or Zodiac® variable speed pump. Lights: Any single colour light or any Zodiac/Jandy sequence Muliticolour light (note will require additional relay box part number WW000222) |
Filter pump: Any single speed pump or Zodiac® variable speed pump. Lights: Any single colour light or any Zodiac/Jandy sequence Muliticolour light (note will require additional relay box part number WW000222) |
|
Salt level (recommended - min.) |
4000ppm recommended (minimum - 3300ppm) |
4000ppm recommended (minimum - 3300ppm) |
|
Cell protection |
Temperature sensor controls chlorine output in cold water conditions assiting to protect cell against excessive wear and tear. |
Temperature sensor controls chlorine output in cold water conditions assiting to protect cell against excessive wear and tear. |
|
Warning indicators |
"Low salt"" indicator light: Reduced production to protect the electrode. No flow message: Production is interrupted as long as conditions are not ideal. |
"Low salt"" indicator light: Reduced production to protect the electrode. No flow message: Production is interrupted as long as conditions are not ideal. |
|
Power supply |
196 W / 110-240 VAC / 50-60 Hz |
196 W / 110-240 VAC / 50-60 Hz |
|
Dimensions |
Power pack: H-370mm x W-320mm x D-100mm RP Cell: H-160mm x W-320mm x D-110mm |
Power pack: H-370mm x W-320mm x D-100mm RP Cell: H-160mm x W-320mm x D-110 |
Features
Long-life RP cell
These upgraded automatic cleaning cell plates have an ultra-long life, combined with smart tech in the chlorine production that will provide years of performance.
Multi-colour light control
Control your pool light(s) directly from the chlorinator (or your smart phone with iAquaLink). This feature requires additional relay box to connect. Ask your nearest dealer for more information.
Salt or mineral switcher
Use normal pool salt or mineral salts to create chlorine and keep your pool water healthy and sanitised at all times.
Pool cover mode
Allows you to connect an automatic pool cover that will automatically drop the output to your desired level without having to do a thing.
iAquaLink enabled
Features a built-in WiFi chip that allows you to monitor and control remotely, for complete control at your fingertips anytime, anywhere.
Smart temperature sensor
Automatically regulates output in cold water which prevents excessive wear and tear on your cell, helping to reduce costs.
Variable speed pump control
Provides greater control over pump speed and helps reduce energy consumption. The eXO can communicate to RS485 enabled pumps.
The product image shown is for illustration purpose only
